DESCRIPTION
RGB Full-Color LED Matrix Panel, 2.5mm Pitch, 64×64 Pixels, Adjustable Brightness64×64 RGB LED Matrix Panel
4096 Individual RGB LEDs, 2.5mm Pitch
Supports Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino...
Features At A Glance
By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?
- 4096 individual RGB LEDs, full-color display, adjustable brightness
- 64×64 pixels, 2.5mm pitch, allows displaying text, colorful image, or animation
- 160×160mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
- Onboard two HUB75 header, one for controller data input, one for output, chain support
- Provides open source development resources (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)
PCB silkscreen and layout may have small differences from batch to batch, but the software is power inputGNDGroundR1R higher bit dataR2R lower bit dataG1G higher bit dataG2G lower bit dataB1B higher bit dataB2B lower bit dataAA line selectionBB line selectionCC line selectionDD line selectionEE line selectionCLKclock inputLAT/STBlatch pinOEoutput enable
Chainable Design
Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel
Via HUB75 Input/Output Header
Each RGB LED matrix panel requires a standalone 5V/4A or above power supply, when they're chained to display.Usage Scenarios
DIY Maker Desktop Or Wall Mount Display, Signboard, Environment Monitor...
Product ShowDimensionsResources & ServicesWIKI:[link removed by ]
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Selection GuidePART NUMBERPIXELSPITCHVIEWING ANGLEPOWER scan256×128-

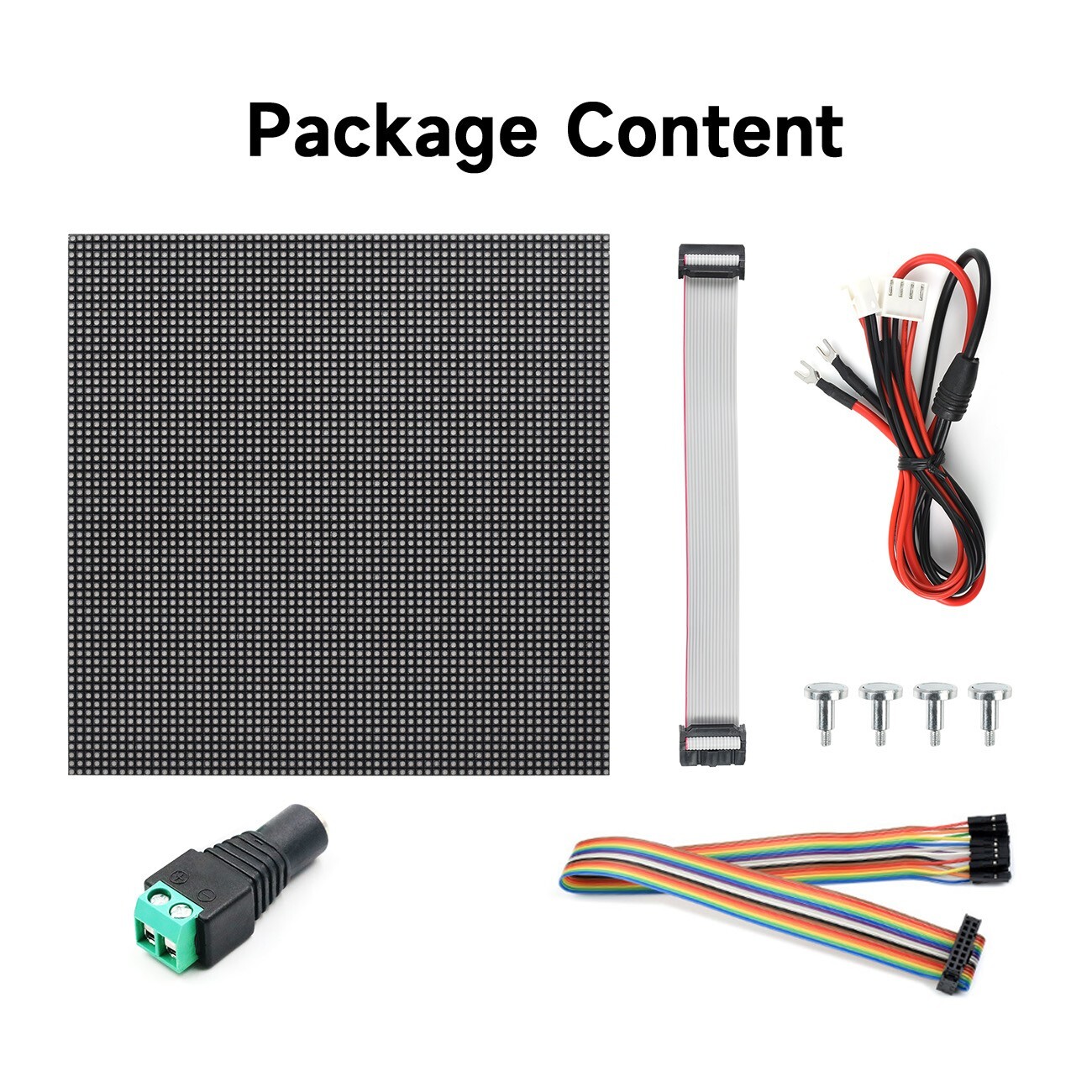

PACKAGE CONTENT
Weight:0.259 kg
- RGB-Matrix-P2.5-64x64 LED matrix and accessories x1
- Power supply terminal adapter x1
- 16P wire ~30cm x1
It is recommended to used with a5V 4A power supply
