DataPath VisionRGB-E1S 139CDGC139CSingle Channel RGB/DVI/HD Video Capture Card

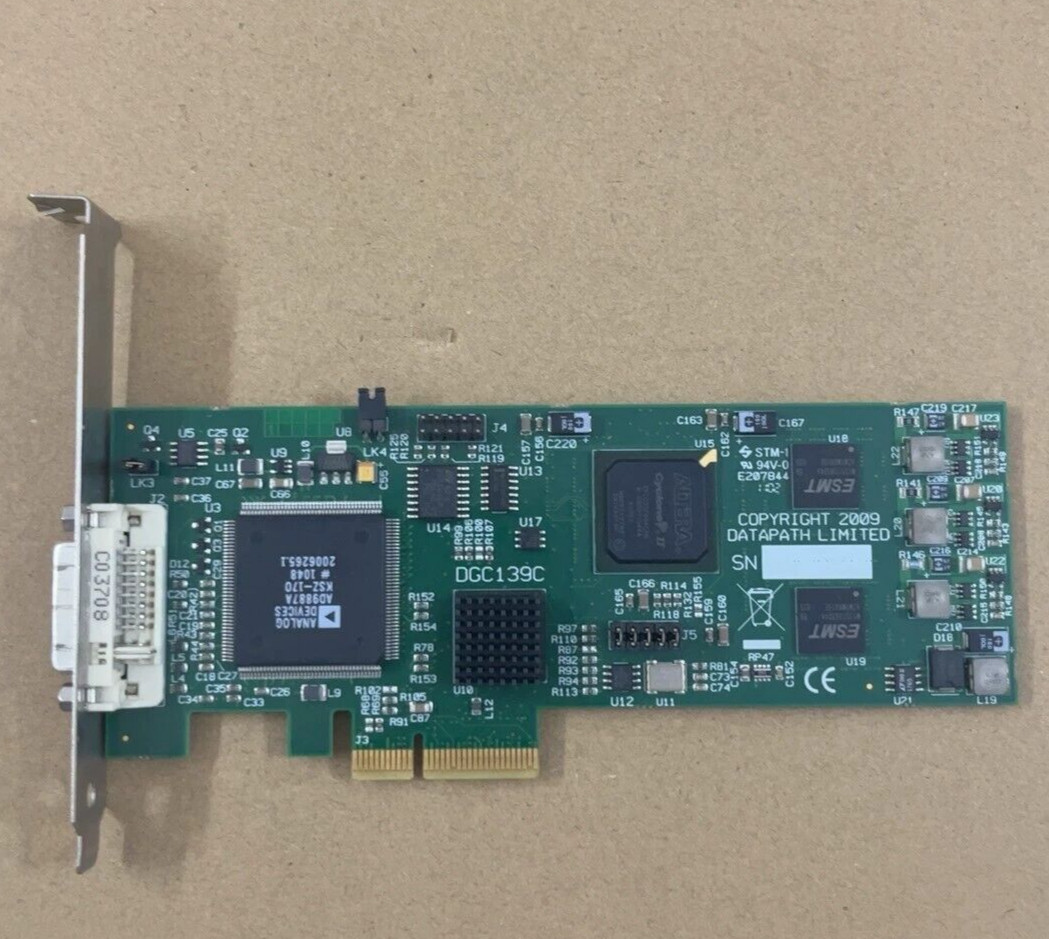

DATAPATH VisionRGB-E1S DVI Digital Capture Card 139CDGC139C
Condition: Used, pulled from working environment. Card only, does not include any manuals, cables or accessories.
The VisionRGB-E1S DVI/RGB/HD Video Capture Card from DATAPATH is a single channel PCI Express video capture card supporting up to 1920x1080 DVI or 2048x1536 analog resolution. The card captures the Analog/ DVI data and triple buffers it into on-board storage. This data is then copied using DMA to the host system for display, storage or streaming. When a Datapath graphics card is used, the VisionRGB-E1S transfers the data directly to the graphics card, thereby increasing performance. The VisionRGB-E1S sends the relevant portions of each captured image to each display channel and instructs each channel to use its graphics engine to render the data. This fully utilizes the hardware and increases performance.
When the RGB/DVI data is displayed on a non Datapath graphics card, the VisionRGB-E1S sends the data to system memory or direct to the graphics card, dependent on the software used for display.
The VisionRGB-E1S video capture card is supplied with a software application for configuring the timing and format of the input sources and displaying the data. Simply connect your external DVI or Analog source into the card, run the VisionRGB-E1S application to automatically detect the video source format and display the captured video in a window on your desktop.
The VisionRGB-E1S is a suitable solution for applications that require the capture of analog or DVI sources in real time, such as viewing Analog or DVI sources from PCs, MACs, industrial/medical equipment, cameras and other video equipment, streaming video applications, and video wall controllers.
Four lane PCI Express interface with a maximum data rate of 650MB/sMaximum analog RGB video capture resolution of 2048 x 1536 x 24 bitHD modes using the supplied DVI/Component adapter or DVI/HDMI adapter, HDCP not supportedOn card processor for real time mode and sync detectionSupport for multiple capture cards allowing up to 32 capture channels (32 cards)High quality down scalingSupport for YUV 4:2:2, RGB 5:5:5, 5:6:5 and 8:8:8 video formatsHigh performance DMA to system memory or direct to graphics memory with scatter gatherSupport for separate H/V sync, Composite sync, or Sync on Green16 cropping windows per capture channelDirect DMA driver software and streaming driverIncludes WDM streaming drivers and the Datapath Vision application softwareDirect WDM streaming driver supports the following applications, to encode, record and stream video over networks or the internet:Dataton WatchOutMicrosoft Expression EncoderVideoLAN VLCNorPix StreamPixVitualDubAdobe Flash EncoderVidBlasterAMCap and other DirectShow compatible softwareFully integrated with the Datapath Wall Control-red software for video wall applicationsOptimized for operation with the Datapath range of graphics cardsSupport for Windows XP, Vista, Server 2003, Server 2008, Windows 7, Windows 8, and LinuxDatapath SDK included for software developers
