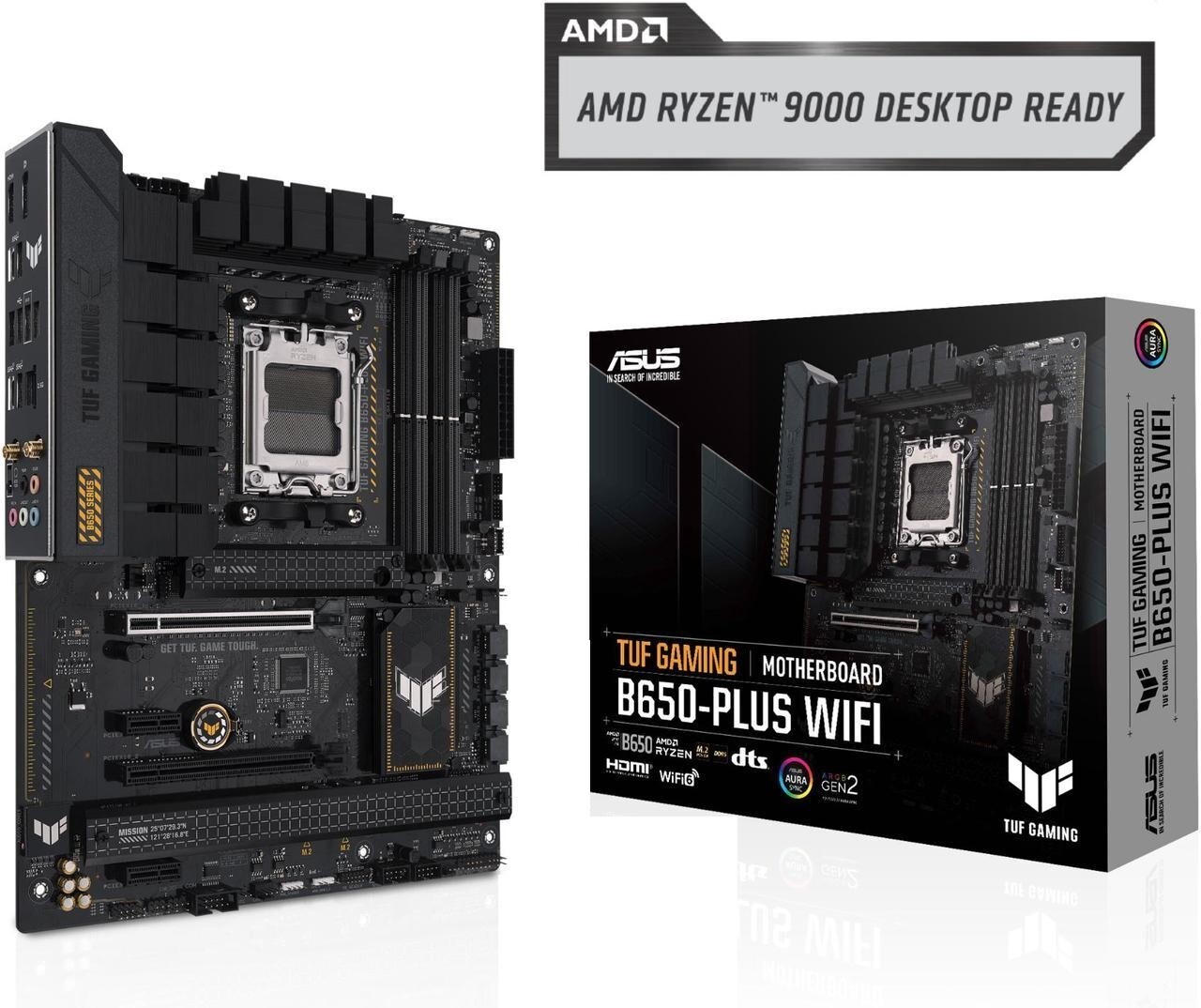

ASUS manufacturer refurbished unit, comes with SATA cable, I/O shield, Wi-Fi antenna, M.2 screws, and M.2 standoff only, repacked with ASUS white/brown service box.
ModelBrandASUSSeriesTUFModelTUF GAMING B650-PLUS WIFIPart Number90MB1BZ0-M0AAY0Supported CPUCPU Socket TypeAM5CPU TypeSupports AMD Ryzen 7000 Series Desktop Processors** Refer to www.asus.com for CPU support list.ChipsetsChipsetAMD B650MemoryNumber of Memory Slots4x288pin (DDR5)Memory StandardDDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC functionMaximum Memory Supported256GBChannel SupportedDual ChannelECC SupportedNon-ECCBuffer SupportedUn-bufferedMemory FeatureSupports AMD EXTended Profiles for Overclocking (EXPO)
OptiMem IIExpansion SlotsPCI Express 4.0 x16AMD Ryzen 7000 Series Desktop Processors*
1 x PCIe 4.0/3.0 x16 slot(s)AMD B650 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)* Please check PCIe bifurcation table on ASUS support sitePCI Express x12 x PCIe 4.0/3.0 x1 slotsStorage DevicesSATA 6Gb/s4 x SATA 6Gb/sM.2AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated.SATA RAIDAMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10Onboard AudioAudio ChannelsRealtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Power pre-regulator reduces power input noise to ensure consistent performance
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Onboard LANMax LAN Speed1 x Realtek 2.5Gb Ethernet
TUF LANGuardWireless LANWi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency bandBluetoothBluetooth v5.2Rear Panel PortsBack I/O Ports1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C)
4 x USB 2.0 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack buttonInternal I/O ConnectorsOnboard USB1 x USB 3.2 Gen 1 connector (support(s) USB Type-C )
1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 portsOther ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s portsMiscellaneous
3 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt headerPhysical SpecForm FactorATXDimensions (W x L)12.0" x 9.6"Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connectorWindows 11 CompatibilityWindows 11SupportedFeaturesFeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Aura RGB header(s)
- Addressable Gen 2 header(s)
