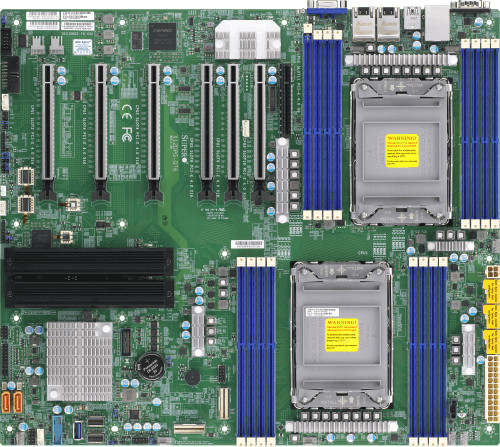

(For 4 GPU)Supermicro X12DPG-QT6+Intel Xeon Platinum 8352V 36C/72T + RAM

Price: CN $6039.88

Package include:

1XSupermicro X12DPG-QT6

2xintel Xeon Platinum 8352V 36C/72T 2.1GHZ

Product SKUs

MBD-X12DPG-QT6

Physical Stats

Form Factor

·Proprietary

Dimension

·15.12" x 13.2" (38.43cm x 33.53cm)

Processor

CPU

·3rd Gen Intel® Xeon® Scalable processors

·Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s

Core

·Up to 40 cores

System Memory

Memory Capacity

·16 DIMM slots

·Up to 6TB Intel® Optane™ Persistent Memory 200 Series

·Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz

·Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode.

Memory Type

·3200/2933/2666 MT/s ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)

DIMM Sizes

·16GB, 32GB, 64GB, 128GB, 256GB

·LRDIMM: 128GB, 256GB

·RDIMM: 64GB, 128GB

Memory Voltage

·1.2V

Error Detection

·Corrects single-bit errors

·Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset

·Intel® C621A

SATA

·Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

·ASPEED AST2600 BMC

Audio

·7.1 HD Audio Header

Graphics

·1 ASPEED AST2600 BMC port(s)

Network Controllers

·Dual LAN with Intel® X550 10GBase-T Ethernet Controller

Input / Output

SATA

·10 SATA3 (6Gbps) port(s)

USB

·10 USB 3.1 Gen1 port(s) (1 via header; 1 type A; 3 rear type A; 1 rear type C; 4 rear)

·2 USB 2.0 port(s) (2 via header)

Video Output

·1 VGA D-Sub Connector port(s)

Serial Port

·2 COM Port(s) (1 header; 1 rear)

DOM

·2 SuperDOM(Disk on Module) port with build power

TPM

·1 TPM Header

Expansion Slots

PCIe

·1 PCIe 4.0 x8,

·6 PCIe 4.0 x16

M.2

·M.2 Interface: 2 PCIe 4.0 x4, RAID 0 & 1

·Form Factor: 2242/2260/2280/22110

·Key: M-Key

System BIOS

BIOS Type

·AMI UEFI

BIOS Features

·Plug and Play (PnP)

·ACPI 1.0 / 2.0 / 3.0 / 4.0

·USB Keyboard support

·SMBIOS 2.7.1

·UEFI 2.3.1

Management

Software

·Redfish API,Supermicro Server Manager (SSM),Supermicro Power Manager (SPM),Supermicro Update Manager (SUM),SuperDoctor® 5,Super Diagnostics Offline ,KVM with dedicated LAN ,IPMI 2.0

Power Configurations

·ACPI Power Management

Security

Hardware

·Trusted Platform Module (TPM) 2.0

PC Health Monitoring

Voltage

·VBAT, Supports system management utility, HT, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, 5+1 Phase-switching voltage regulator, 10 -fan status

LED

·UID/Remote UID

·Suspend static indicator LED

·CPU / System Overheat LED

FAN

·10x 4-pin fan headers (up to 10 fans)

·Status monitoring for speed control

·Pulse Width Modulated (PWM) fan connectors

Other Features

·RoHS

·Node Manager Support

·CPU thermal trip support for processor protection
