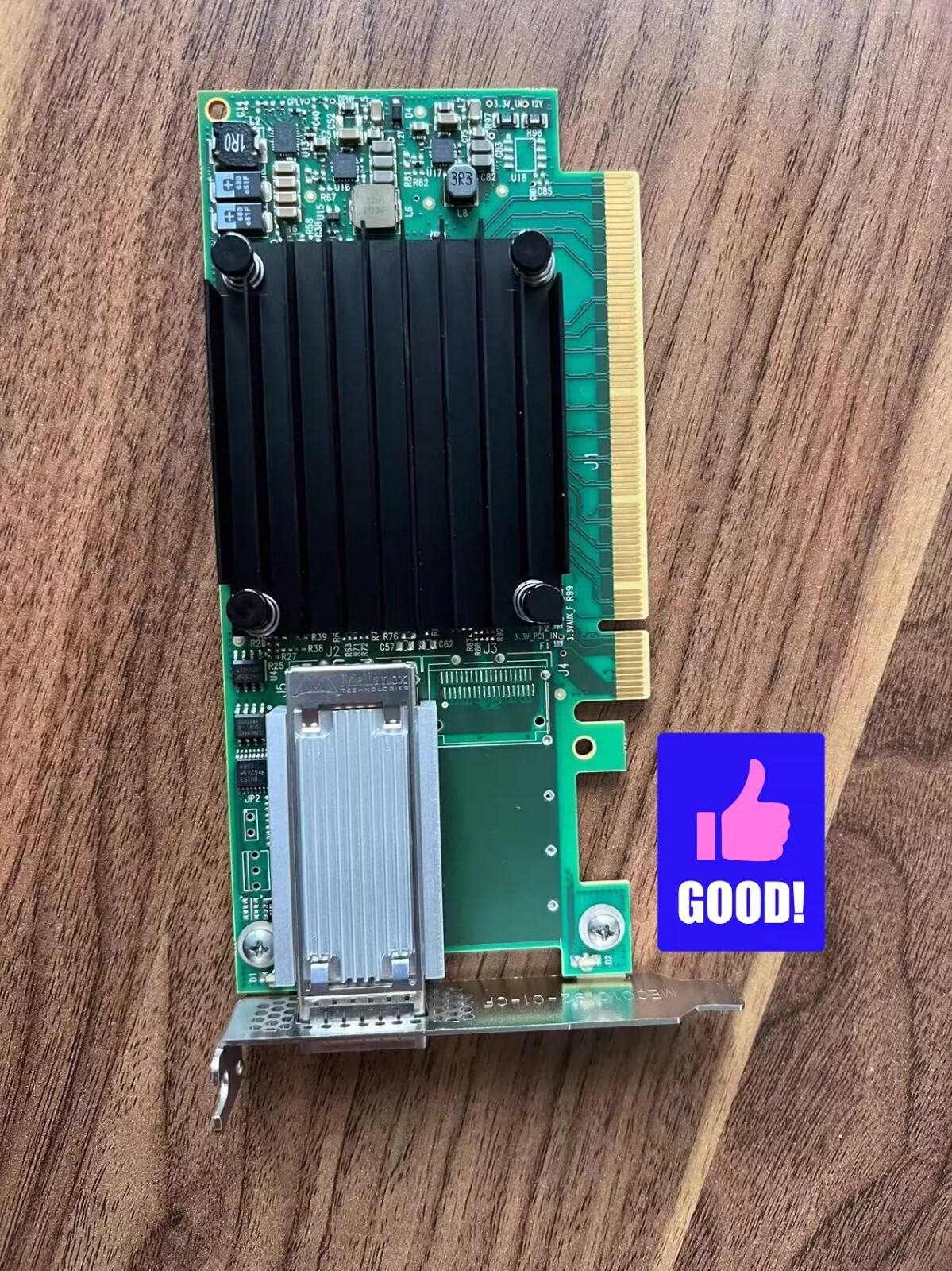

Fujitsu MELLANOX MCX455A-ECAT CX-4 1 PORT EDR 100GB IB QSFP28 NETWORK CARD CA05950-1582FujitsuMELLANOXMCX455A-FCAT Specifications
Physical
Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) ā low profile
Connector: Single QSFP28 InfiniBand (copper and optical)
Protocol Support
InfiniBand: IBTA v1.3Auto-Negotiationa : 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane) port
Ethernet: 56GBASE-R4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII
Data Rate:
InfiniBand
SDR/DDR/QDR/FDR/EDR
Ethernet
1/10/25/40/50/100 Gb/s
PCI Express Gen3: SERDES @ 8.0GT/s, 16 lanes (2.0 and 1.1 compatible)
Power and Airflow
Voltage: 12V, 3.3V
Power
Cable Type
FDR/56GbE
Typical Power
Passive Cables
14W
Maximum Power
Passive Cables
16.6W
1.5W Active Cables
18.3W
2.5W Active Cables
19.4W
Maximum power available through QSFP28 port: 3.5W
Airflow (LFM)
Heatsink to Port
Port to Heatsink
Passive Cables
Active 3.5W Cables
Passive Cables
Active 3.5W Cables
400LFM
700LFM
400LFM
600LFM
Environmental
Temperature
Operational
0Ā°C to 55Ā°C
Non-operational
-40Ā°C to 70Ā°C
Humidity
Operational
10% to 85% relative humidity
Non-operational
10% to 90% relative humidity
Altitude (Operational)
3050m
Regulatory
Safety
CB / cTUVus / CE
EMC
CE / FCC / VCCI / ICES / RCM
RoHS
RoHS compliant
