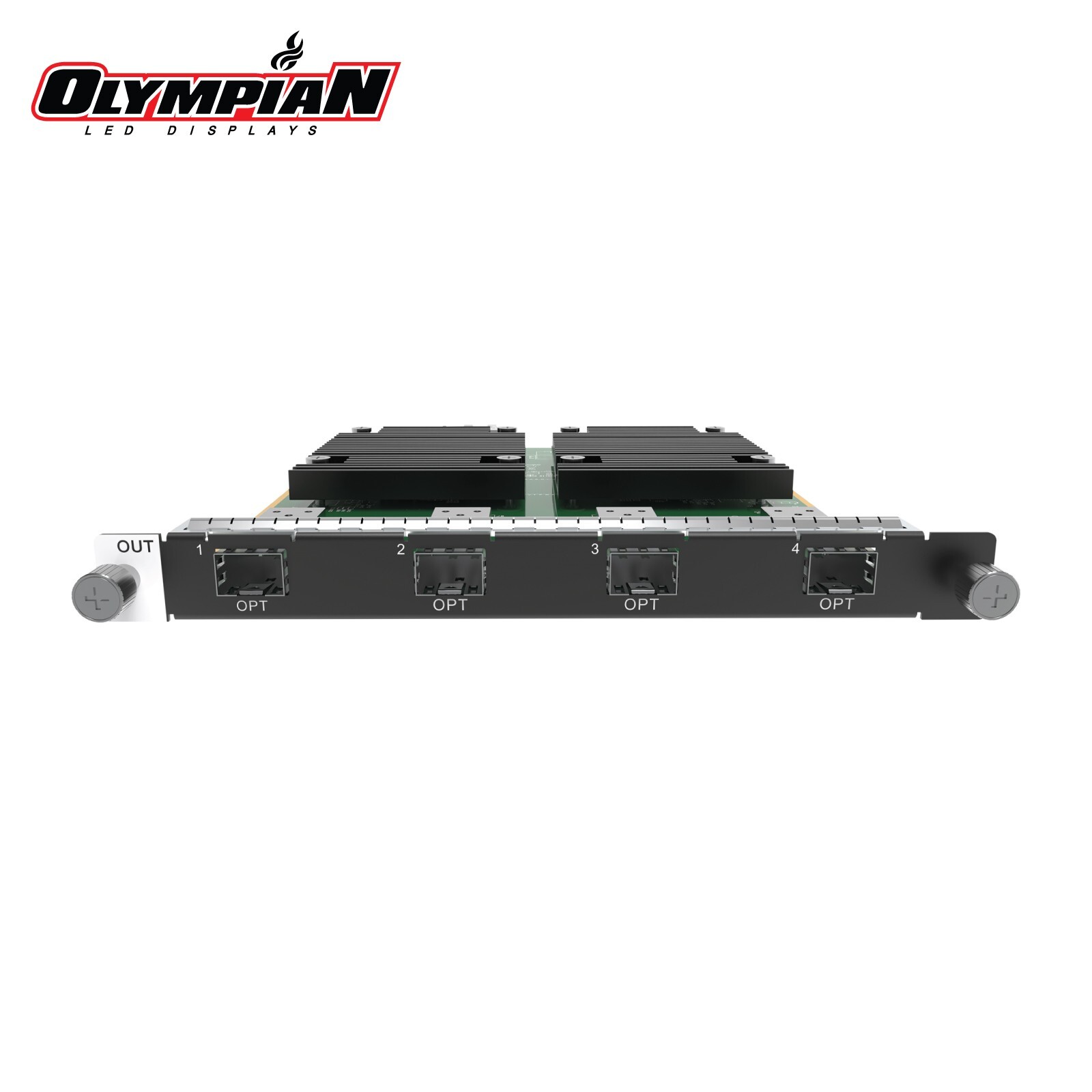

This card can handle up to 20,800,000 pixels, with a maximum width and height of 16,384 pixels each. It supports independent, copy, and backup modes, and accommodates both Single Mode (SM) and Multi-Mode (MM) optical modules, offering a transmission distance of up to 10 km.

• Pixel Capacity: Up to 20,800,000 pixels (16,384 × 16,384 pixels max).
• Output Modes:
  • Independent: All four OPT ports are used for output, each with the same loading capacity equivalent to 8 Ethernet ports.
  • Copy: OPT 1 and OPT 2 are used for the main output, with OPT 3 copying the output of OPT 1, and OPT 4 copying the output of OPT 2.
  • Backup: OPT 1 and OPT 2 are used for the main output, with OPT 3 serving as the backup for OPT 1, and OPT 4 serving as the backup for OPT 2.
• Optical Module Support:
  • Supports 8-bit and 10-bit outputs.
  • The optical module supports SFP+ encapsulation. Compatible module specifications include:
    • 10G SFP+ SR optical module
    • 10G SFP+ LRM optical module
    • 10G SFP+ LR optical module
    • 10G SFP+ ER optical module
    • 10G SFP+ ZR optical module
    • SFP+ CWDM optical module
    • SFP+ DWDM optical module
    • SFP+ offerI optical Information:
      • Included Modules: Four 10G SFP+ LR optical modules are included with the card and pre-installed in the OPT ports.
      • Screen Loading: When the screen is loaded by the H_4xfiber sending card, the preset transition effect supports "cut" only.
      • Software Requirement: NovaLCT V5.4.4.6.CRM7401 is required for screen configurations when the screen is loaded by the H_4xfiber sending card.
