Description

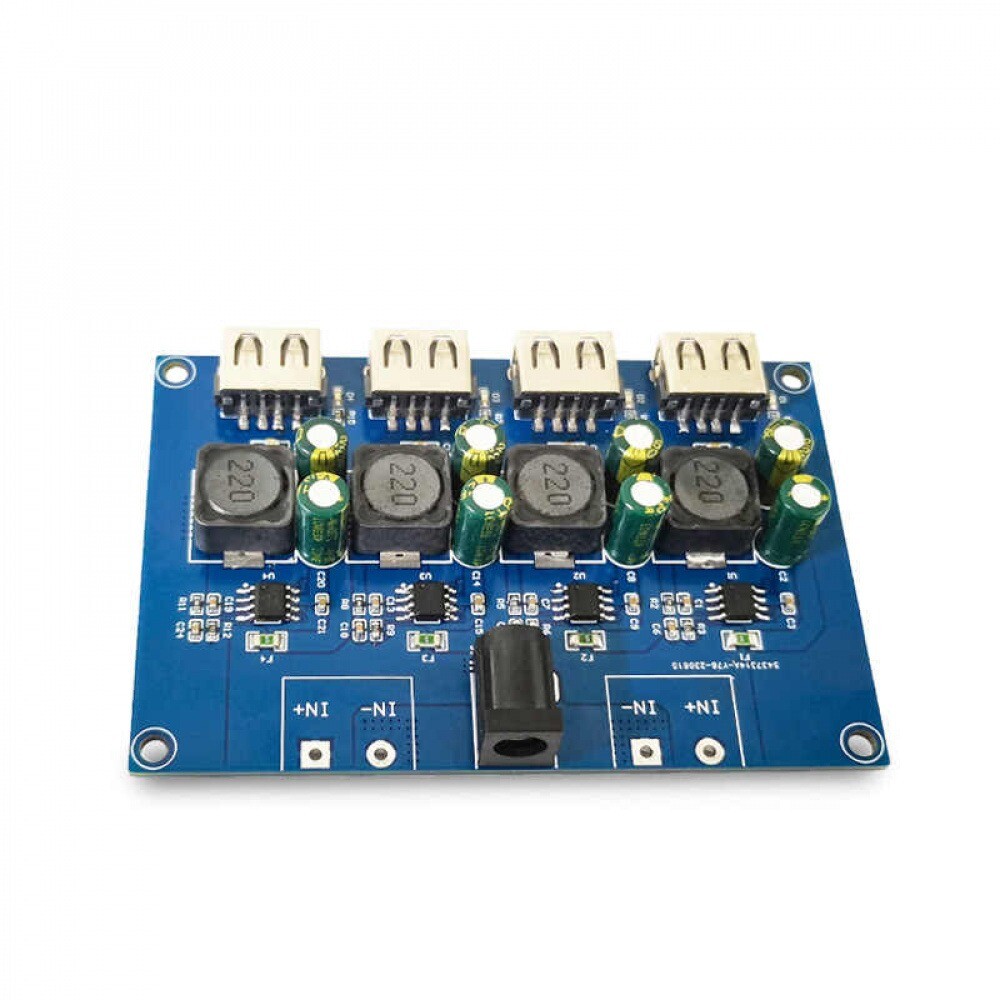

IP6505 4 Channel QC3.0 QC2.0 USB DC-DC Buck Converter Charging Step Down Module 5-32V 9V 12V 24V to Fast Quick Charger Module
The power supply voltage range is 5-32V, with IP6505 built-in power MOS. The input voltage range is 4.5V to 32V, and the output voltage range is 3V to 12V. It can provide a maximum output power of 24W and can automatically adjust the output voltage and current according to the recognized fast charging protocol. Typical output voltage and current are: 4V @ 3.6A, [email protected] , 7V@3A , [email protected] , 12V@2A . The voltage reduction conversion efficiency of IP6505 is as high as Made of high-quality materials with stable performance;
2.4 channels can simultaneously output up to 24W per channel;
3. USB Type-A output supports multiple fast charging protocols;
4. Supports an input voltage range of 5-32V, with a maximum output voltage of 12V 2A;
5. Support multiple protocols such as FCP, SCP, AFC, SFCP, BC1.2, voltage range: 5-32V
Maximum output voltage: 12V/2A
Power: 24W
Product size: 90*60mm
Instructions for use:
Power can be supplied through a 5.5X2.1MM power socket, or connected to the power supply by welding wires.
The power supply voltage range is 5-32V.
After inserting the power supply, the blue indicator light lights up to insert the electrical device.
Supports BC1.2, For Apple, and For Samsung protocols
Supports Qualcomm QC2.0 and QC3.0
Supports MTK PE1.1/PE2.0
Supports For FHuawei Fast Charging Protocol FCP, SCP
Supports For Samsung Fast Charging Protocol AFC
Support for Spreadtrum Fast Charging Protocol SFCP
Typical output voltage and current are: 4V @ 3.6A, [email protected] , 7V@3A , [email protected] , 12V@2A
Measured output 5V, 3.4A
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-1cm differences due to manual measurement.
Package Included:
