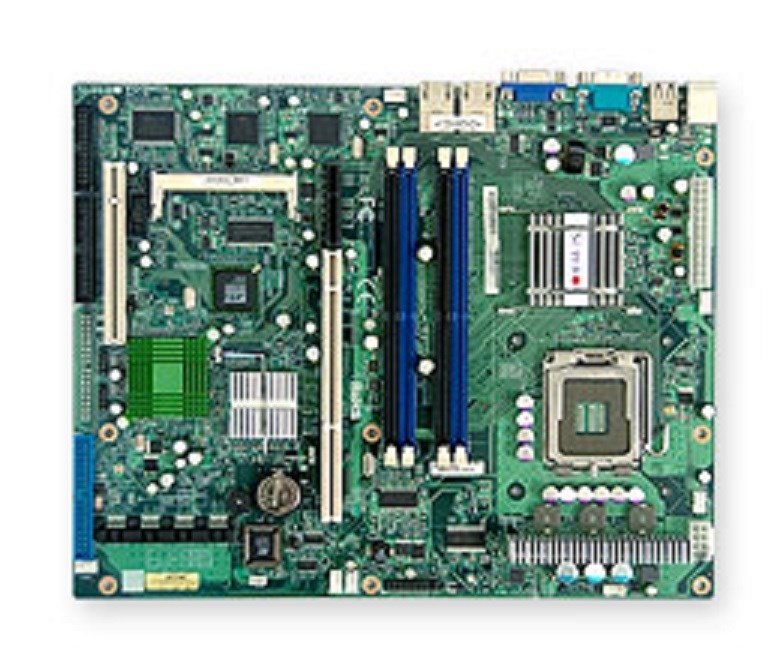

Product SKUsMBD-PDSMi+-B

• PDSMi+ (Bulk Pack)

Physical StatsForm Factor

• ATX

Dimensions

• 12.0" width x 9.6 " length , (30.5cm x 24.4cm), 6 layer PCB

Processor/CacheCPU

• Single LGA775 ZIF Socket
• Supports a Quad-Core Intel® Xeon® 3200 series processor
• Supports a Dual-Core Intel® Xeon® 3000 series processor
• Supports a Quad-Core Intel® Core™2 Extreme series processor
• Supports an Intel® Core™2 Quad series processor
• Supports an Intel® Core™2 Duo series processor
• Supports an Intel® Pentium® processor E2000 series
• Supports a Dual-Core Intel® Pentium® D processor
• Supports an Intel® Pentium® Extreme Edition processor
• Supports an Intel® Pentium® 4 processor
• Supports an Intel® Celeron® processor E1000 series
• Supports an Intel® Celeron® processor 400 series
• NOTE: This board DOES NOT support Q9000, E8000, E7000, E5000 series or 45nm processor

System Bus

• 1066 / 800 / 533 MHz system bus

System MemoryMemory Capacity

• Four 240-pin DIMM sockets
• Supports up to 8 GB of memory (Single / Dual Channel)

Memory Type

• DDR2 667/533MHz unbuffered, ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs

DIMM Sizes

• 256 MB, 512 MB, 1 GB, 2GB

Memory Voltage

• 1.8V only

On-Board DevicesChipset

• Intel 3000 (Mukilteo-2) chipset
• ICH7R + PXH-V + Intel® 82573V + Intel® 82573L

Serial ATA

• Intel® ICH7R SATA2 (3 Gbps) controller built-in
• Intel:
  RAID 0, 1, 5, 10 support (Windows Only)
• Adaptec:
  RAID 0 (Two, three, four drives only)
  RAID 1 (Two hard drives only)

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• (Optional: AOC-IPMI20-E)

Network Controllers

• 1x Intel® 82573V Gigabit PCI-Express Ethernet
• 1x Intel® 82573L Gigabit PCI-Express Ethernet
• Supports 10Base-T, 100Base-TX, 1000BASE-T, RJ45 output

VGA

• On-board ATI ES1000 16MB graphics

Super I/O

• Winbond 83627EHG chip

Clock Generator

• CK410

Input / OutputSerial ATA

• Four Serial ATA ports (3 Gbps performance)
• Four SATA hard drives supported

IDE

• One EIDE channel supports up to two UDMA IDE devices
• IDE Master / Slave 2 ports
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
• White Connector for Compact Flash (CF, 40-pin IDE connector) card only

Floppy

• 1 Floppy controller; 1.44 MB

LAN

• 2x RJ45 LAN ports

USB

• Up to 6x USB 2.0 compliant / 1.1 compatible ports
• 4x Internal USB headers
• 2x Rear USB ports

VGA

• 1x VGA Port

Keyboard / Mouse

• PS/2 keyboard and mouse ports

Serial Ports

• 1x Fast UART 16550 serial port
• 1x Header

Parallel Port

• 1x ECP / EEP Parallel Header

Chassis ( Optimized for PDSMi+ )4U / Tower

• SC743i-645

Important Note

• To ensure system stability, a ATX power supply WITH 4A (minimum) on 5V Standby is required
• Only Supermicro 1U chassis is recommended for 1U Building Block Solutions

Expansion SlotsUniversal Slot

• 1 (x8) PCI-Express Slot (via Riser Card) OR
• 1x 64-bit PCI-X 133MHz Slot (via Riser Card)

PCI

• 1x 32-bit 33MHz PCI (3.3V) slot

System BIOSBIOS Type

• 8Mb Flash EEPROM with Phoenix BIOS®

BIOS Features

• Plug and Play (PnP)
• DMI 2.3 support
• PCI 2.2
• ACPI 1.0
• USB Keyboard support
• SMBIOS 2.3

ManagementSoftware

• Optional IPMI (Intelligent Platform Management Interface) 2.0
• SuperDoctor® III
• Watch Dog
• NMI

Power Configurations

• ACPI/APM Power Management
• Main Switch Override Mechanism
• Wake-On-Ring (WOR) header
• Wake-On-LAN (WOL) header
• Power-on mode control for AC power loss recovery
• Internal / External Modem Rign-on

PC Health MonitoringCPU

• Monitors for CPU Cores (+1.8V, +3.3V, +5, ±12V, +3.3V/+5V Standby, VBAT)
• CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
• Adjustable CPU clock frequency ratio

FAN

• Fan Speed Control
• Total of six 4-pin fan headers
• 6x fans with tachometer monitoring
• Status monitor with firmware speed control
• Low noise fan speed control
• Status monitor for on/off control
• Support 3-pin fans (without speed control)
• Pulse Width Modulated (PWM) fan connector

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Monitor (TM2) Support

LED

• CPU / System Overheat LED
• +5V Standby Alert LED
• Suspend-state indicator LED

Other Features

• Chassis Intrusion Detection
• Chassis Intrusion Header

Operating Environment / ComplianceRoHS

• RoHS Compliant 6/6, Pb Free

Environmental Spec.

• Operating Temperature: 10°to 35°C (50°to 95°F)
• Non-operating Temperature: -40°to 70°C (-40°to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)

OS Compatibility
• Please see our OS Compatibility ChartRegulatoryFCC

• Passed to meet FCC standard requirement

Standard PackagePart MotherboardOptional Parts ListPart NumberQtyDescriptionHeat SinkSNK-P0016-1U, Pentium® D LGA775, Passive HeatsinkRiser CardCSE-RR1U-Xi
CSE-RR1U-ELi-
-1U 64-bit PCI-X Riser Card for PDSMi+ (Full height, full length)
1U Universal (SXB-E) Slot to PCI-E Slot Riser Card for PDSMi+
Note: Itemsin a Standard Bulk Package
