Description:

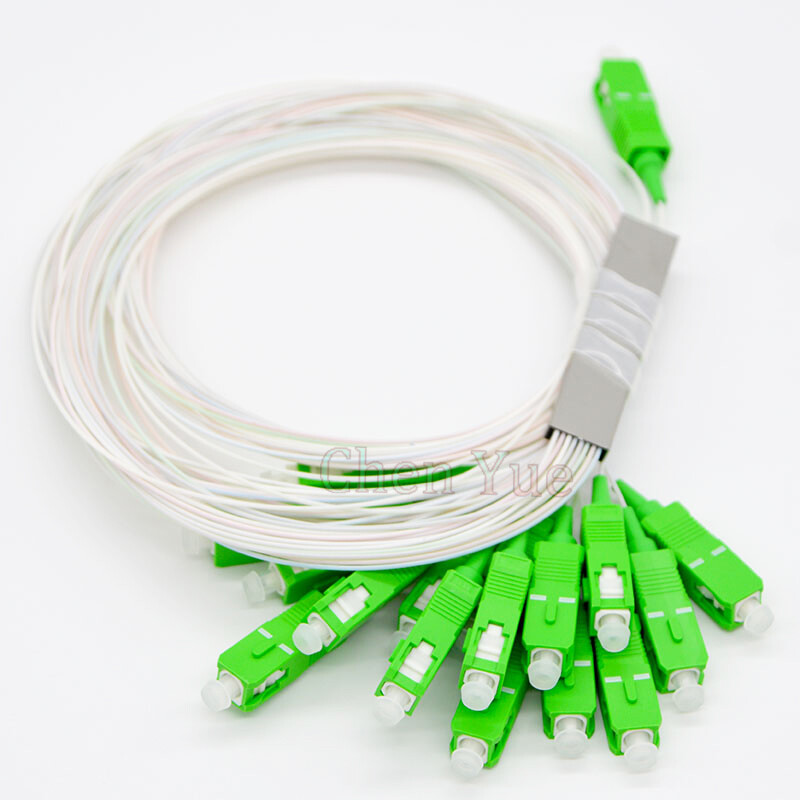

FTTH 1x16 SplitterPlanar light-wave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical wave-guide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.
Adopt high strength stainless steel, pass salt spray test
•Ferrule core is less than 0.5um
•Adopt 100% new raw material, ROHS compliance
•Low Insertion loss
•Low PDL Compact Design
•Good channel-to-channel uniformity
•Wide Operating Wavelength: from 1260nm to 1650nm
•Wide Operating Temperature: from -40℃ to 85℃
Key Features
1)Low Excess loss
2)Various Coupling Ratio
3)Environment stable
4)Single mode and multi mode available
Technical Parameters
1×16 Single Mode PLC Splitter Data Sheet
Operating Wavelength(nm)
1260-1650
Inspected Date
P/N:
1x16-PLC-0.9-1.0
S/N:
1711116001
Fiber Type
G.657A with 0.9mm lose tube
Fiber Length(m)
≥1.0
Connector Type
SC/APC
Package Dimension(mm)
60×12×4
Storage Temperature
-40~+85℃
Operating Temperature
-40~+85℃
Item
IL(dB)
PDL(dB)
RL(dB)
Wavelength(nm)
1310
1550
1310
1550
1310
1550
Spec.
MAX13.6
MAX 0.25
≥55
Port1
13.11
13.34
0.03
0.03
Pass
Pass
Port2
13.26
13.41
0.03
0.03
Pass
Pass
Port3
13.28
13.15
0.04
0.03
Pass
Pass
Port4
13.39
13.09
0.04
0.02
Pass
Pass
Port5
13.35
13.03
0.03
0.04
Pass
Pass
Port6
13.48
13.40
0.04
0.04
Pass
Pass
Port7
13.33
13.45
0.03
0.02
Pass
Pass
Port8
13.26
13.33
0.04
0.03
Pass
Pass
Port9
13.02
13.33
0.03
0.04
Pass
Pass
Port10
13.46
13.38
0.02
0.03
Pass
Pass
Port11
13.27
13.25
0.02
0.04
Pass
Pass
Port12
13.46
13.15
0.04
0.02
Pass
Pass
Port13
13.24
13.17
0.04
0.03
Pass
Pass
Port14
13.15
13.42
0.03
0.04
Pass
Pass
Port15
13.32
13.44
0.03
0.03
Pass
Pass
Port16
13.02
13.19
0.03
0.03
Pass
Pass
Input
N/A
Pass
Pass
MAX.
13.48
13.45
0.04
0.04
N/A
MIN.
13.02
13.03
0.02
0.02
N/A
Average
13.28
13.28
0.03
0.03
N/A
Uniformity(≤1.0dB)
0.46
0.473
Directivity(dB)
≥55
