Specification:

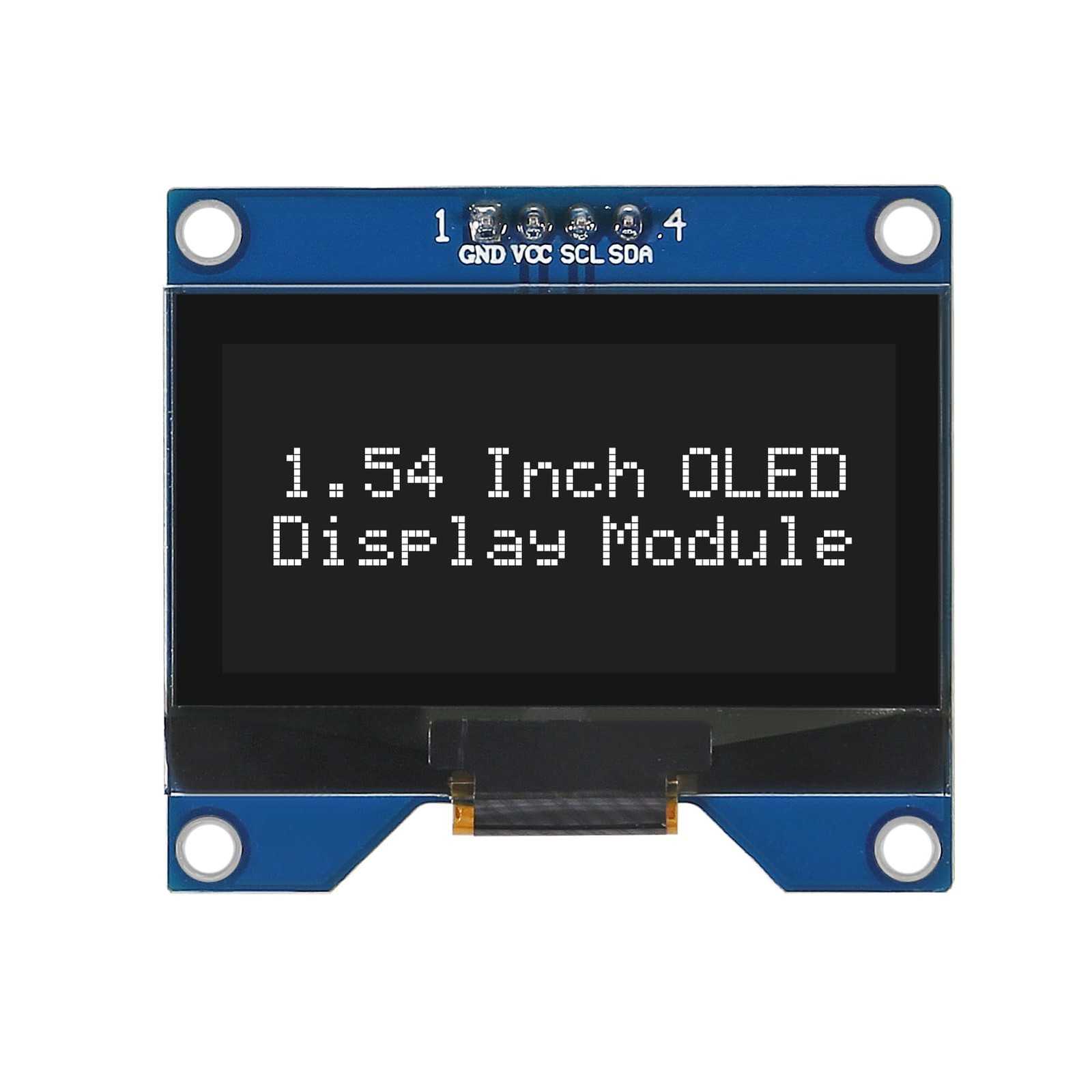

Item Type: 1.54 Inch OLED I2C IIC Display Module
Resolution: 128 x 64(Pixel)
Driver IIC: SSD1309, compatible with SSD1306
Interface: SPI interface I2C interface
Drive Voltage: 3.3V-5V
Display Color: Blue/White

Features:
OLED self-luminous, no backlight
High resolution: 128x64 (same resolution as 12864, high PPI)
Large viewing angle: greater than 160° (a screen with the largest viewing angle in the display)
Ultra-low power consumption: normal display 0.06w (far lower than TFT display)
Wide voltage power supply (3V~5V), compatible with 3.3V and 5V level logic, no need for level conversion chips
The IIC interface only needs 2 IOs to light up easily

Applications:
MP3, MP4, watch. Head-mounted displays. Meters and other intelligent instruments. Design any pretty patterns for your beloved electronic devices!

Package Included: 1pcs 1.54 Inch OLED I2C IIC Display Module(with protective box)
1.54inch OLED Display: Resolution: 128 x 64 Pixel, View angle: > 160°, Support voltage: DC 3.3V-5V Power consumption: 0.04W during normal operation, full screen lit 0.08W.
Embedded Driver IC: SSD1309, Communication: I2C/IIC Interface, only need 2 I/O ports.
Self-luminous Design: No backlight is required, the display can self-luminous; It has high contrast, bright and crisp dots, even tiny fonts quite readable.
There are no fonts embedded in the OLED controller, users can create fonts through the font generation software.
Application:1.54 inch OLED module supports many chips: compatible with R3 board and Mega, for Raspberry pi, 51 MCU, STIM 32, etc.
