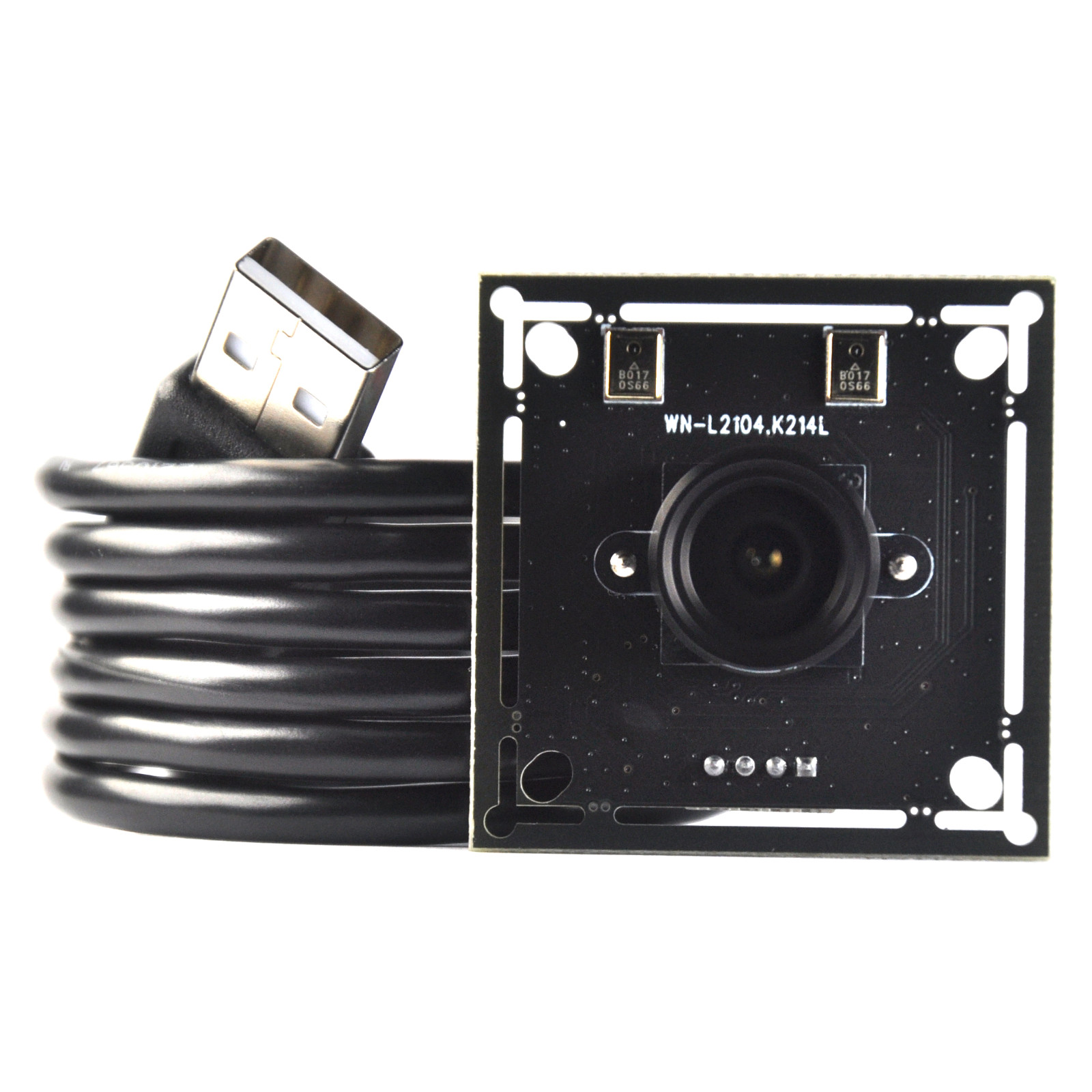

Product Parameters:·Module Size: 38*38mm·Pixel Size: 2.8*2.8μm·Image Sensor:1/2.9-Inch GC2093 CMOS Sensor·Max. Resolutions: 1920H*1080V·Frame Rate: 60fps·Output Format: MJPEG, YUY2·Field of View: 130°·Focus Mode: Fixed Focus·Shutter Mode: Electronic Rolling Shutter·Compatibility: UVC-compliant, Plug and Play·Connection Cable: Default 1.0 Meter USB Cable·Supported OS:UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.·Controllable Parameters:Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Resolution and Frame Rate:
Format
Resolution
Frame Rate (USB2.0)
MJPEG
1920x1080 (1080P)
60FPS
1280x720 (720P)
60FPS
640x480 (VGA)
60FPS
YUY2
1920x1080 (1080P)
5FPS
1280x720 (720P)
5FPS
640x480 (VGA)
30FPS
PIN Definition:
Pin No.
Signal Name
Description
1
VCC
5V Power
2
DM
USB2.0 Data-
3
DP
USB2.0 Data+
4
GND
GND
Working Condition:
Operating Voltage
USB DC +5V Supply
Operating Current
160mA
Operating Temperature
-20℃~ 70℃
Storage Temperature
-20℃~ 85℃
Humidity
80 ~85%
