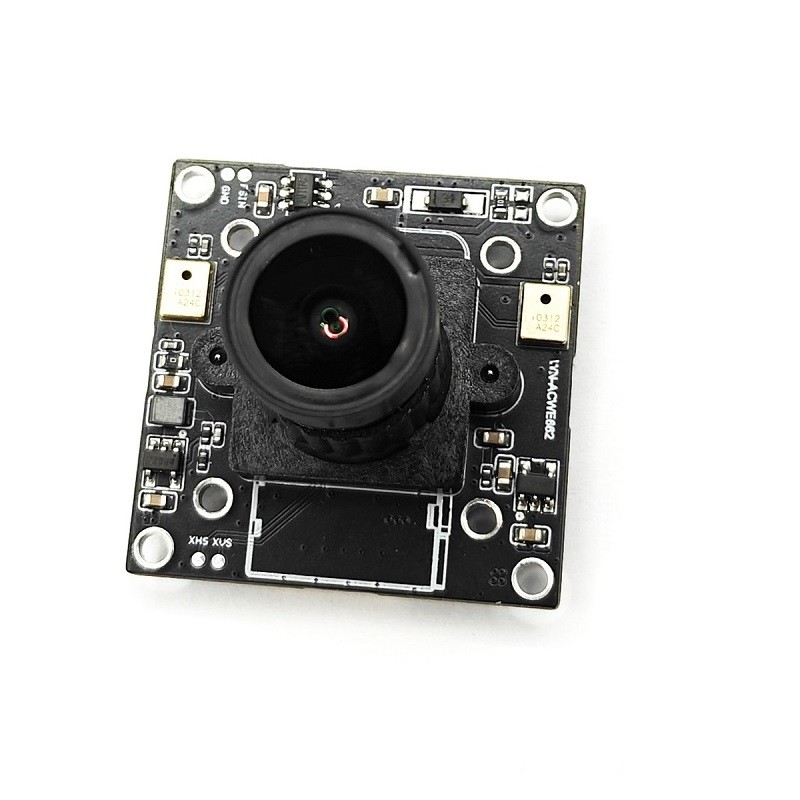

2MP 1080P IMX662 UVC USB Camera Modules Fixed Focus FOV 92° 30FPS MJPEG, YUV2 For Sale
|
 When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Main Parameters: Module Size 32*32mm Sensor 1/2.8-Inch IMX662 Pixel Size 2.9*2.9µm Resolution 1920 H x 1080 V Output Format MJPEG, YUY2 FOV 92° EFL 4.2 F/NO 2.5 TV distortion -25% Lens F:4.2F/NO:2.5 4G+650IR(M12-0.5P) Focus Type Fixed Focus Shutter Type Electronic Rolling shutter Output and Power Supply High Speed USB2.0 Interface connector 5PIN1.25 MM Socket Controllable Parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure Supported OS Windows, Android, Linux, Cable Length Default 1.0 Meter USB Cable Supported Resolution and Frame Rate30fps: Format Resolution Frame Rate (USB2.0) MJPEG 1920x1080 (1080P) 30FPS 1280x720 (720P) 30FPS 640x480 (VGA) 30FPS YUY2 1920x1080 (1080P) 5FPS 1280x720 (720P) 5FPS 640x480 (VGA) 30FPS 60fps: Format Resolution Frame Rate (USB2.0) MJPEG 1920x1080 (1080P) 60FPS 1280x720 (720P) 60FPS 640x480 (VGA) 60FPS YUY2 1920x1080 (1080P) 5FPS 1280x720 (720P) 5FPS 640x480 (VGA) 30FPS PIN Definition Pin No. Signal Name Description 1 VCC 5V Power 2 DM USB2.0 Data- 3 DP USB2.0 Data+ 4 GND GND 5 GND GND Working Condition Operating Voltage USB DC +5V Supply Operating Current 150mA Operating Temperature -15℃~ 60℃ Storage Temperature -20℃~ 85℃ Humidity 80 ~85%  |
|
|
|
