Input:10-30V

Installation:

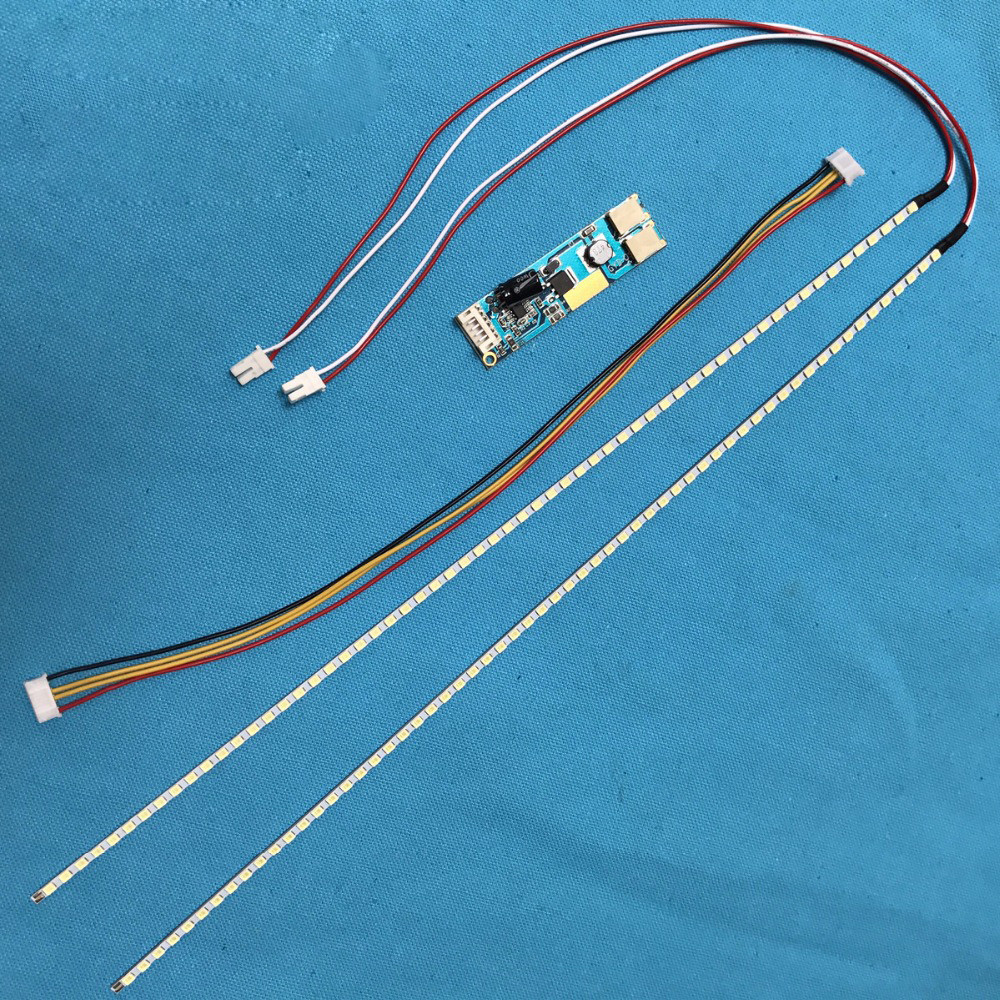

If your monitor is using a inverter, then this kit replace the inveter to plug into the driver board;

If your monitor is a high-voltage integrated power supply board, then: the board energized, find 12V (capacitance),and then unplug the power supply,use amultimeter to find and 12V (capacitance) Disconnect original connectingthe negative terminal, the board received three line: 12V, ON, GND, the 12v of theinverter connect with 12v positiveelectrode of hign-voltage intergrated power supply board,GND is connected with the negative electrode, ON connectwith the ON / OFF. In simple terms, The original high voltage power supply isdisconnected,instead of the inverter,In the original high-pressure front to take power.

VIN : voltage

ENA: on/off

DIM: ADJ adjust brightness

GND: connecting Ground

Notice:Please check the length of your LED strip, the length need equal to the length of the original lamp. Because the screen model too much, different sizes of the screenLED striplength will be different, please check the length and then buy.
