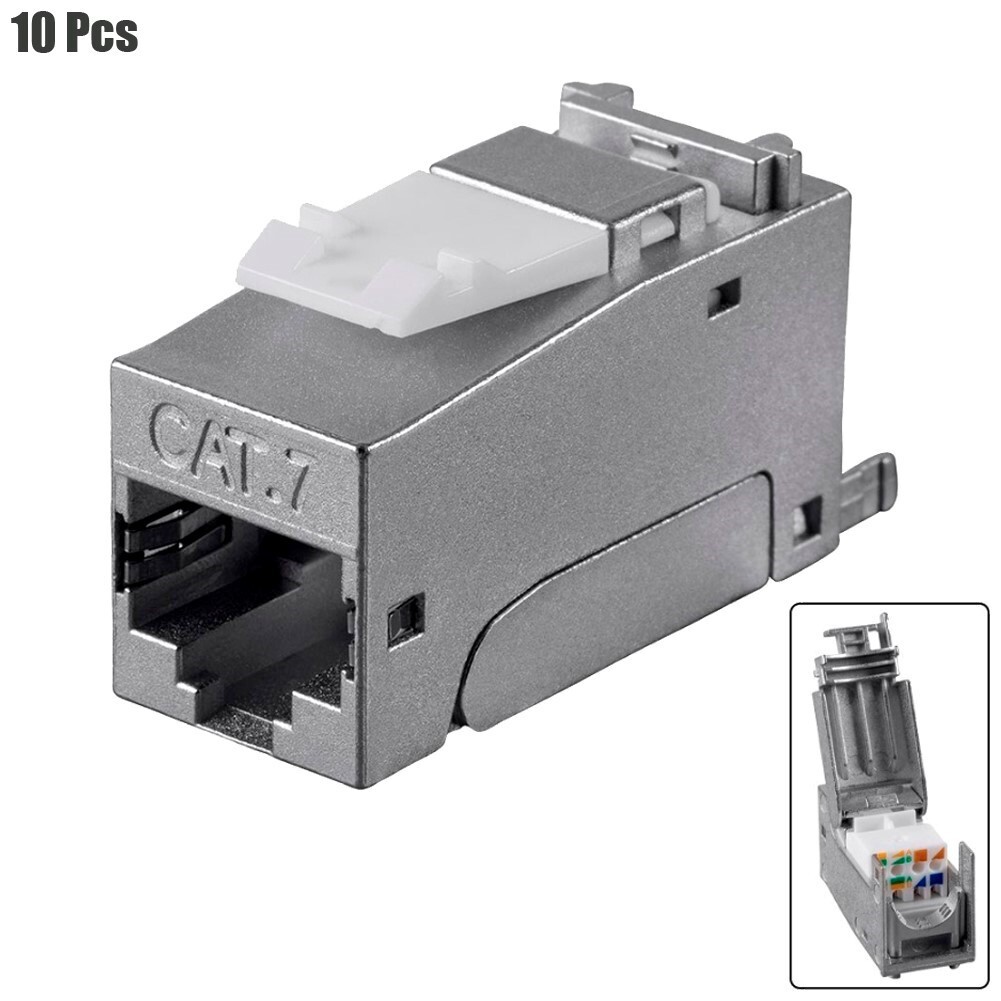

10x Cat7 Cat6A RJ45 Network LAN Ethernet Shielded Keystone Jack Toolless Snap InNewAVAILABLEIN STOCKContact UsNewsletterBuy NowProduct Description
Pack of 10 pcsRJ-45 Cat7 & Cat6A Toolless Shielded Keystone Jack
Shielded, tool-free connection -fast wire terminations without any special punch tools
Suitable for patch panels and mounting outlets RJ45 female to LSA, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
Area of application: Up to 500 MHz, 10GBase-T Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
Accepts: 22-24 AWG solid cables (bare conductor diameter from 0.50-0.58mm, outside diameter from 5.0-8.5mm)
Class EA
360° shield coverage
Zinc die-cast, nickel-plated
RJ45 pin holder: ABS UL 94V-0
RJ45 contact: Tinned phosphor bronze with gold-plating
LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze PCB: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operating temperature: -20 ~ +70°C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 according to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 according to ISO/IEC 11801, IEC 60603-7-5
