This high-resolution autofocus offers twice the resolution of the standard 8 megapixels Raspberry Pi HQ while maintaining its compact form factor.
Specfication & Comparison Chart Sensor: IMX519 stacked, back-illuminated sensor 16 megapixels 1.22 µm × 1.22 µm
pixel size7.103 mm diagonal (Type 1/2.534)
Output: RAW10/8, COMP8
Lens: Autofocus; f/1.75; EFL: 4.28; FoV: 80°; Focus Range: 10 cm ~ infinite
IR cut Filter: Integrated
Tripod mount: 1/4”-20
Enclosure: ABS, also w/ module v3 &v1 & v2.
Ribbon Cable Length: 150mm【16MP for All Pis】The designed for Raspberry Pi features a 16MP IMX519 sensor with a pixel resolution of 4656 x 3496, twice as high as the v2 and 40% higher than the HQ ; with any Raspberry Pi board with a MIPI/CSI interface; Unlike the native Pi , this requires some simple script configuration before use, and does not support raspbian.
【IMX519 AF Moudle】Built-in autofocus motor allows you to get focus quickly so that you can focus to infinity no matter where you place your . The minimum focus distance is 10cm, and the longest allowed exposure time is 200 seconds.
【Crisper Images/】The 16 megapixel can capture 1080p Full HD video at up to 30 frames per second and 720p HD video at up to 60 frames per second, and also provides an effective 80-degree field of view.
【Module V3/V2/V1 Size】The autofocus module has the same size as the raspberry pi module V3/V2/V1, the package comes with plastic housing, also suitable for V1 and V2 boards. And the housing also has an integrated tripod mounting hole, which you can install on any 1/4 hole distance tripod.

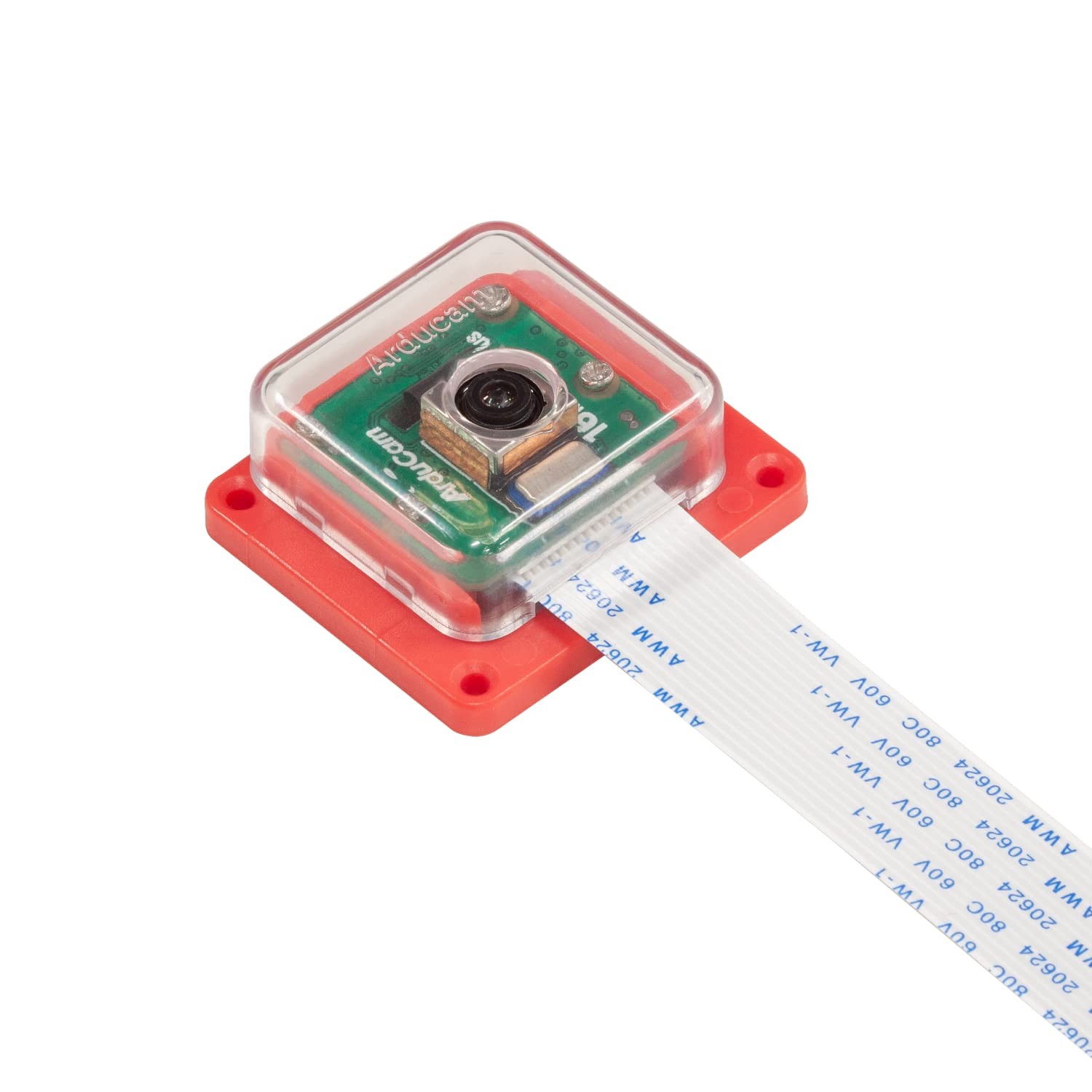

【Package Contents】The package includes a board with IMX519 sensor and an autofocus lens, an FPC cable and a housing. Please search : B09TSDZ48F for the extension kit, which allows you to place cameras up to 15 meters away for shooting. : B09TSGMCM9 is a multi-solution that enables 4 cameras to appear in the same frame. If there is any issue with the , feel free to , we will provide technical support for you.
Note：This is with Jetson Developer Kit, and it does not to support other third-party boards.
