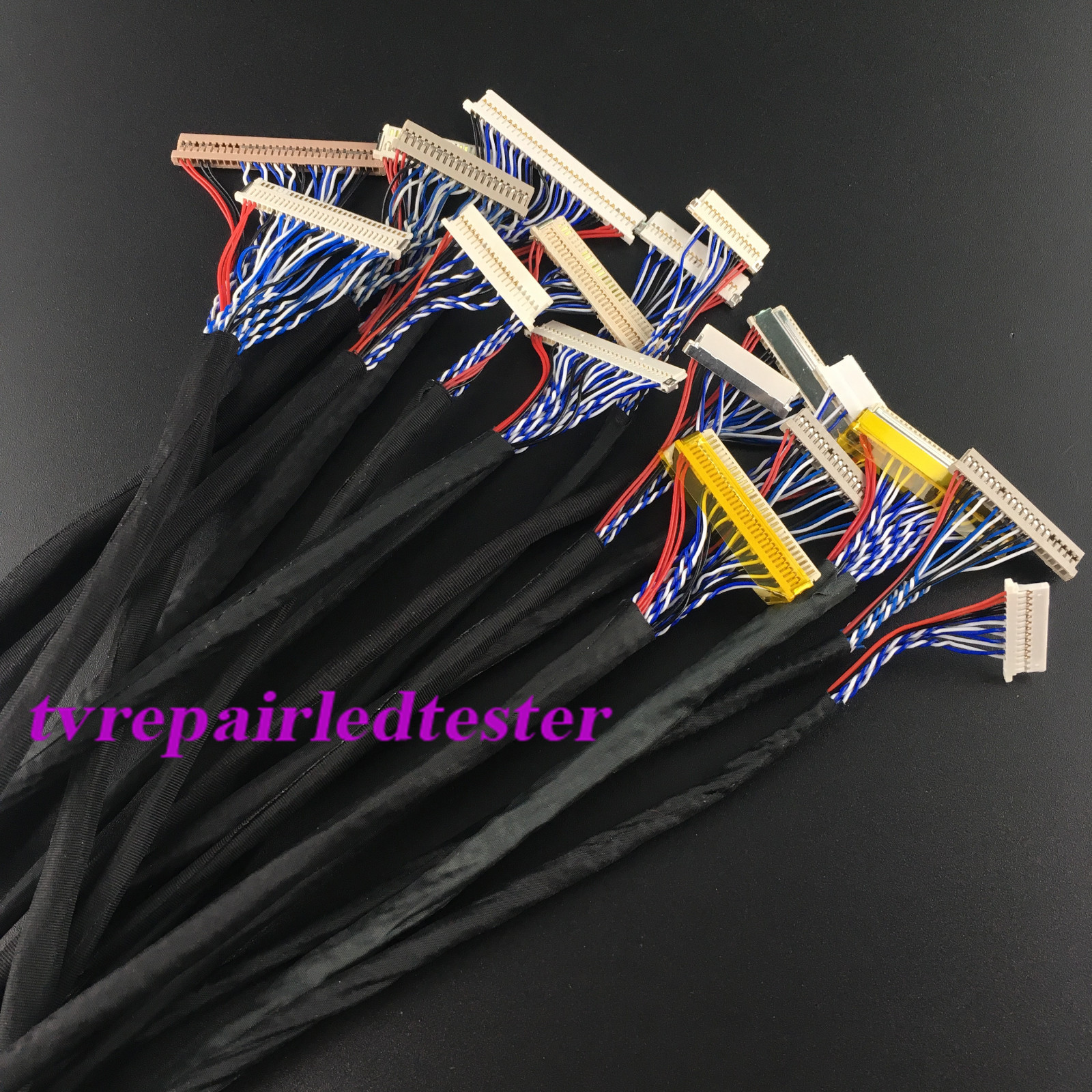

18pcs/set Common Used Universal LVDS Cable for LCD Display Panel Controller Support 14''-26'' Screen

Package includes:
1x DF-14-20pin Single 6 bit 1x DF-14-20pin Single 8 bit 1x DF-14-20pin double 6 bit 1x DF-14-30pin double 8 bit 1x FI-X 20pin single 6 bit 1x FI-X 30pin single 6 bit 1x FI-X 30pin single 8 bit 1x FI-X 30pin double 6 bit 1x FI-X 30pin double 8(power on left) bit 1x FI-X 30pin double 8(power on right) bit 1x DF-19 -14pin single 6 bit 1x DF-19 -20pin single 6 bit 1x DF-19 -20pin single 8 bit 1x DF-19 -30pin double 8 1x 51146-14pin single 6 bit 1x 51146-20pin single 6 bit1x 51146-20pin single 8 bit 1x 51146-30pin double 8 bit Total 18 pcs/ set.

Connection the LCD controller board:

PIN # SIGNAL NAME DESCRIPTION 1 VSEL Power for panel 2 VSEL Power for panel 3 VSEL Power for panel 4 GND Ground 5 GND Ground 6 GND Ground 7 RXO0- Negative LVDS differential data input 8 RXO0+ Positive LVDS differential data input 9 RXO1- Negative LVDS differential data input 10 RXO1+ Positive LVDS differential data input 11 RXO2- Negative LVDS differential data input 12 RXO2+ Positive LVDS differential data input 13 GND Ground 14 GND Ground 15 RXOC- Negative LVDS differential clock input 16 RXOC+ Positive LVDS differential clock input 17 RXO3- No Connection 18 RXO3+ No Connection 19 RXE0- LVDS EVEN 0 - Signal 20 RXE0+ LVDS EVEN 0 + Signal 21 RXE1- LVDS EVEN 1 - Signal 22 RXE1+ LVDS EVEN 1 + Signal 23 RXE2- LVDS EVEN 2 - Signal 24 RXE2+ LVDS EVEN 2 + Signal 25 GND Ground 26 GND Ground 27 RXEC- LVDS EVEN Clock - Signal 28 RXEC+ LVDS EVEN Clock + Signal 29 RXE3- LVDS EVEN 3 - Signal 30 RXE3+ LVDS EVEN 3 + Signal

Connection the LCD Panel:

PIN # SIGNAL NAME DESCRIPTION 1 NC No Connection 2 VDDIN Power Supply 3 VDDIN Power Supply 4 VDC VDC for EDID 5 NC No Connection 6 CLK EDID EDID Clock 7 DATAEDID EDID Date 8 RXO0- Negative LVDS differential data input 9 RXO0+ Positive LVDS differential data input 10 GND
11 RXO1- Negative LVDS differential data input 12 RXO1+ Positive LVDS differential data input 13 GND
14 RXO2- Negative LVDS differential data input 15 RXO2+ Positive LVDS differential data input 16 GND Ground 17 RxCLKIN- LVDS EVEN Clock - Signal 18 RxCLKIN+ LVDS EVEN Clock + Signal 19 NC No Connection 20 RXE0- LVDS EVEN 0 - Signal 21 RXE0+ LVDS EVEN 0 + Signal 22 GND Ground 23 RXE0- LVDS EVEN 0 - Signal 24 RXE0+ LVDS EVEN 0 + Signal 25 GND Ground 26 RXE0- LVDS EVEN 0 - Signal 27 RXE0+ LVDS EVEN 0 + Signal 28 GND Ground 29 RXEC- LVDS EVEN Clock - Signal 30 RXEC+ LVDS EVEN Clock + Signal 31 VLED_GND LED Ground 32 VLED_GND LED Ground 33 VLED_GND LED Ground 34 NC No Connection 35 PWM System PWM Signal Input 36 LED_EN LED Enable 37 NC No Connection 38 VLED LED Power Supply 39 VLED LED Power Supply 40 VLED LED Power Supply
