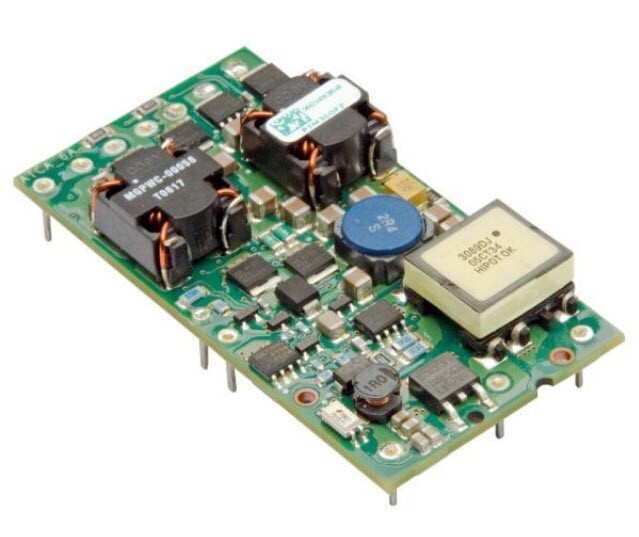

1pc ABB PIM300FZ Isolated DC/DC Converter 2.4A IN -38 to -75V OUT 3.3V 300W
~ NEW ~
MFG: ABBMFG PN: PIM300FZ
Specs:
Product Category: Isolated DC/DC Converters - Through Hole Mounting Style: Through Hole Number of Outputs: 1 Output Output Power: 300 W Input Voltage, Min: - 38 V Input Voltage, Max: - 75 V Output Voltage-Channel 1: 3.3 V Output Current-Channel 1: 2.4 A Isolation Voltage: 1.5 kV Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C Length: 70.6 mm Width: 36.8 mm Height: 12.7 mm Industry: Industrial Product: Isolated Series: PIM300 Brand: ABB Input Voltage: - 38 V to - 75 V Product Type: Isolated DC-DC Converters Subcategory: DC-DC Converter Unit Weight: 1.199315 oz
Features▪ 300W / -48V telecom input power distribution▪ 8W (3.3Vdc or 5.0Vdc) of isolated ManagementPower for IPM or other housekeeping functions▪ OR’ing functionality for the A/B & RTN power feedsas well as Enable A/B signals▪ Inrush protection / hot swap capability▪ Integral EMI filter designed for the ATCA board tomeet CISPR Class B▪ Independent 72Vdc output for charging the externalholdup capacitors resulting in significant board realestate savings and bleed resistor power dissipation▪ A/B Feed Loss or open fuse alarm (opto-isolated)▪ Protection: Reverse polarity, under voltage, inputtransient over voltage, over current & overtemperature▪ High efficiency : 98% @ –48V / 300W (@25C)▪ -5 to 85ºC ambient temperature operation▪ Compact design : 70.6 mm x 36.8 mm x 12.7 mm▪ Compliant to RoHS Directive 2011/65/EU andamended Directive (EU) 2015/863.▪ Compliant to REACH Directive (EC) No1907/2006MTBF : 1,362,480 hours perTELCORDIA▪ ISO** 9001 & ISO 14001 certified manufacturingfacilities▪ ANSI/UL* 62368-1 and CAN/CSA† C22.2 No.62368-1 Recognized, DIN VDE‡ Designed and tested for Basic Insulation (1500Vdc)
DescriptionThe PIM300X-series is the higher power version of its highly successful predecessor, the PIM200X series. Besides providinghigher power over extended temperature range, the module is pin compatible and retains the same form factor as thePIM200X series for ease of upgrading to higher power or thermally challenging ATCA board designs. The PIM200X/300Xseries are a new class of power modules designed to greatly simplify the task of implementing dual redundant, hot swap –48Vdc power distribution with EMI filtering on an ATCA or other telecom boards. The PIM300X, when used with a variety ofGE’s dc-dc converters/POLs provides for a quick, simple and elegant power architecture solution to a wide variety ofcomplex power requirements. While providing high reliability, innovative features and compact design at a low cost, themodule significantly reduces the valuable telecom board real estate compared to conventional discrete designs. Besidesprocessing the main –48V bus, the module greatly simplifies the task of powering the IPM (for ATCA applications), systemmanagement or other housekeeping functions by providing a completely isolated auxiliary 3.3V or 5.0V power bus.
Applications▪ ATCA Front Board / Blade▪ Central Office Telecom equipment▪ High availability server and storage applications
