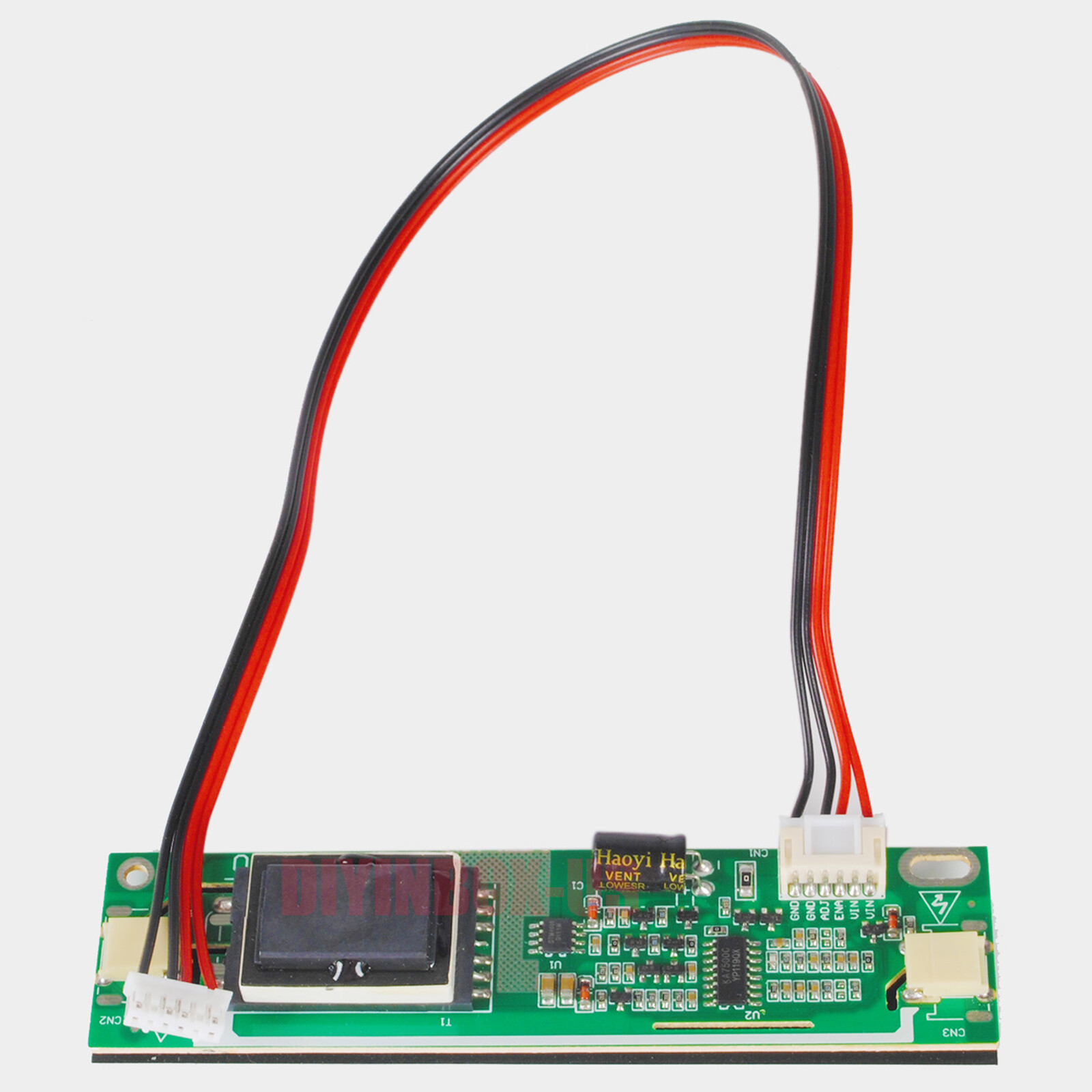

- New 2 Lamp CCFL Inverter board 12V Input LCD Screen Monitor Hard Panel/Display
Application:
The DC to AC back-light inverter is special designed on any type LCD display in implement (i.e. LCD monitor, notebook、laptop computers etc.)
Suitable load
10"- 22〞2 Lamps TFT LCD Module
Environmental Condition
Operating temperature :-5℃ -- 50℃
Storage temperature : -20℃-- 70℃
Operating humidity : 10% -- 95%RH
Storage humidity : 10% -- 95%RH
The DC to DC back-light inverter suggested working in the condition of upon. It can be work 500thousand hours at least in the below condition.
Operating temperature :-20——70℃
Operating humidity :10%——95%RH
Input Electrical Characteristics
No.ItemSymbolMinTypeMaxUnit1Input VoltageVin10.81213.2V2Input CurrentIin<0.7511.2A3Input PowerPin----12
W4Brightness VoltageEnable Von=1.5---5.0V Disable Voff=0---0.5V
Output electrical characteristics
ItemSymbolTest ConditionsMinTypeMaxUnitOutput CurrentIoutVin=12.0V; Von=5V; Ta=25℃2.578.2mAOutput VoltageVoutVin=12.0V; Von=5V; Ta=25℃
7201300VrmsIgnition VoltageVig1Vin=12.0V; Von=5V;Ta=25℃
13001700VrmsOutput FrequencyfVin=12.0V; Von=5V; Load=80KΩ
90--- % Current balance degreeIbd ±0.2
mA rms
Pin assignments
Input connector：CN1Pin =1.5--5.0V Off=0-0.5V4VadjDimming control0V=Brightness Max 5V=Brightness Min5、6GndGround0V
Output connector:CN3;CN2Pin No.SymbolDescriptionParameter1H-VHigh voltage720Vrms2L-VLow voltage0-18Vrms
