Specification:
Frequency Range:
700~2700MHz
Gain: 9/ 10dBi
VSWR: ≤1.4
Max power: 50 W
Polarization: Vertical
Input Impedance: 50 Ohm
Lobe level: <20dB
Horizontal wave width HP: 90°/ 75°
Vertical plane wave width HP: 60°/ 55°
front-to-back ratio: >15dB
Lightning protection: DC Ground
material for radome: ABS
Size: ≤400mm*210mm*65mm
Working Temperature: -40℃~+60℃
Antenna connector: SMA Male straight
Cable Type: RG58, 20cm
Extension Cable
Extension Cable with RG58 Low-Loss Cable
Extension Cable length: 33 feet (10M)
Extension Cable connector: SMA Female to SMA Male
Splitter Combiner Cable:
Connector: SMA Female to Y type Dual TS9 Male
Cable Type: RG316 Coaxial Cable
Length: 15cm
Impedance: 50 Ohm
Work Temperature: -40~+85 degree
TS9 Male is suitable for E3272,E5372,E5573 ,E5375,E5377,E5771,E8372 and so on
Applications: router, antenna, signal enhancer, WLAN WI-FI adapter etc. Consisted of high quality RG316 cable and all copper SMA female to TS9 male adapter, high temperature resistance, acid resistance, corrosion resistance, high frequency low loss and low impedance, to ensure high quality class="STYLE10" align="left">Package included:

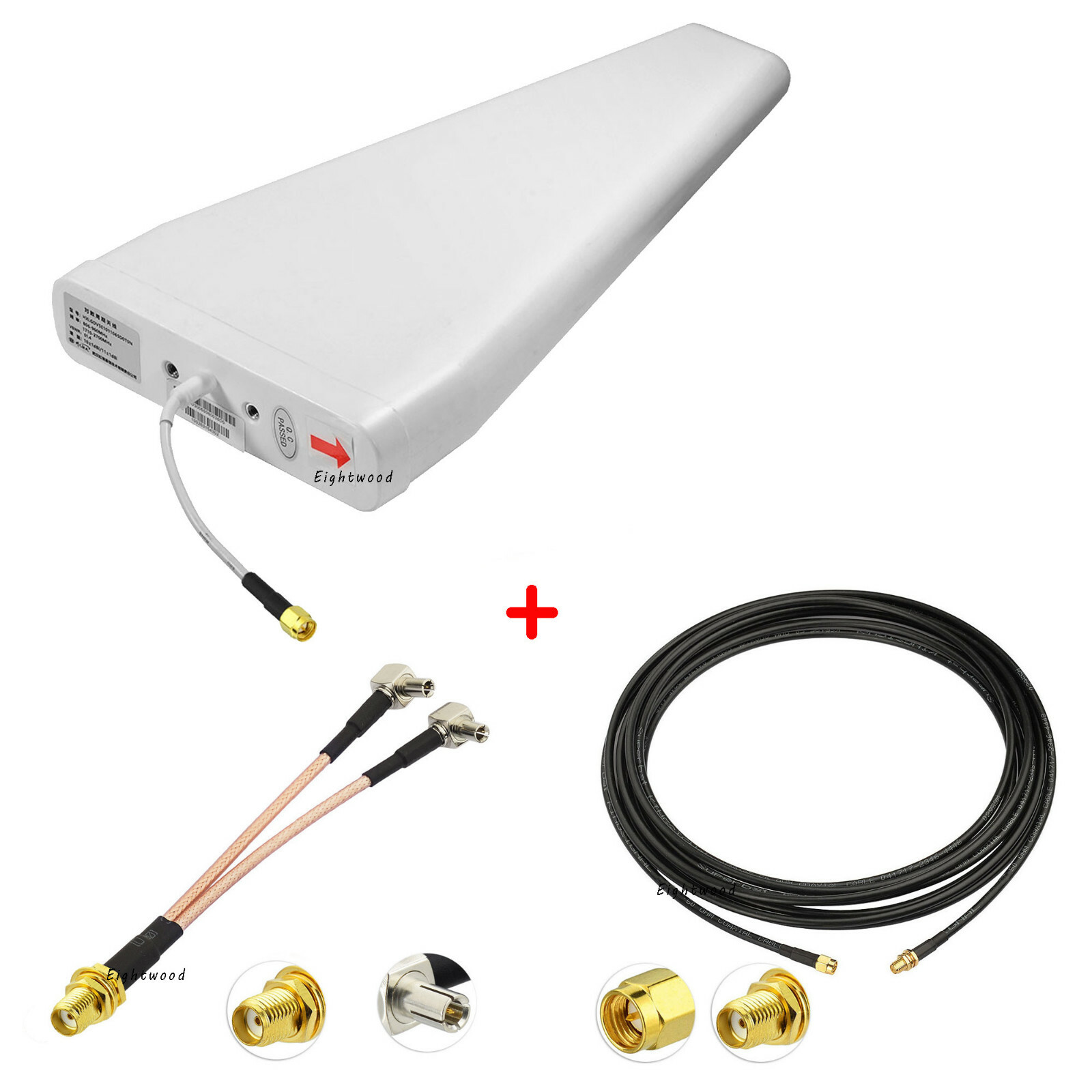

2pcs 3G/4G/LTE Wide Band Yagi Directional Outdoor Yagi Antenna (SMA Male), 33ft KSR195 Low-Loss cable with SMA Female to SMA male connector amd Splitter Combiner Pigtail Cable TS9 for Log Periodic Cellular
