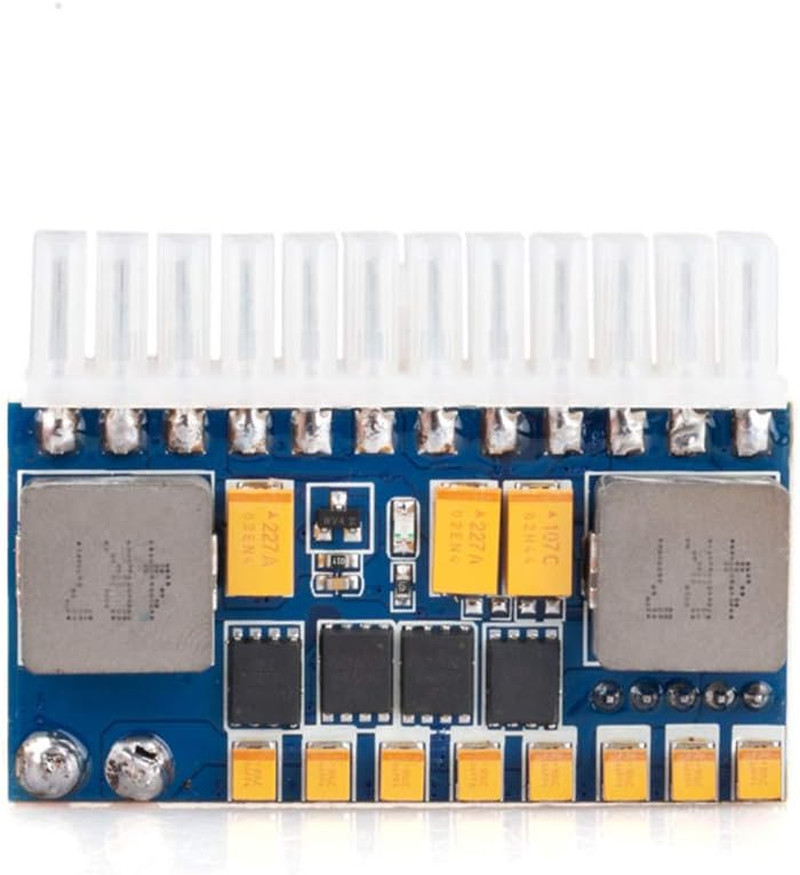

24Pin DC ATX PSU 12V DC Input 250W Peak Output Switch DC-DC ATX Pico PSU Mini ITX PC Power

Product description

Description:

100% brand new and high quality

Size (L*W*H): 2*0.3*1.5 inches/ 50mm*7mm*37mm(approx)

Adopt industrial solid capacitor, ideal for being used in harsh evironment

High performance with high heat-stand feature, more reliable

Without fan for 100% mute working

Compact design, special for mini-itx and 1U case
Modules can reach 250W, and it must be accompanied by the power adapter

.

Specifications:

Input voltage: +12V/DC(11.4-12.6V)

Input Current: Max. 21A

Output ATX: 250W

Output Power: 250W

Power Efficiency: > = 85%

Working temperature/humidity: 15℃ to 35℃ / 45%-75%

Reposition temperature//humidity: -40℃ to +70℃/ 10%-90%

Atmospheric pressure: 86Kpa—106Kpa

Applications: MINI computers, one computer, POS, digital set-top boxes, ITX chassis, network servers, advertising, banking terminals,

• Note: Only can use with 12V Power Adapter or 12V Input Voltage, 250 Watt Output 12 Volt DC Input,
• DC input connector: 2.5mm inner diameters, 5.5mm outer diameter
• Short-circuit protection: output shut down when short-circuit
• 24 pin ATX connector, Plugs directly into the ATX connector
• Perfect DC PSU for mini ITX Motherboards

• Compatible Devices Personal Computer Connector Type Used on Cable ATX Output Wattage 250 watts Form Factor ATX Wattage 250 watts Cooling Method Air Power Supply Design Internal Connector Quantity 1 Maximum Input Voltage 12 volts_of_direct_current Minimum Input Voltage 12 volts_of_direct_current Upper Temperature Rating 50 °C System Bus Connector Type 24 Pin Model Name 24pin DC ATX PSU Number of Items 1 Manufacturer COSHARE Model Number 250W PSU Mfr Part Number 250W PSU Item Dimensions 6.3 x 3.3 x 1.8 inches Item Weight 0.08 kg Connector Type ATX Item dimensions L x W x H 6.3 x 3.3 x 1.8 inches
