SupportEXTEND mode, max Network Cable length to250 meters

NOTE. WhenEXTEND mode enable, the Max bandwidth for thePower Link (PoE) port 1-4network port will bereduced to 10Mbps for each one.
(The up-link is not affected, it will always working at 100Mbps max speed)

ALL Port: Standard 10/100Mbps Ethernet port. Support 10Mbps Ethernet and 100Mbps Fast Ethernet, can operate in full-duplex or half-duplex mode,must work with4 pairs UTP Cat5/5e/6 cable。 Power LinkPort1-4: any supported unsolicited power on pairs 45-78 pins compliant Powered Devices (PDs) Power LED LED ON: power on. LED OUT: power off GreenLight LINK/ACT LED ON Indicates the port is connected to a network device and has been started LED OFF Indicates that this port is not connected to a network device or has not been started

Standard

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3x Full-Duplex flow control

Protocol

CSMA/CD Ethernet

Data TransferRate

Ethernet: 10Mbps (Half Duplex)20Mbps (Full Duplex)

Fast Ethernet: 100Mbps (Half Duplex)200Mbps (Full Duplex)

IC Chips

IC Plus IP178G

Network Media(Cable)

10Base-T(EXTEND mode): UTP category 5e, 6 cable (maximum 250m) EIA/TIA-568 100Ω STP (maximum 250m)

100Base-TX:UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

PoE Power on RJ45

Power +: pin 4 & pin 5 ; Power -: pin 7 & pin 8

DC Output: 52V, Per port Max 1A or 50Watt, 4 POE ports Total Max. 75Watt

Number of Ports

5x 10/100Mbps Auto-Negotiation RJ45 ports with4 PoE enabled (port-1~ port-4)

Power Input

AC Input: 110V ~ 240VAC, 50Hz ~ 60Hz.

DC OutPut: 52V/1.85A

Power Consumption

3.2Watts (max. no PD connected)

According to the actual power consumption of equipment

Temperature

Operation Temperature:0 ~40℃(32 ~104℉)

Storage Temperature: -40 ~70℃(-40 ~158℉)

Humidity

Storage Humidity 5%~90% non-condensing, OperatingHumidity 10%~90% non-condensing

Product Dimensions

132mm W x 66mm D x 32mm H

RAM Register Capacity

64K bytes per device

MAC Address List

1K entries per device

Frame Forward Rate

10Mbps Ethernet: 14880pps/Port

100Mbps Ethernet: 14880pps/Port

Notice:

Yellow LED(power) will be light up when micro USB connects to the device.

Green LED(data) never light in any circumstances,two reasons are below,

1.The splitter does not have the function to monitor the data of the network cable.

2.due to the cost problem,the network interface component is from the universal components which own two LEDs on the market.

Isolation: 2.5kV
Power Input: DC44~57V
Power Output: DC5V 2.4A
Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE)
Data Output Port: RJ45 Male
Power Output Port: Micro USB Power Plug
Data Transfer Rate: 10/100Mbps
Devices will be detected before poe input
Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Body size: 80 x 27x 22 mm
DC cable length：165mm
RJ45 Modular Plug cable length：155mm
Weight : 55g

Item Included:

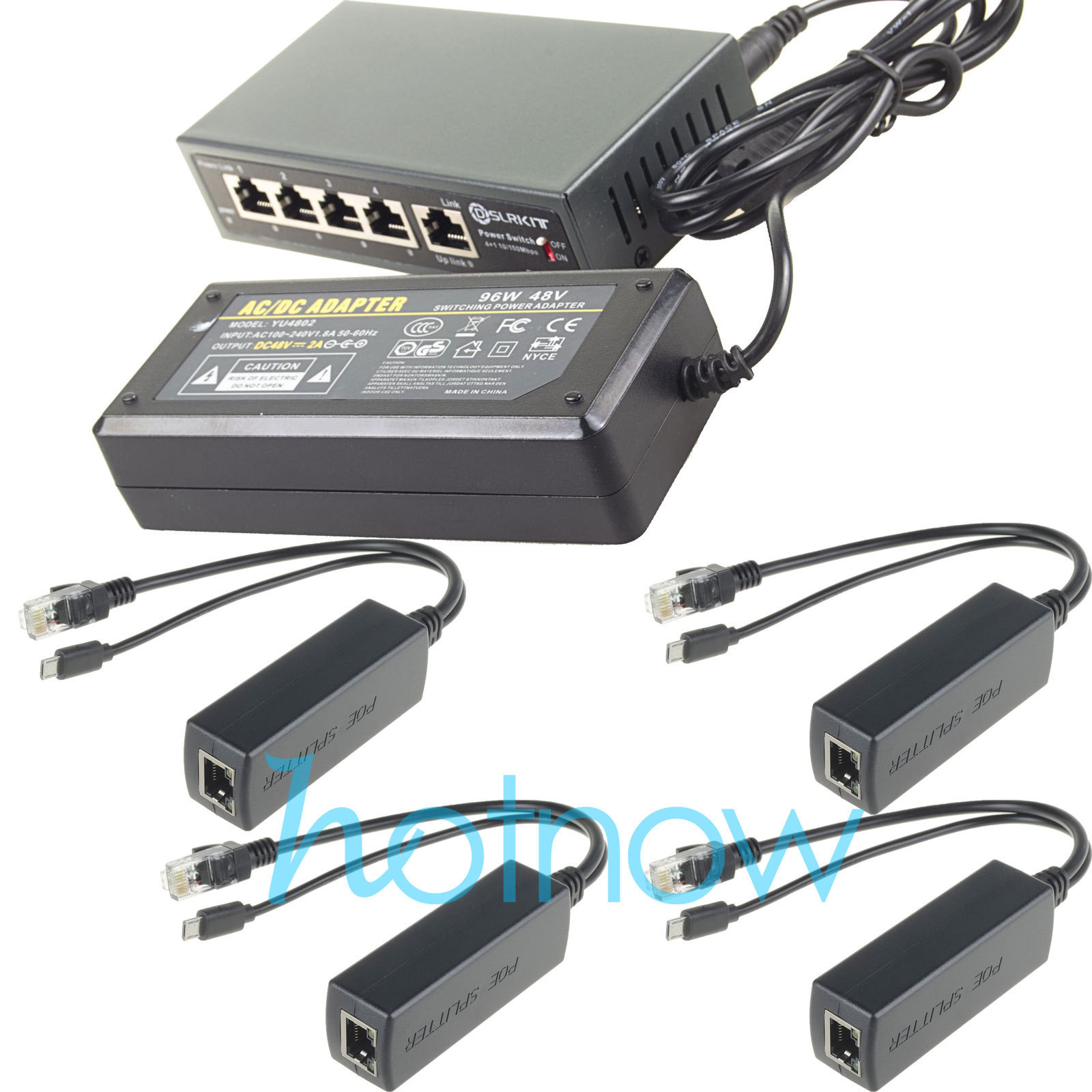

75Watt 5pots 4PoEPassivePoE switch(DSLRKIT MID4P1U-E250) x1
