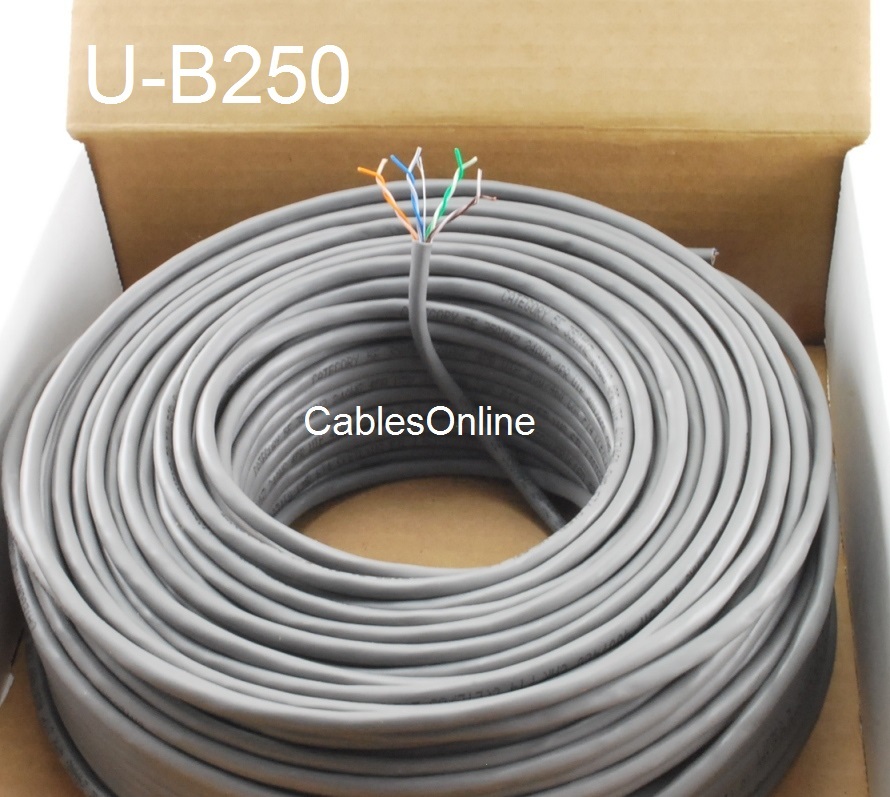

250ft Cat5e 350MHz UTP 24AWG solid pure copper, Riser Rated CMR Bulk Cable, Gray These Ethernet bulk cables are made of 100% pure bare copper wire and are ideal for applications were pure copper wire is required and professional custom installation is needed.
Applicable Standards:
• ETL Listed Type CMR
• C(ETL) listed CMG FT4
• ETL Verified to TIA ‐ 568‐C.2, and ISO/IEC 11801
• ROHS Compliant
• ATM 155 Mbps
• Ethernet 10BASE‐T, 100BASE‐TX, 100BASE‐VG, 100BASE‐T4,
• 1000 Mbps 1000BASE‐T Gigabit Ethernet™ (IEEE 802.3)
• 16 Mbps Token Ring™ (IEEE 802.5)
Physical Characteristics:
• Number of Conductor Pairs: 4
• Conductor Material: Solid Annealed Bare Copper
• Stranding: Solid
• Rip Cord: Yes
• Insulation Material: Polyethylene
• Insulation Overall Diameter: 0.035 in. ± 0.0002 in
• Insulation Average Thickness: 0.0081 in
• Jacket: Flame Retardant PVC
• Outer Jacket Average Wall Thickness: 0.023 in.
• Outer Jacket Nominal O.D.: 0.200 in. ± 0.008 in.
Color Code:
• Pair 1 White / Blue, Blue
• Pair 2 White / Orange, Orange
• Pair 3 White / Green, Green
• Pair 4 White / Brown, Brown Specifications: - 24AWG pure copper 4 Pair UTP (Unshielded Twisted Pair) Ethernet cable
- Solid Wire , Pure Copper
- 350MHz rated
- CMR rated , ETL listed
- Length: 250 feet , Color: Gray
CablesOnline Part Number: U-B250  |
|
