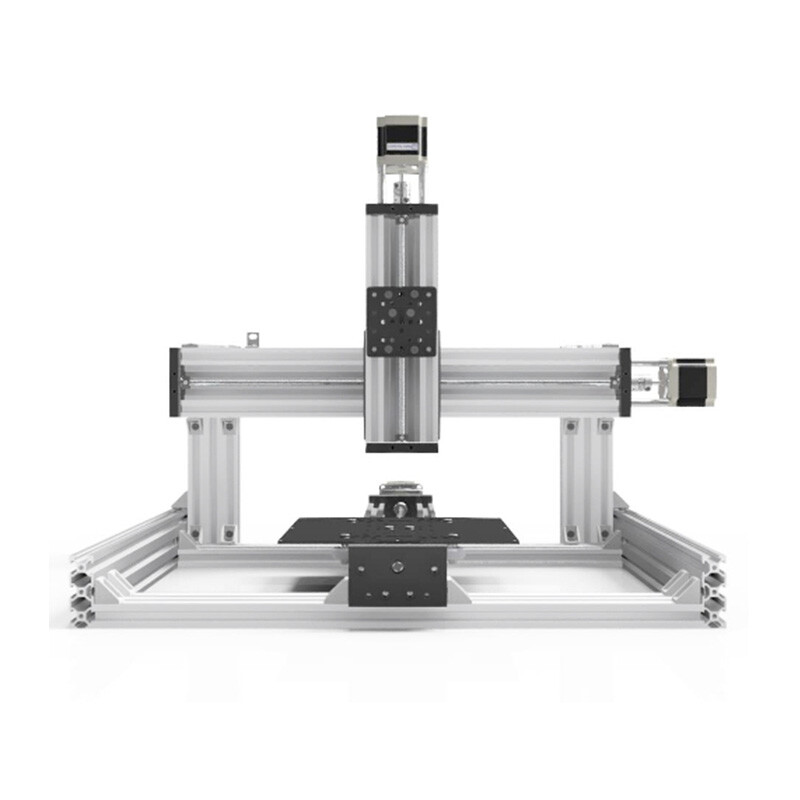

Condition:New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...3D Technology:FDMExtrusion Color:SilverMPN:N/AModel Number:CB01Maximum Print Size:350×280×85mmNozzle Size:N/ABrand:BULK-MAN 3DItem Name:CBeam CNC Machine Mechanical KitMaximum Resolution:N/AModel:CB01Working Area:(X x Ymm) 350 x 280mmPrinting Speed:8000~24000R/minFeatures:DIY KitInterface:USB 2.0, USB 3.0, Wi-Fi 3 Axis CBeam CNC Machine Mechanical Kit DIY CBeam Engraver Frame kit
️+ Save This Seller to Enjoy a Menber Exclusive Coupon! This product is in stock! If it interest you please contact us to refresh the online stock so you can order! The C-Beam Machine is a CNC machine designed to be strong enough to allow you to create custom plates.
CBeam Machine is a CNC machine design based on the popular VSlot linear guide system. The machine is strong as the linear rail incorporates a C shape profile which gives added strength and functionality.
Materials you can Mill/Cut/Carve & Engrave:
- Aluminum
- Hard Wood
- Soft Wood
- Oak
- Plexi Glass
- Delrin
- HDPE
- Foam
Dimension Details:
Travel (Cutting Area): – X Axis: 350mm – Y Axis: 280mm – Z Axis: 160mm Frame: CNC Aluminum Plates with VSlot Extrusions and Cast Corners. Motors: 1.26N.mNEMA23 Stepper Motors X,Y & Z. Motion: X/Y/Z - 8mm Tr8*8 4 Start ACME Lead Screw Footprint: 540 x 617 x 501mm
Specs of Nema23 (1.26N.m) Stepper Motor:
- NEMA 23
- Shaft Size: 1/4"
- Step Angle: 1.8
- Holding Turque: 1.26N.m
- Rated voltage: 3.36V
- Rated current: 2.8A
Package Includes:
- CBeam Mechanical Kit
- 1.26N.m Nema23 Stepper Motors / NO Motors
- Extrusions are new and M5 tapped as where it is necessary!
- PDF Assembly Manual is available by email.
PLEASE NOTE: MDF Working Table, Spindle, Controller etc and other electronics are not included with this kit. Part List:
CBeam Machine Kit
Item name
Size
Quantity
CBeam Linear Rail
250mm
1
500mm
2
ACME Lead Screw
290mm
1
540mm
2
VSlot Linear Rail
2060-500mm
4
2040-250mm
4
Socket Head Cap Screw
M4*6
2
Self Tapping Screw
M5*19
14
Low Profile Screws
M5 * 8mm
24
M5 * 10mm
50
M5 * 20mm
30
M5 * 25mm
14
M5 * 30mm
4
M5 *55mm
6
Aluminum Spacers
3mm
6
6mm
15
40mm
6
Nylon Lock Nut
M5
10
Flexible Coupling
6.35*8
3
Ball Bearing 688Z
8x16x5
6
8mm Shim
/
6
Lock Collar
8mm
6
Eccentric Spacers
6mm
7
Slot Washer
15x5x2mm
8
Xtreme Solid V Wheel Kit
10.23*23.9
10
Tee Nuts
M5
68
Drop in T Nut
20-M5
2
Cast Corner Bracket
20-M5
26
L Bracket
Single
2
Build Plate
/
1
VSlot Gantry Plate
20-80mm
1
90 Degree Joining Plate
/
2
CBeam End Mount
/
6
CBeam Gantry Plate
/
1
Router/Spindle Mount
/
1
Anti Backlash Nut Block
/
1
NEMA23-Stepper-Motor
1.26N.m / No Motors
3
Display: " V-Slot " and " C-BEAM " are registered trademarks of OpenBuilds LLC as released under the Creative Commons Licence "Attribution-ShareAlike"
All our components are designed to work and are fully compatible with the products produced by OpenBuilds.
