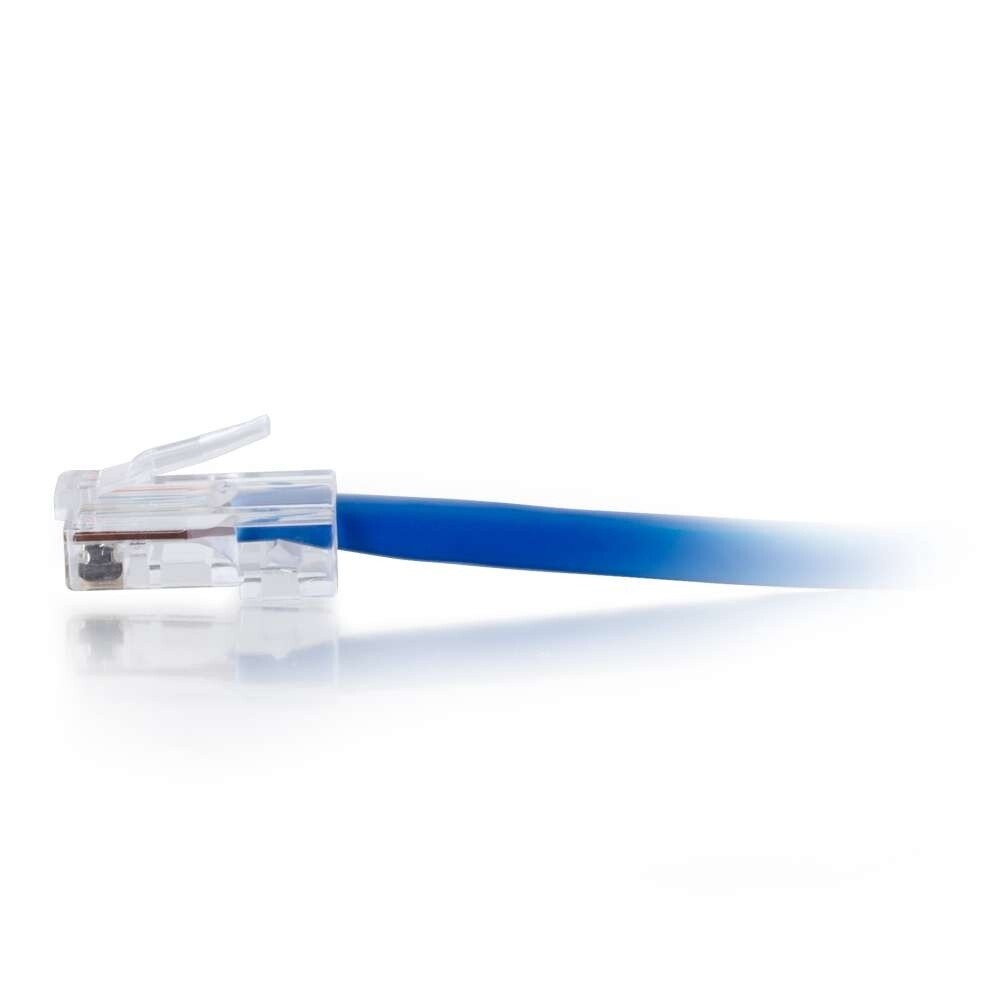

35ft (10.7m) Cat6 Non-Booted Unshielded (UTP) Ethernet Network Patch CableCat6 Non-Booted Patch Cable Series

For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. Available in a variety of colors to easily color-code your network installation.

Connector 1: (1) RJ-45 Male

Connector 2: (1) RJ-45 Male

Features

• Designed for network adapters, hubs, switches, routers, HDBaseT applications and more

• Supports 10 Gigabit networks up to 180ft for fast data transmission and maximum performance and supports 1 Gigabit up to 328ft

• Meets all Cat6 TIA/EIA requirements for supporting a wide variety of applications

• Constructed with unshielded twisted pair (UTP) wires, designed to counter EMI, RFI, and crosstalk

• Available in a variety of colors to color-code a network

Specifications

General Info

Type

Cable

Application Sector

Commercial, Industrial, Residential

Product Line

C2G

Country Of Origin

Vietnam

Features

PoE (Power Over Ethernet)

Warranty Type

Lifetime

Dimensions

Cable Length

35 ft

Product Length US

35.0 FT

Listing Agencies / 3rd Party Agencies

CE Certified

Yes

REACH Compliant

Yes

Additional Technical Specifications

Electrical Specifications

Conductor DC Resistance - 9.38#/100m (maximum)

Impedance - 100#

Capacitance - 5600pf/100m

Propagation Delay - 545ns/100m (maximum)

Delay Skew - 45ns/100m (maximum)Physical Specifications

Wiring Scheme - T568B

Temperature Rating - 75°C

Voltage Rating - 30V

Approvals - CE

Warranty - Lifetime

Package Type - PolybagConductor (4 pair):

Conductor - 24AWG (7/0.20 BC)

Insulation - HD-PE ID: ø0.98±0.05

Twist Pair - Orange, White/Orange, Blue, White/Blue, Green, White/Green, Brown, White/BrownConductor (Qty 2):

Connector Type - 8P8C (RJ45)

Gender - Male

Contacts - Gold Plated 50µOverall Jacket:

Jacket - PVC

OD - 6.0±0.15

Certifications

• NDAA 889

• Prop 65

• REACH

• ROHS

• TSCA
