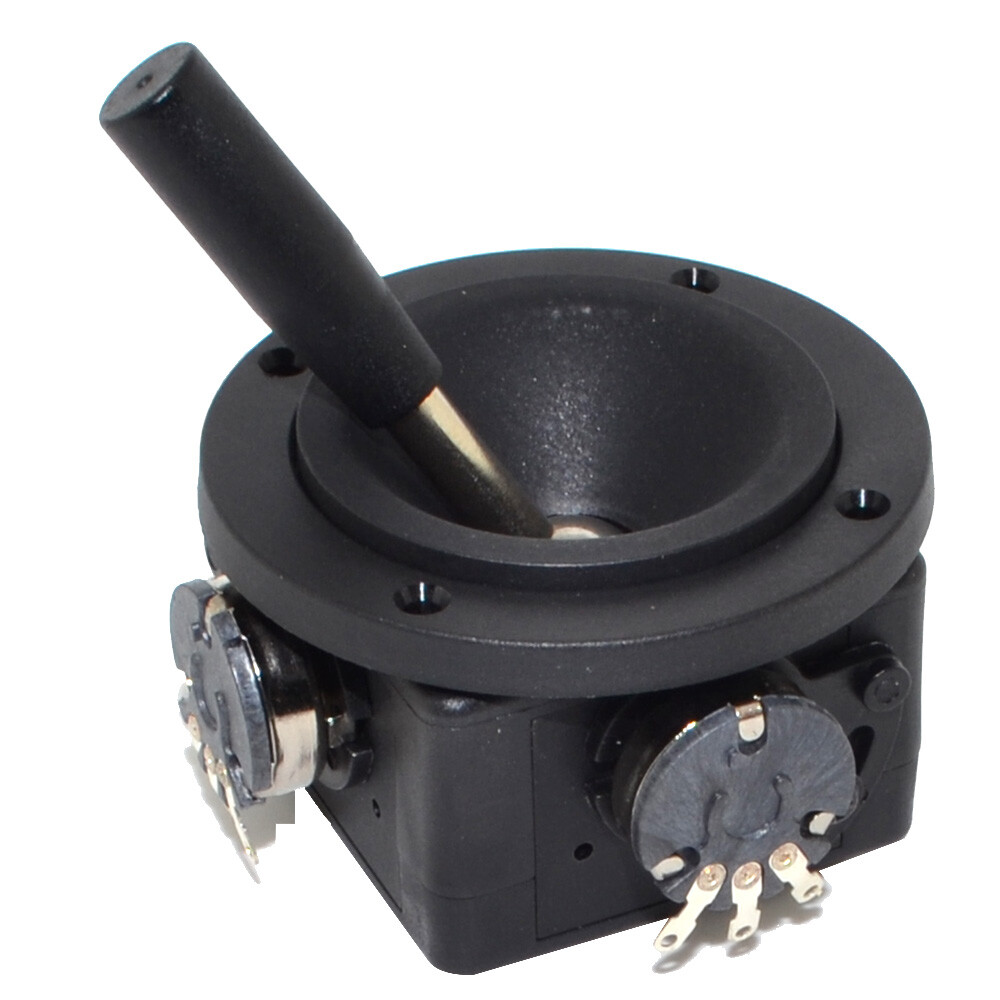

360 Degree 2-axis Sealing 2D 10K Electric Joystick Potentiometer Won't Reset
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
360 Degree 2-axis Sealing 2D 10K Electric Joystick Potentiometer Won't Reset
Price: CN $15.45
Electrical Characteristic:
  • Resistance Value: 10K
  • Resistance Angle: 50°
  • Resistance Tolerance: ±10%
  • Independent Linearity: ±1%
  • Resolution: Essentially infinite
  • Temperature Coefficient Resistance: ±400 ppm/°C
  • Output Smoothness: 0.5% Max.
  • X and Y Axis Electricity Corner: ±25°
  • Z Axis Electricity Corner: ±45°
  • D300 Z Axis Potentiometer, D400 Z Axis Potentiometer and Button Switch Lead: AWG28 color coded, silver plated, PTFE insulated lead wirelessstandard length 200mm other lengths on request
  • Insulation Resistance: 50MΩ@500VDC, 60sec.
Mechanical Data:
  • Operate Torque: X/Y 260gf, Z 350gf(1kg=9.8N, 1N=101.972gf,±20gf)
  • Resolution Error Rate: ±1%
  • Lifecycle:500,000 times
  • Operating Temperature: -10~80°C

Package include:
  • 1 x 360° 2-axis Sealing 10K Joystick Potentiometer(Won't Reset)
