Description

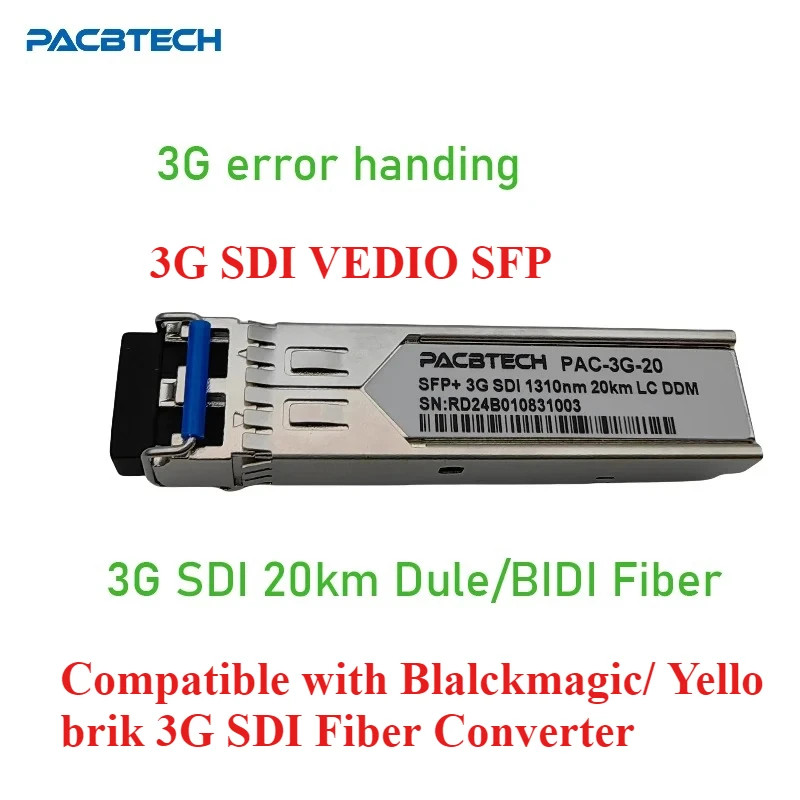

High quality 3G SDI SFP 20km Video SFP Suitable for Blackmagic Design/ Yellobrik 3g SDI Fiber Converter
This 3G SDI SFP is 3G error handling optical module
Order Information :
Dual Fiber 2pcs : 3G SDI SFP 1310nm Singlemode Dual Fiber 20km LC 2pcs ,Video Signal is offerirectional Transmission
1Fiber 1Pair offeri:3G SDI SFP 1310/1550nm Singlemode Single Fiber 20km LC 1pair ,Video Signal is offerirectional Transmission
1Fiber 1Way 1Pair -1Pair :3G SDI SFP 1310nm Singlemode Single Fiber 20km LC 1pair ,Video Signal is single way Transmission ( Signal is from Tx to RX )
Features
◎Up to 10km transmission on SMF
◎1310nm DFB laser and PIN receiver
◎Hot-pluggable SFP+ footprint
◎SFI high speed electrical interface
◎Built-in digital diagnostic functions
◎Single +3.3V power supply
◎Power consumption less than 1.0 W
◎Operating case temperature: -5~+70°C
◎SFP+ MSA package with duplex LC connector
Applications
◎12GBASE-LR/LW 10G Ethernet
◎Other optical links
Standard
◎Compliant with SFF-8472 and SFP+ MSA
◎Compliant to SFF-8431 and SFF-8432
◎Compliant with IEEE 802.3ae 10GBASE-LR/LW
◎Compliant with FCC 47 CFR Part 15, Class B
◎Compliant with Telcordia GR-468-CORE
◎RoHS Compliant
table 1. Regulatory Compliance
Feature
Standard
Performance
Electrostatic Discharge(ESD) to the Electrical Pins
MIL-STD-883
Method 3015.7
Class 1(>1000V for SFI pins, >2000V for other pins.)
Electrostatic Discharge (ESD) to the Duplex LC Receptacle
IEC 61000-4-2
GR-1089-CORE
Compatible with standards
Electromagnetic nterference (EMI)
FCC Part 15 Class B
Compatible with standards
Immunity
IEC 61000-4-3
Compatible with standards
Laser Eye Safety
FDA 21CFR 1040.10 and 1040.11
Compatible with Class I laserproduct
