Ranging chip: VL6180X
Measuring distance: 50CM (Max),Affected by the scaling factor, the effective range is usually 80%-90% of the nominal value. For example, in 2x mode, the real usable range is about 22-38cm.
Measurement dead zone: 0-2CM
Infrared emission mechanism: 850nm
FOV: 25°
Communication mode: IIC
Development routines/software: Arduino Demo STM32 Demo
Operating Voltage: 2.8V(Dc)
Operating current: 40mA (Max)
Operating temperature: -20°C-70°C
Storage temperature: -20°C-80°C

Interface configuration‌: The default I2C address is ‌0x29‌. When networking with multiple devices, you need to pay attention to address conflicts. This can be solved by hardware modification, time-sharing multiplexing or using an I2C multiplexer (such as TCA9548A).
‌Power supply requirements‌: The module has an onboard 2.8V voltage regulator that supports wide voltage input. However, in order to ensure high-precision measurement, it is recommended to add a filter capacitor (100μF electrolytic + 0.1μF ceramic) between VCC and GND, or use an independent LDO for power suppl

Package include:

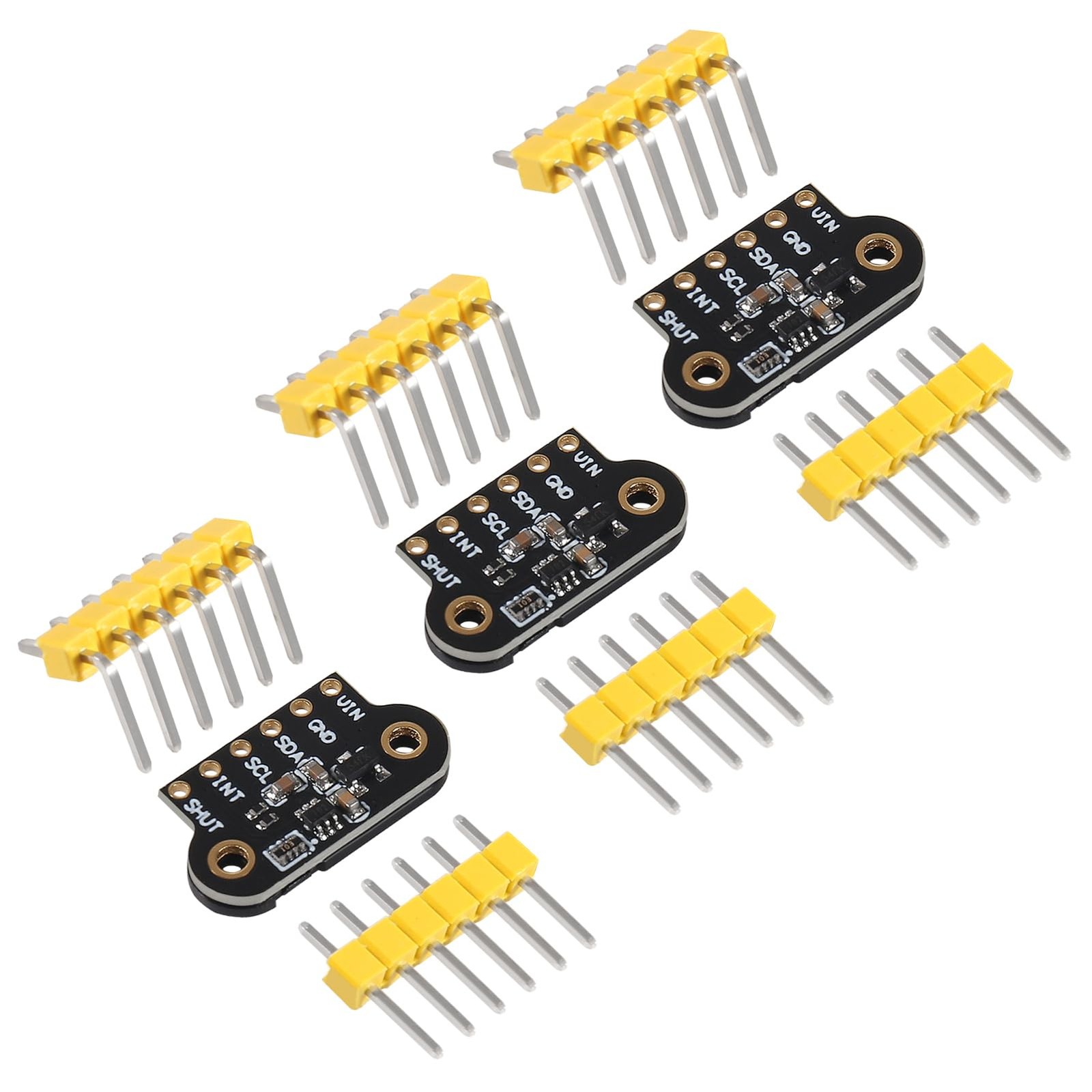

3 x TOF050C VL6180X sensor moduleVL6180X TOF050C sensor module ranging chip: VL6180X; Measuring distance: 50CM (Max),However, in actual engineering, affected by the scaling factor, the effective range is usually 80%-90% of the nominal value. For example, in 2x mode, the real usable range is about 22-38cm.
VL6180X sensor module infrared emission mechanism: 850nm; FOV: 25°; Communication mode: IIC
Dedicated optical cover sheet: 1.Provide physical protection for the module,including preventing dust from entering. 2.Provide optical filtering for the module
Working mode‌: Supports three zoom modes (1x/2x/3x), corresponding to short distance (2-18cm), medium distance (20-40cm) and long distance (40-60cm) measurement respectively. When switching modes, the register parameters need to be recalibrated.
VL6180X sensor module widely use for eletronic altitude; Robot obstacle avoidance; Location detection; collision avoidance
