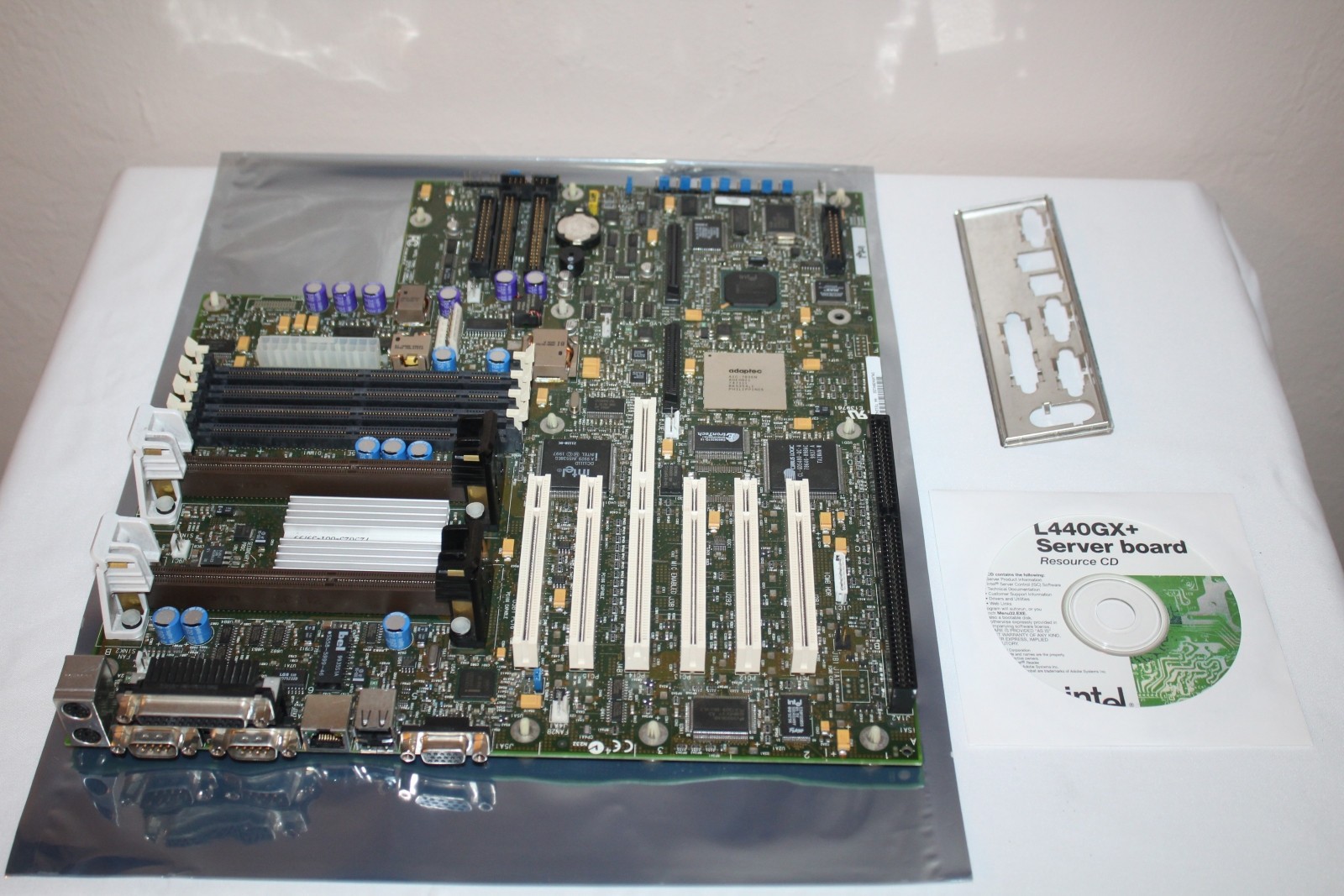

3dfx Quantum3D AAlchemy Heavy Metal GX+ Motherboard. This is an Intel L440GX+ server motherboard. Used in good condition. Tested and working. Comes with the backplate. I do not have the original Quantum3D software disk, but I will include a CD-R copy of an Intel L440GX+ software disk that has all the necessary drivers. Comes with only the motherboard, back plate, and disk as shown in the photos.Major features of the L440GX+ Server Board (from the Intel manual):Volume server platform based on the Intel® Pentium® II and Intel Pentium® III Processor. On the L440GX+, these processors operate with a 100MHz front side bus. The L440GX+ provides two 100MHz 242-contact slot connectors.
Using dual processors, the system is fully MPS (Multi-Processor Specification) 1.4 compliant (with appropriate Pentium® II and Pentium® III extensions). In addition, support is provided for MP operating systems that may not be fully MPS 1.4 compliant.
System design based on Intel® 440GX AGPset, PIIX4e, and I/O APIC devices.
100MHz main memory interface supporting up to 2GB of PC/100-compliant commodity SDRAM DIMMs. (ECC and Non-ECC)
PCI I/O system, compliant with revision 2.1 of the PCI specification.
Integrated Adaptec* 7896 PCI dual-port SCSI controller providing separate Ultra2 and Ultra wide SCSI channels.
Integrated Intel® EtherExpress™ PRO100+ 10/100Mbit PCI Ethernet controller with integrated physical layer (Intel® 82559).
NIC Teaming Features.
Cirrus Logic* GD5480 High performance 2D PCI video controller with 2MB of SGRAM Onboard.
PCI IDE controller (in PIIX4E) providing dual independent Ultra DMA/33 IDE interfaces, each able to support two IDE drives.
4 – PCI 33 MHz, 5 Volt, 32-bit expansion slots.
2 – PCI 33/66 MHz, 32-bit, “Universal” expansion slots.
1 ISA expansion slot. (Not shared).
0-channel RAID expansion slot – specific support for Adaptec* 1130U2 RAIDPort III Raid Card only.
Compatibility I/O device integrating floppy, serial and parallel ports.
Integration of server management features, including thermal, voltage, fan, and chassis monitoring into one controller.
Dual Universal Serial Bus (USB) ports.
Emergency Management Port (EMP).
Platform Event Paging (PEP).
Flash BIOS support for all of the above.From the Quantum3D Heavy Metal manual:Congratulations on choosing a Quantum3D Heavy Metal Visual Computing Platform from Quantum3D, Inc. From the motherboard to the graphics subsystem, Heavy Metal GX+ and Heavy Metal BX represent the latest in PC technology. Quantum3D Obsidian2, Mercury and AAlchemy graphics systems coupled with Intel’s latest L440BX and L440GX+ motherboards, offer unsurpassed graphics bandwidth and performance.The Heavy Metal product family name is derived from the motherboard and graphics products used at its foundation. Heavy Metal GX+ Mercury and AAlchemy contain Quantum3D hardware for full scene anti-aliasing and utilize the Intel L440GX+ motherboard (GX+). Heavy Metal BX Iron utilizes the Quantum3D Obsidian2 200Sbi (Iron) and the SuperMicro P6DBS motherboard (BX Chipset).Heavy Metal systems provide scalability, use an open systems architecture, and can be easily upgraded. Heavy Metal systems offer a high degree of reliability through individual, highly integrated performance components designed by the leaders in the PC industry. Quantum3D systems can be configured as multichannel systems using a Shared Channel or Distributed Channel architecture.Quantum3D Heavy Metal BX and GX+ are PC systems specifically designed for deployment into any environment, including the most hostile. Heavy Metal visual computing platforms can be used as stand alone visual computing platforms, or can be configured as a single multi-channel system by adding easily integrated components. Each system can be configured and upgraded with a range of cost effective, high performance RAM, media and 3D graphics options.
