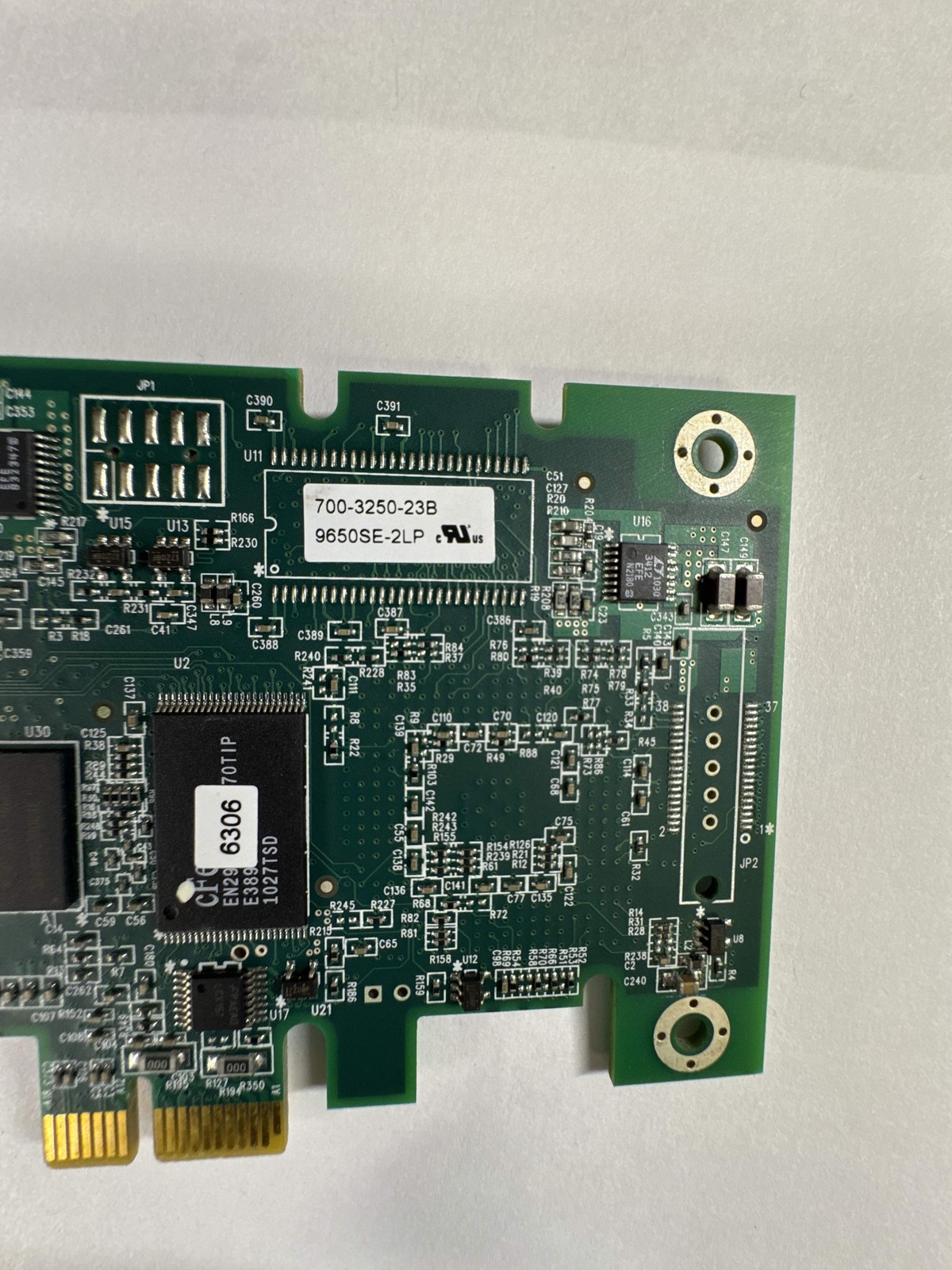

3ware 9650SE-2LP RAID Controller 2-Port SATA II PCI Express x1 Hardware RAID Card Product Description
The 3ware 9650SE-2LP is a high-performance SATA II hardware RAID controller designed for servers and workstations requiring data protection and increased performance in a compact footprint. Featuring the AMCC PowerPC processor and StorSwitch non-blocking switched architecture, this controller provides true hardware RAID 0 and 1 parity calculations, offloading the task from your system's CPU.
This low-profile MD2 form factor card is ideal for 1U/2U servers and small form factor (SFF) desktops. It features two internal SATA ports supporting 3.0 Gb/s transfer speeds and includes 128MB of onboard DDR2 cache memory.
Technical Specifications
- Brand: 3ware (AMCC)
- Model: 9650SE-2LP
- Part Number: 700-3250-23B
- Bus Interface: PCI Express x1 (PCIe x1)
- Storage Interface: SATA II (3.0 Gb/s)
- Internal Ports: 2x SATA
- RAID Levels: RAID 0, 1, JBOD, Single Disk
- Cache Memory: 128MB DDR2 533MHz
- Processor: AMCC PowerPC PPC405CR
- SATA Controller: Marvell 88SX6041
- Form Factor: Low-Profile MD2
- PCB Revision: 500-3250-02 Rev.A
System Compatibility
Compatible with any motherboard or server featuring an available PCI Express x1, x4, x8, or x16 slot. Supports legacy operating systems including Windows Server 2003/XP/2000, various Linux distributions (Red Hat, SuSE, Fedora), and FreeBSD. Designed for use with standard SATA I and SATA II hard drives or SSDs.
Condition Note
Used - Excellent Working Condition
This RAID controller has been pulled from a working environment. It has been visually inspected for component integrity. Minimal surface wear may be present on the PCB or stickers consistent with normal hardware handling. Listing includes the controller card only; cables and bracket are not included.
Professional server hardware components for enterprise storage solutions.
