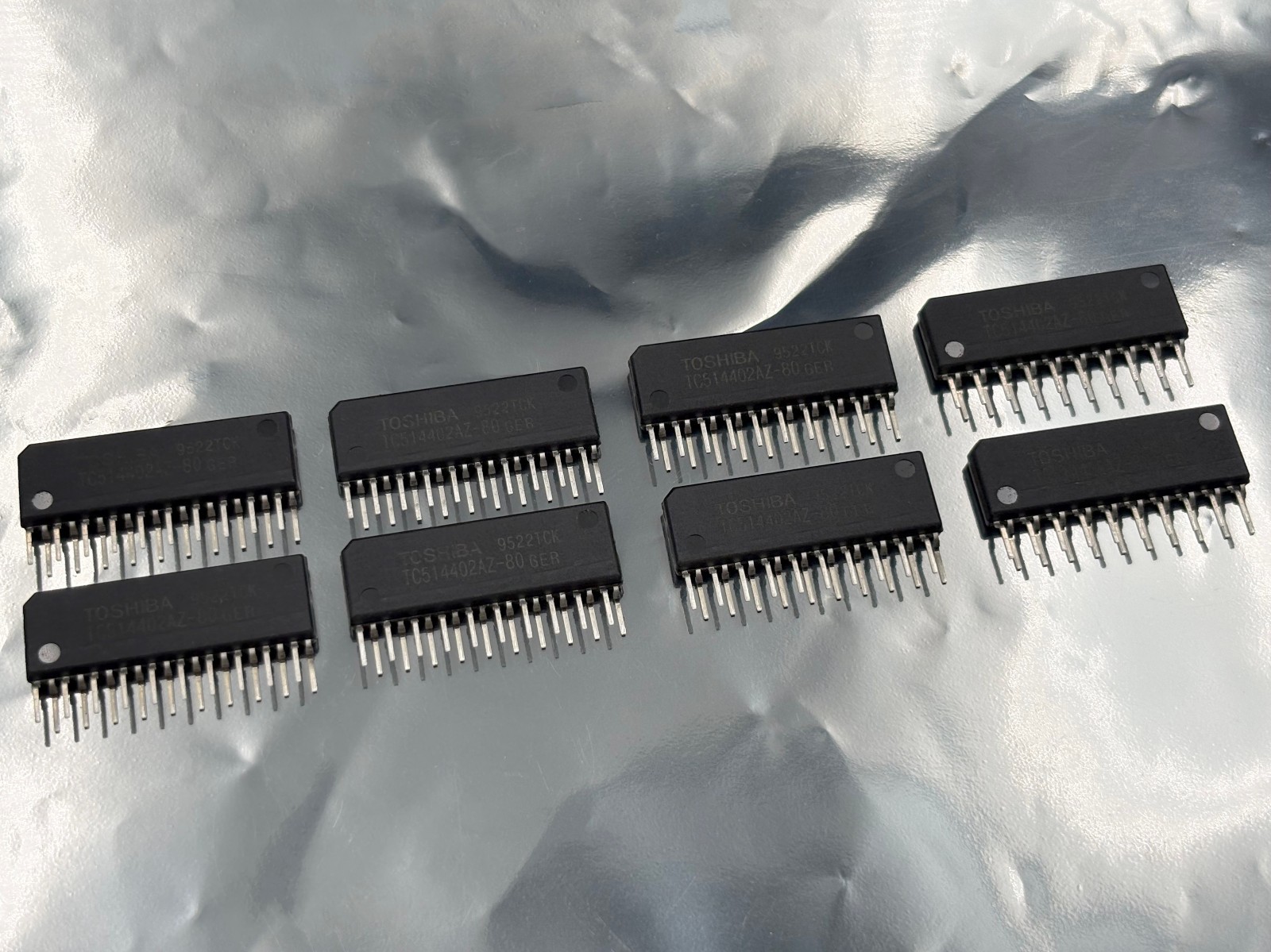

Product OverviewUpgrade yourCommodore Amiga 3000 withStatic Column ZIP RAM chips. This kit provides 4MB of 32-bit Fast RAM (8 chips), specifically designed to leverage the unique architecture of the A3000.Unlike standard Page Mode ZIPs, these Static Column chips allow the 68030 CPU to perform burst-mode memory cycles, providing a measurable performance boost in system-heavy applications and multitasking. This typically results in a 10% speed increase over Fast Page Mode (FPM) ZIPs.These chips are clean pulls with no bent or broken pins and have no evidence of relableing. They have been stored in ESD-safe packaging.
History
The Amiga 3000 can be upgraded on the motherboard up to 16MB Fast RAM and 2MB Chip RAM.Many Amiga 3000 systems shipped with1MB of Fast RAM (installed in DIP sockets) and1MB of Chip RAM (soldered) and eight DIP sockets for increasing chip RAM to 2MB. Commodore's intended upgrade path for these machines was for the user to move the 1MB of DIP Fast RAM into the empty Chip RAM sockets (to reach the 2MB Chip RAM maximum) and then populate the ZIP sockets with higher-density memory like this 4MB kit.
Technical Specifications

• Part Number: Toshiba TC514402AZ-80
• Quantity: 8 chips (1 Bank of 4MB)
• Capacity: 1M x 4-bit per chip
• Speed: 80ns (Optimized for stock 16MHz and 25MHz A3000 systems)
• Package Type: ZIP-20 (Zig-zag In-line Package)
• Mode: Static Column Mode (Supports 68030 Burst Access)

Compatibility & Installation

• Target System: Commodore Amiga 3000 (Desktop or Tower).
• Motherboard Jumper: To use these 1Mx4 chips, ensure jumper J852 is set to the correct position (typically pins 1-2 for 1M chips).
• Bank Population: A3000 Fast RAM is populated in banks of 8 chips. This set will fill one full bank.
• Total Capacity: The A3000 supports up to 16MB of ZIP RAM (32 chips total).

The 32 ZIP sockets correspond to four banks (0-3). Each bank provides either 1MB (using 256Kx4 chips) or 4MB (using 1Mx4 chips).Bank
SocketNotesBank 0 U850 - U857Shared with DIP RAM sockets U850D-U857D. Do not use both simultaneously.Bank 1U858 - U865Must be populated after Bank 0 is filled.Bank 2U866 - U873Must be populated after Bank 1 is filledBank 3U874 - U881Final bank for a total of 16MB (using 1Mx4 chips).----
I typically ship next day after payment is received. Items will be securely packed with plenty of padding.I'm happy to provide additional photos of anything - just message me. I'm also here to answer any questions before or after your purchase.
