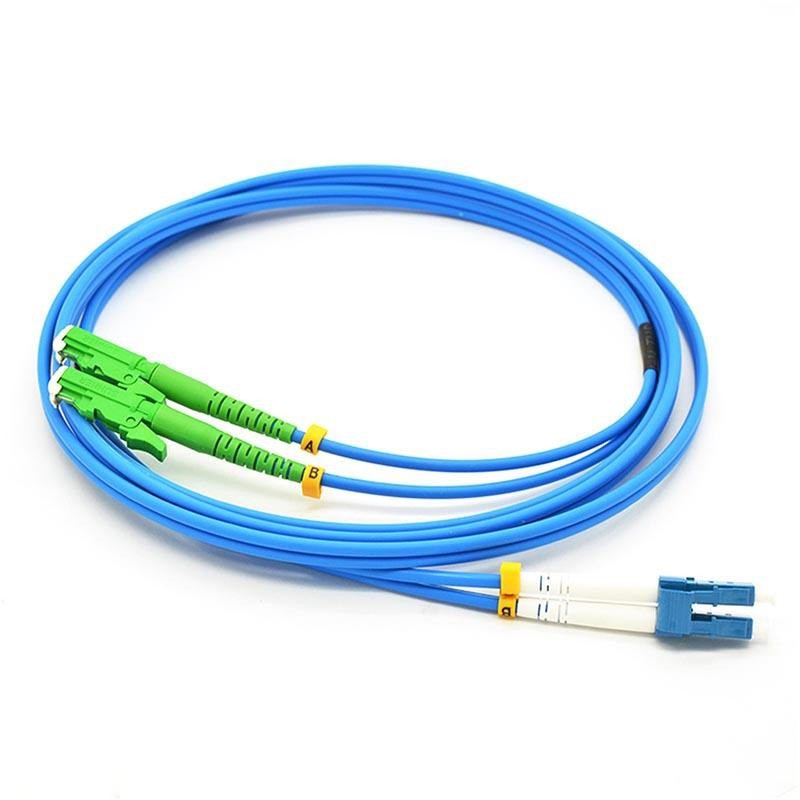

50M~200M FTTH E2000 APC-LC UPC Armored Fiber Cable Duplex Fiber Optic Patch Cable
Description:
Note: If you need thecustomized connector and cudtomized length, pls contact with me.
Description:
A fiber optic patch cord is constructed from a core with a highrefractive index, surrounded by a coating with a low refractive index, that is strengthened byaramid yarnsand surrounded by a protective jacket. Transparency of the core permits transmission of optic signals with little loss over great distances. The coating's low refractive index reflects light back into the core, minimizing signal loss. The protective aramid yarns and outer jacket minimizes physical damage to the core and coating.
Armored fiber optic patch cord uses flexible stainless steel tube inside the outer jacket as the armor to protect the fiber glass inside. It retains all the features of standard patch cord, but is much stronger. It will not get damaged even if stepped by an adult and they are rodent-resistant.
Applications
1.Price-Competitive
2.Low Insertion Loss,Low Back Reflection,High Return Loss
3.Factory-terminated and Tested
4.Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber
5.Connector Options: FC/SC/LC/ST/MU/E2000/MTRJ/MPO/MTP
6.Polishing Options: PC/UPC/APC
7.Feature Connector with Ceramic Ferrules
8.Good Interchange,Good Durability,Good Repeatability;
9.Excellent environmental adaptability
10.Compliant with CE,ROHS,FCC
11.Fiber Mode: Single-Mode (SM: 9/125um)/Multimode (MM: 50-62.5um/125um)
Specifications
Fiber Optic Patch CordFC SC ST
Fiber ConnectorLC MU MTRJ E2000
Item
Mode
PC
UPC
APC
PC
UPC
APC
Insertion loss
SM
≤0.2dB
≤0.2dB
≤0.2dB
≤0.2dB
≤0.2dB
≤0.2dB
MM
≤0.3dB
≤0.2dB
-
≤0.3dB
≤0.2dB
-
Return loss
SM
≥45dB
≥55dB
≥65dB
≥45dB
≥50dB
≥60dB
MM
≥35dB
≥35dB
-
≥35dB
≥35dB
-
Repeatability
≤0.1dB
≤0.1dB
Interchangeability
≤0.2dB
≤0.2dB
Operating temperature
-40℃~+75℃
-40℃~+75℃
Storage temperature
-40℃~+85℃
-40℃~+85℃
