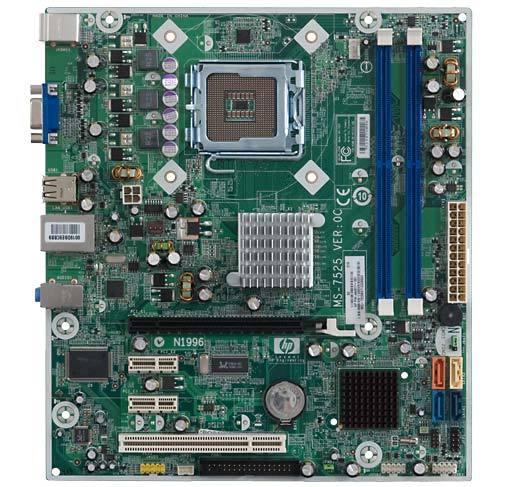

Untitled Document NEW HP 517069-001 ( HP/Compaq Boston-GL6 ) MSI MS-7525 Desktop Motherboards OEM NOTE: In stock, Fast ship. Item Brand New Originally from HP with OEM pack. For Tech info, Please visit the HP Website Motherboard description
- Manufacturer's motherboard name: MSI MS-7525
- HP/Compaq name: Boston-GL6
Form Factor
- Micro-ATX: 24.4 cm (9.6 inches) x 21.9 cm (8.6 inches)
Chipset
Front-side bus speed
- 800/1066/1333 MHz (processor dependent)
Processor upgrade information Socket type: 775 Motherboard supports the following processor upgrades:
- Core 2 Duo E7xxx (Wolfdale-M)
- Core 2 Duo E4x00 (Conroe)
- Pentium E2xxx series (Conroe)
- Celeron Dual Core E1xx0 series (Conroe)
- Celeron 4xx series (Conroe)
Memory upgrade information
- Dual channel memory architecture
- Two 240-pin DDR2 DIMM sockets
- Supported DIMM types:
- PC2-5300 (667 MHz)
- PC2-6400 (800 MHz)
- Non-ECC memory only, unbuffered
- Supports 2GB DDR2 DIMMs
- Supports up to 4 GB* on 32 bit PCs
- 32 bit PCs cannot address a full 4.0 GB of memory.
Video Integrated graphics using Intel GMA 3100
*Integrated video is not available if a graphics card is installed.
- Integrated graphics using Intel GMA 3100
- Also supports PCI Express x16 graphics cards
Audio Integrated Realtek ALC662 Audio
*Integrated video is not available if a graphics card is installed.
- Audio CODEC: Realtek ALC662
- 5.1 channel high-definition audio
