Product Overview

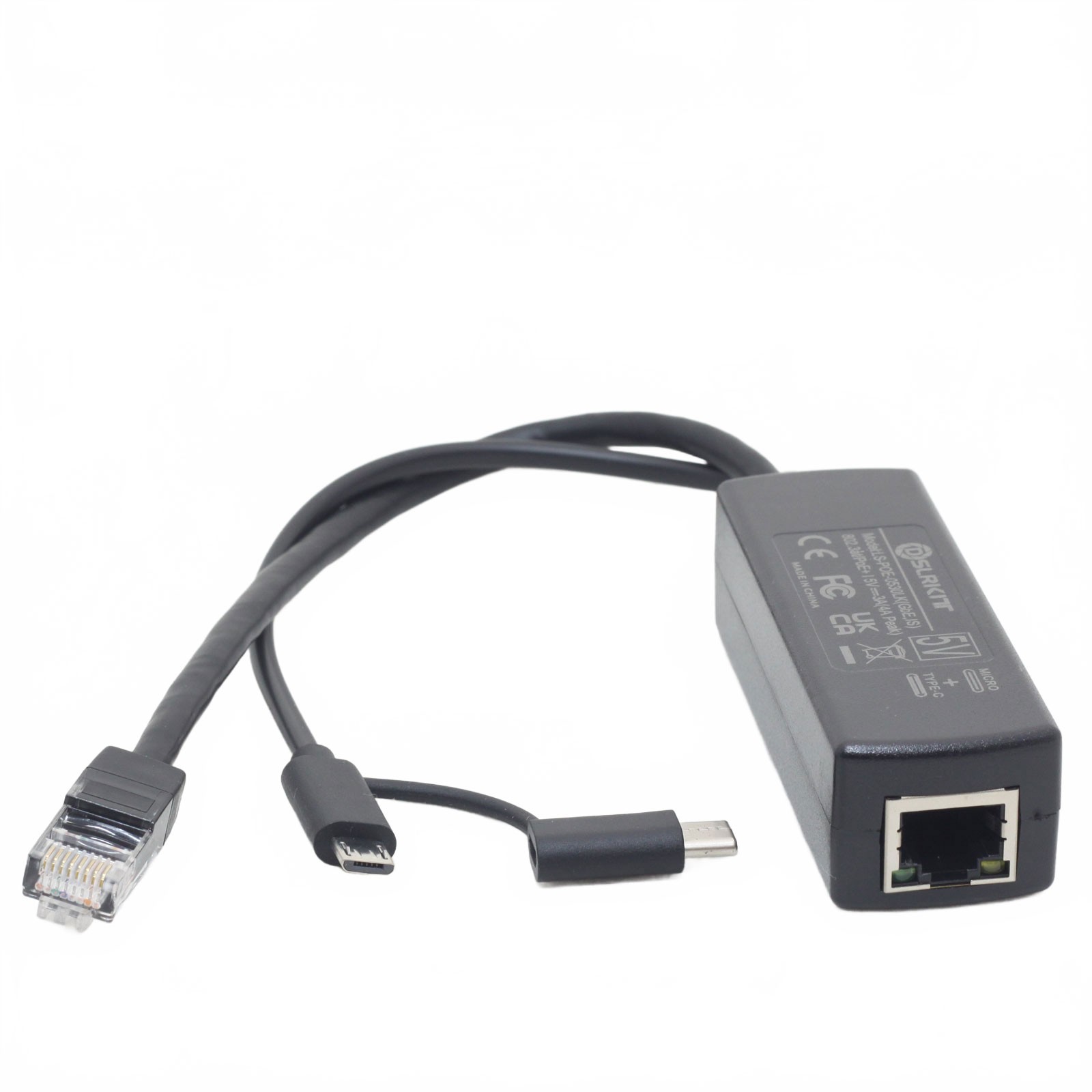

This Gigabit PoE splitter delivers a regulated 5V 3A power output via microUSB and includes a microUSB to USB-C adapter, making it compatible with both older microUSB-powered devices and modern USB-C powered devices such as Raspberry Pi 3/4/5, Jetson Nano, and other Type-C IoT boards.
It supports IEEE 802.3at (PoE+)power input, offering stable performance with up to 4A peak current during short power bursts, such as device startup. Internal 2.5kV isolation provides enhanced protection for both the powered device and network equipment.
Note: While compatible with IEEE802.3af, using this splitter with af-standard PoE sources may trigger overload protection due to limited 15.4W power. For best results, use with 802.3at or 802.3bt sources.
Key Features
-
5V 3A regulated output with peak support up to 4A (short duration)
-
Dual power interface: microUSB native + included microUSB to USB-C adapter
-
Compatible with Raspberry Pi 3/4/5, Jetson, Arduino, ESP32, and more
-
Supports IEEE802.3at (PoE+)
-
Full 10/100/1000Mbps Ethernet passthrough
-
Built-in 2.5kV electrical isolation
-
Compact, plug-and-play design
Technical Specifications Specification Details Supported Standards IEEE 802.3af / 802.3at / 802.3bt(Use with 802.3af only if power demand ≤12W; overload risk exists above 15.4W) Input Voltage DC 44~57V Output Voltage 5V Rated Output Current 3A Peak Output Current Up to 4A (short-term only) Power Output Port microUSB (plus microUSB to USB-C adapter included) Data Input Port RJ45 Female (PoE IN) Data Output Port RJ45 Male (Data only) Data Transfer Rate 10/100/1000 Mbps Isolation Protection 2.5kV Dimensions 80 × 27 × 22 mm DC Cable Length 165 mm RJ45 Cable Length 155 mm Operating Temperature -20°C ~ 45°C Storage Temperature -30°C ~ 70°C Weight 60 g (including adapter) Package Includes
