Introduction:

Support for the Arduino IDE 1.0+ (OSX/Win/Linux)

1. Power via USB or External Source - 5v or 7-35v (12v or less recommended,

automatic selection)

2. On-board 500ma 5V Regulator

3. Built-in USB

4. 26 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)

5. 8k Flash Memory (about 6k after bootloader)

6. I2C and SPI

7. 26-PWM (26 pins with Software PWM,only two(D9,D10) with hardware PWM )

8. ADC on 8 pins

9. Power LED and Test/Status LED

10. Size(mm):44.5x18.3x3

Package : 5pcs

Support for the Arduino IDE 1.0+ (OSX/Win/Linux)

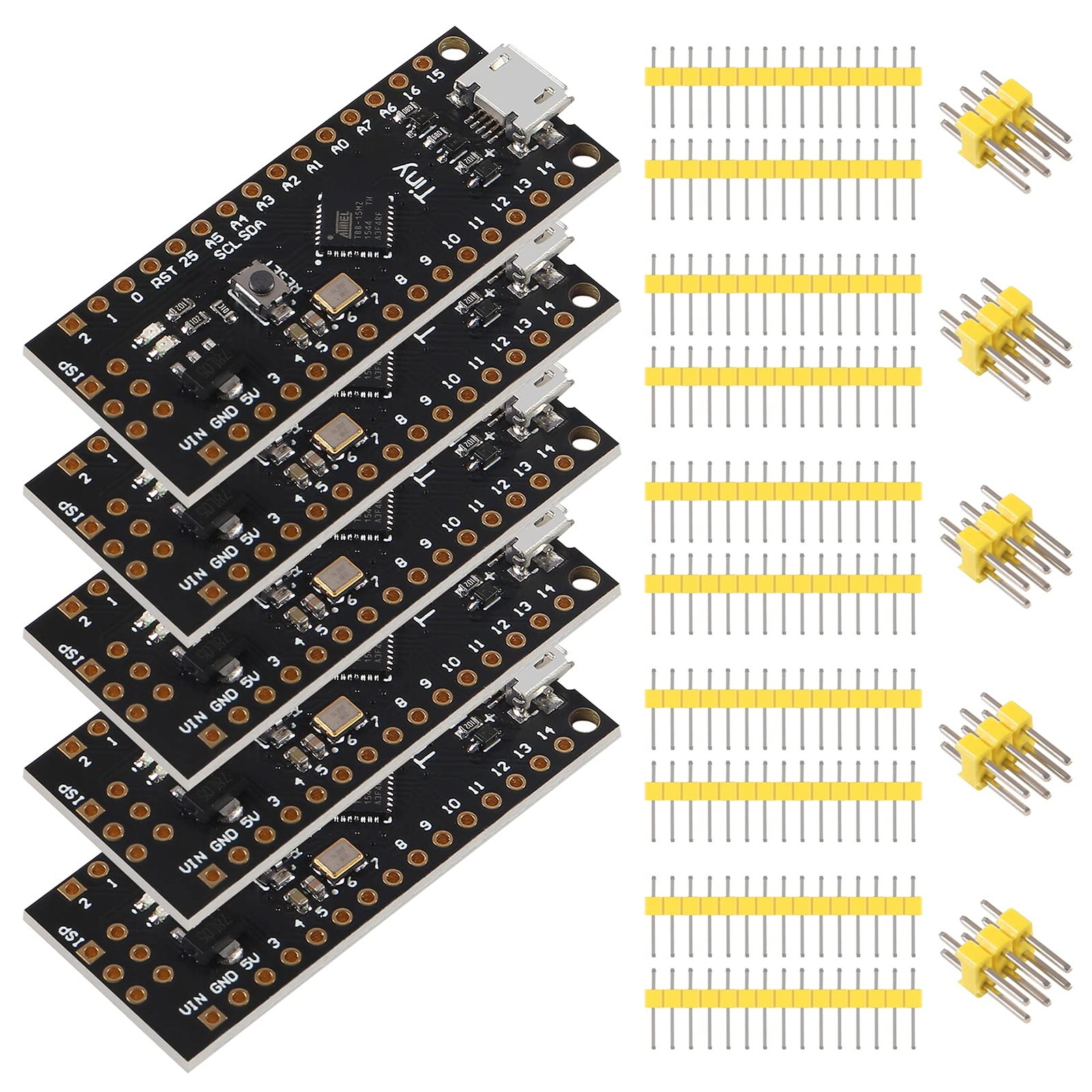

The MH-ET LIVE Tiny88(16.0Mhz) is shipped fully assembled except for the headersincluded and easy to solder them by yourself
Power via USB or External Source - 5v or 7-35v (12v or less recommended, automatic selection)
On-board 500ma 5V Regulator
