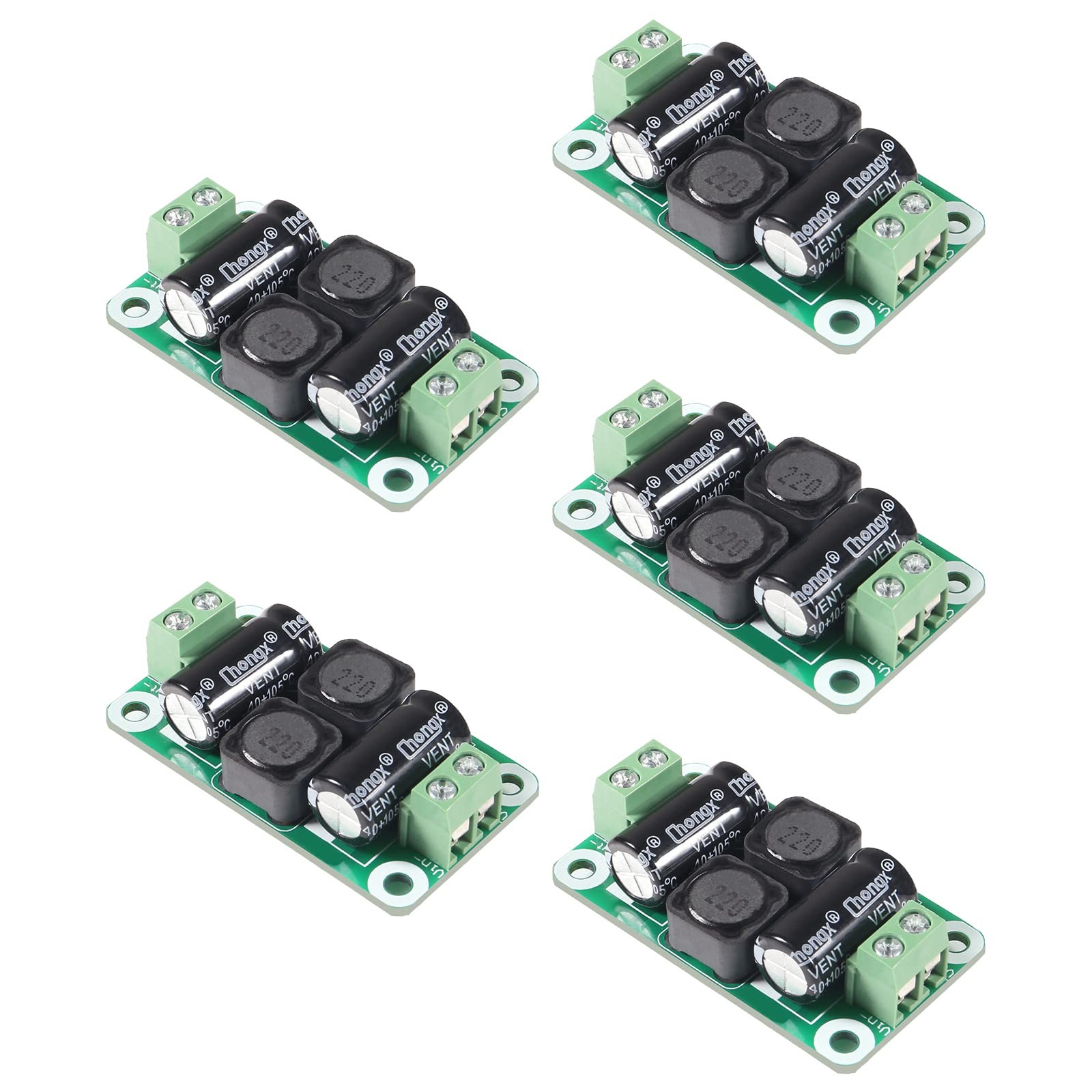

5 pcs 0-50V 4A DC Power Supply Filter Board Class D Amplifier Car EMI Suppression
Features:
- This board adopts the principle of the common differential mode lc, which can suppress interference in the switching power supply or other dc power supply.
- Reduce the ripple of the power supply, and reduce the interference brought by the power supply.
- Can be used in low voltage (0 v 50 50 v) dc power supply circuits, such as power amplifier board, vehicle equipment, industrial control board, dc electrical appliances, etc.
- The circuit is flexible to use. When the suppression effect does not meet the requirements, it can be connected in series on several levels to increase the inhibiting capacity.
- When the working current of the board does not meet the requirements, it can be connected in parallel with several blocks to increase the output current.
- For the circuit board using positive and negative power supply, two blocks can be overlapped to form a positive and negative energy interference suppression board.
- The board can be divided into two voltage specifications, 0 25 25 v, 0 50 50 v. The combined filter plate can be selected according to the working voltage range used.
- The current of the tpa3116 machine makes the energy input more pure, so the amplifier is less noisy.
- Low voltage dc (0 v 50 50 v)
Terminal Description:
Vin +: positive end of
Vin- input: negative of
Vout + input: positive end of
Vout- output: negative output
Packet Contains:
5pcs x 0-50V 4A DC Power Supply Filter Board Class D Amplifier Car EMI Suppression
❃❃【DC 0-50V 4A Power Filter】 : 0-50V 4A DC Power Supply Class D Filter Board Car Amplifier EMI be used in low voltage (0 v 50 50 v) dc power supply circuits, such as power amplifier board, vehicle equipment, industrial control board, dc electrical appliances, etc.
❃❃【Features】This board adopts the principle of lc common differential mode, which can suppress interference in switching power supply or other DC power supply
❃❃【Size】: Made of high quality materials, it is comfortable，delicate design and high quality
