OVERVIEW

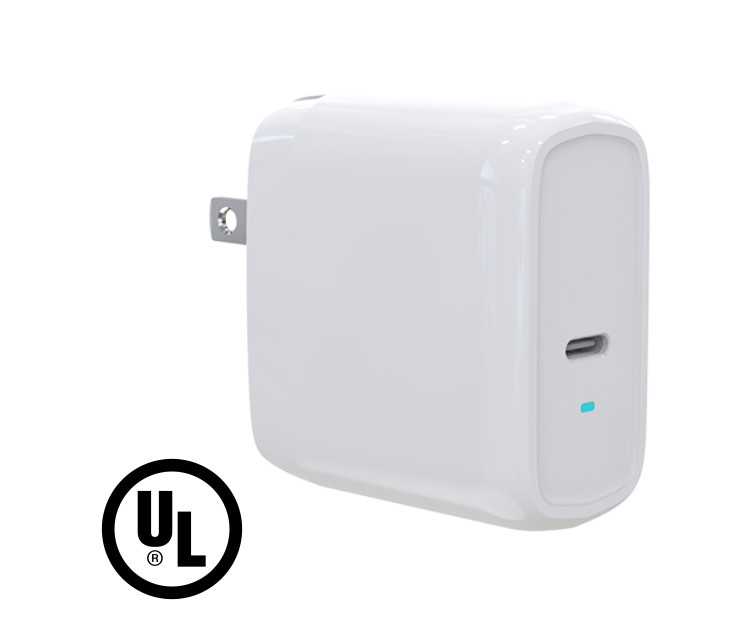

This UL Rated (E530798) MacBook Pro 13" portable charger with Type-C port output supports 65W of high speed charging and is also compatible with various PD protocols (such as iPhone and other smart phones) and other Laptop brands.
Includes - High Quality 65Watt 2 meter USB-C Cable
FEATURES
Internal chip allows the 100-240VACof input voltage.
The each port supports 65W.
Accurate limited current output, overload protection and auto restart after troubleshooting make the product safer, and you are at ease to use.
Over Current Protection
Over Voltage Protection
Short Circuit Protection with Auto-recovery
Over Temperature Protection with Auto-recovery
Compatible with FCC?DOE?CEC
This product shell is made of fireproof material.
Smart and convenient to use.
CONNECTION DIAGRAM
OPERATION
Operation Procedures
1.Plug the travel charger into a socket.
2.Plug one Type-C connector of the cable into the Type-C interface of travel charger and plug the other connector of the cable into the electronic device (mobile phone,MP3,tablet,PC,etc)
3.Please unplug the travel charger after the electronic device is fully charged.
Operation Notes
1.For optimum performance, please use the travel charger according to the user manual.
2.Please plug the travel charger into socket which voltage range should be 100-240VAC.
3.Please unplug the travel charger after using.
Note: Our products have protection functions and the two tips above are suggestions just for safety.
4.Do not use the travel charger with an electronic product which is not in conformity with the specifications, so as to avoid any problem caused by specification mismatching.
5.It?s normal that travel charger will be a little overheated in the use process.
6.When the travel charger stops working under over-current, over- temperature or short-circuit protection, please unplug the device after it automatically returns to work, then you need to check whether the device is compatible with this charger.
7.Do not let the travel charger close to fire, such as stove, candles and etc.
8.Do not let the travel charger soak into liquid, such as swimming pool, bathtub, etc.
9.Do not wash the travel charger with corrosive cleaner.
10.If the travel charger cannot work properly, please contact the store or distributor in your area.
SPECIFICATIONS
Input
100~240V AC 50/60Hz 1.7AMax
Input Frequency
50/60Hz
Standby Input Power
0.1W
Output
Over Current Protection
Yes
Over Voltage Protection
Yes
Over LoadProtection
Yes
ShortCircuitProtection
Yes
Over Temperature Protection
Yes
Port
Type-CPort
Socket
/
OperatingTemperatureRange
0~25°C
StorageTemperatureRange
-20 ~ 85°C
Operating Relative Humidity
20%~90% RH
StorageRelative Humidity
5%~95% RH
RippleAndNoise
?250mVp-p
Rise Time
20ms
Turn-on Delay
3s
Line Regulation
±2%
Efficiency
5V Output?81.38%
9V Output?86.6%
12V Output?87.3%
15V Output?87.7%
20V Output?87.53%
Color
White
Size(L*W*H)
50mm*28.7mm*26.2mm
Weight
92±5 g
Certification
FCC?DOE?CEC
