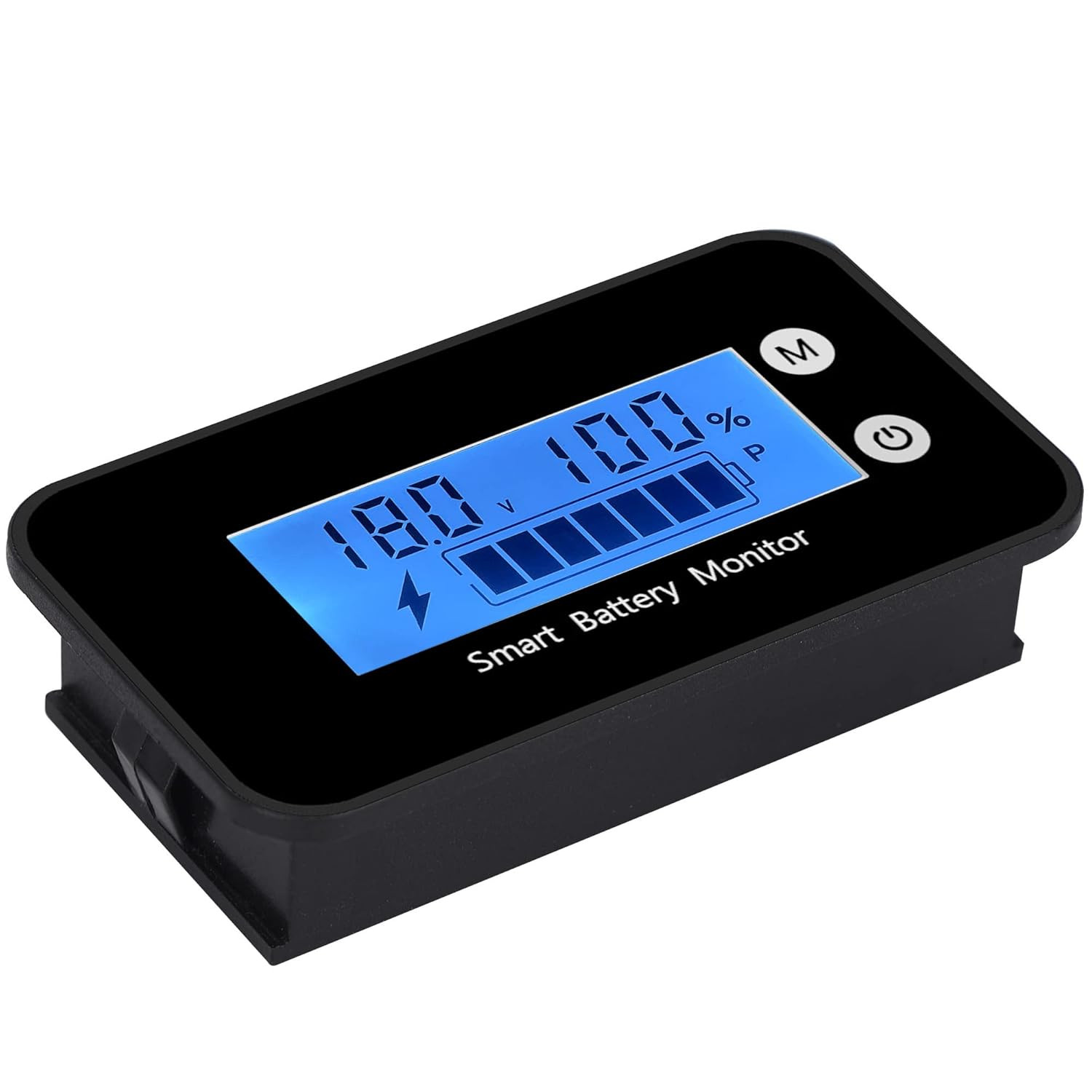

7-100V IPX7 Waterproof Battery Monitor Blue LCD with Buzzer Alarm &Temp

Product description IPX7 Waterproof Battery Monitor (Blue) Product introduce

The smart battery monitor with multiple functions.

• IPX7 Waterproof,It can be used indoor and outdoor.
• The battery monitor not only can test voltage but also remaining capacity of battery and temperature (short press"M" key to switch temperature and voltage).
• The battery monitor can set low and high voltage Buzzer alarm.
• The battery monitor testing range is 7-100V and can be used for 12v 36v 48v 60v 72v 84v batteries including Ternary lithium battery, lead-acid battery, lithium iron phosphate battery etc.
• The battery tester with power-off memory function, it can retain settings when power is removed.
• The battery can be used for car, motorcycle，golf cart, boat ,electric bikes etc.

Note:

• The temperature shows Celsius, not Fahrenheit.
• You must be make a simple setting for it according to instructions after getting to the product.otherwise the capacity of battery will always shows 100%!

• The wires length are 60cm(23.62inches) and the red wire for the positive and the black wire for the negative of the battery.

• Short press"M" key to switch temperature and voltage.
• The battery monitor can set low and high voltage Buzzer alarm.
• The battery tester with power-off memory function, it can retain settings when power is removed.
• The "M"key is a setting key and the power key can turn on and turn off the battery monitor.

• The battery monitor Product Dimension is 64*36*15.3mm(2.5*1.4*0.6inches).and the Install Dimension is 58*28mm(2.28*1.1inches).
• The shell designed with buckles if you open hole installation,

• IPX7 Waterproof,It can be used indoor and outdoor.

• The panels are grey and white back-light black font .

• The battery tester not noly can display Voltage,remaining capacity and Percentage but also can display Temperature(Celsius) of battery.
• Short press M button can switch Voltage and Temperatuer.
• The battery monitor can set low voltage and high voltage buzzer alarm.

• The battery monitor can be used for Ternary lithium battery, lead-acid battery, lithium iron phosphate battery etc. Default 12 volt lead acid battery .It can be used just only the voltage is 7-100V.
• The battery testers can be used for testing voltage and capacity of battery for electric motorcycle, motorcycle，golf cart, automotive , car, marine, RV, boat, etc.

• The back of the battery monitor is fully closed and flat.you also can install it use double-sided adhesive.

• The red wire for the positive and the black wire for the negative of the battery.
• The battery monitor with reverse connect protection.

Parameter Measuring range DC7-100V Working current <10MA Product Dimension 2.5*1.4*0.6inches Install Dimension 2.28*1.1inches Display Mode LCD Product weight 25g（0.88 ounce） Operation Temp 14F~140F Measurement accuracy 0.5% Waterproof levle IPX7 Q&A

1.Does the battery monitor come with a battery? Is it easy to wire?‌

A.No, the battery monitor does not include a battery. Simply connect the red wire to the positive terminal and the black wire to the negative terminal of the battery for display.

2.Is setup required after receiving the product?‌

Yes, the battery monitor is compatible with all battery types (7-100V), but you must follow the instructions to make a simple set it based on your battery type. If your battery is not listed in the manual, you can customize settings. Without setup, the voltage will display normally, but the battery capacity will remain at 100%.

3.Is the battery monitor waterproof? What is its waterproof rating?‌

Yes, the battery monitor is waterproof with an IPX7 rating. It can be submerged in water for up to 72 hours even longer without damage.

4.Do 12V lead-acid batteries require manual set?

No, the default setting is for 12V lead-acid batteries, but as the battery aging, you can need to customize settings to make the percentage display more accurate.

• · APPLICATION --- The battery testers can be used for testing battery voltage and capacity for electric motorcycle, motorcycle，golf cart,automotive , car, marine, RV, boat, etc.
• · APPLICABLE BATTERY --- SUPNOVA digital battery monitor is suitable for 7-100V (12v 24v 36v 48v 60v 72v 84v) Ternary lithium battery, lead-acid battery, lithium iron phosphate battery. Default 12 volt lead acid battery .
• · PROTECTION ---·Fully closed shell and IPX7 waterproof ,dustproof it can be used for indoor and outdoor, input reverse connection protectionIt does not generate heat even when used at high voltages for a long time.
• INSTALLATION ---The red wires for the positive and the black wires for the negative. It can use Double-sided adhesive we provided stick the back on the product .The wires length are 15.75 inches .
• Buzzer Alarm&Ttemperature--- The battery monitor can set low and high voltage buzzer alarm and short press"M"key can switch voltage and Memory--The battery tester with power-off memory function,it can retain settings when power is removed.

• Power Source Dc Minimum Operating Voltage 7 volts_of_direct_current Measurement Type Voltmeter Maximum Operating Voltage 100 volts_of_direct_current Compatible Devices Car, Golf Cart, Motorcycle, Boat, Electric Bikes, Medical Equipment, Portable Equipment Style Name Digital Color Blue Item Weight 17.87 g Item Dimensions 2.4 x 1.4 x 0.5 inches Specification Met Ipx7 Unit Count 1 Count Number of Items 1 Number of Packs 1 Included Components NO Part Number DGS-01 Style Digital
