LGA1151 Slocket: Support Core 8/9th CPU and E-2100/E2200 series. If you want to use Vpor function, please check your CPU support Vpro or not.
If you select the option which include RAM or CPU, the CPU and RAM is used, but the quality is in good condition.
Compared to the previous version with four 2.5G ports, several optimizations and upgrades have been made to the original layout.
The main improvements are as follows:
1. Power supply upgraded from 6-phase to 8-phase.
2. Added Vpro function and YiHESZ an Intel i219 Gigabit Ethernet port (not 2.5G).
3. The motherboard uses a Panasonic CR2032 battery.
4. The cooling fan mounting holes have adopted a "ringless design".
5. Three M.2 slots have been added: one on the front and two on the back, totaling four PCIe 3.0 slots.

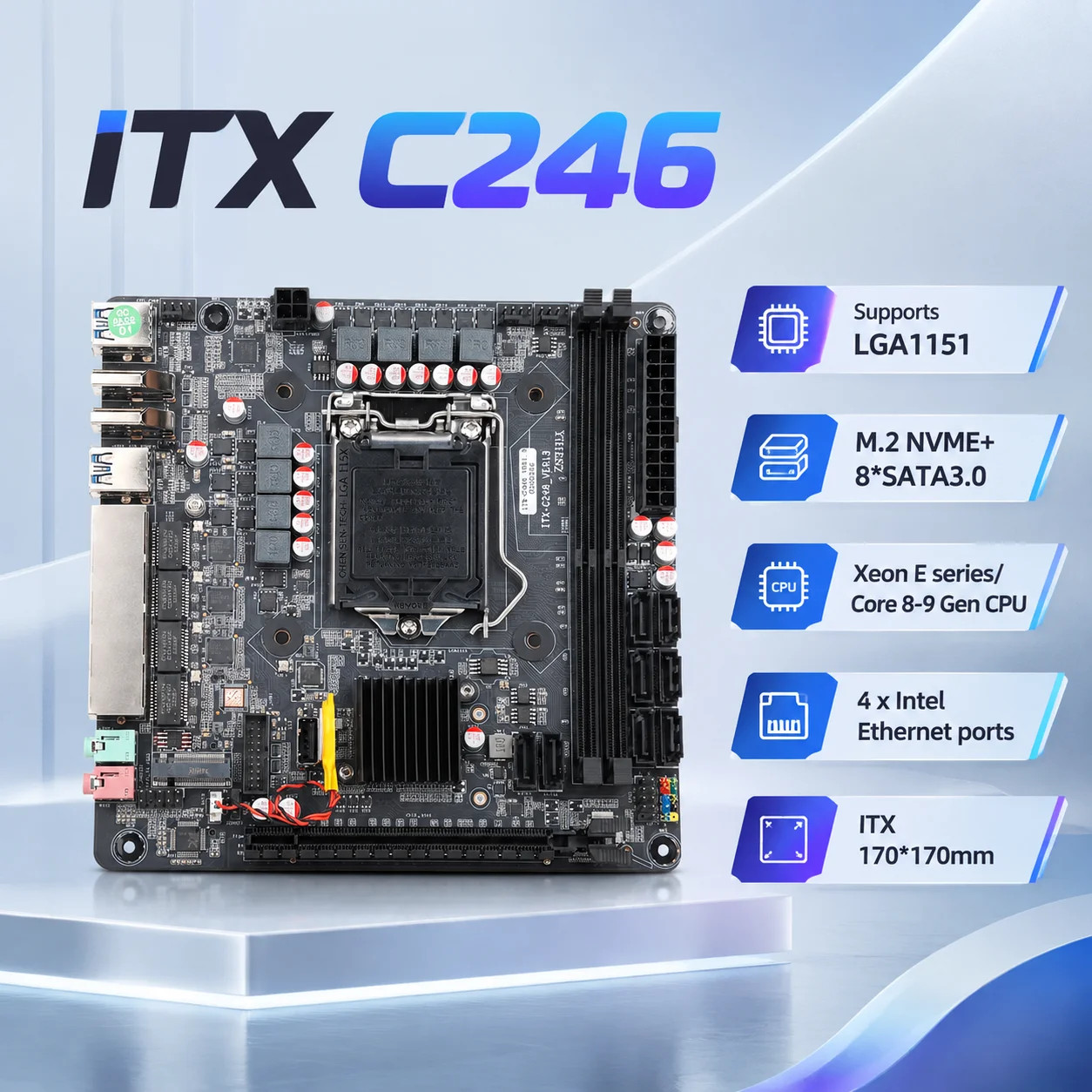

Basic Functions:
- Intel C246 Chipset;
- 1 PCIe 3.0 16X Slot;
- 2 DDR4 Desktop Memory Slots, YHiESZ supporting desktop memory and pure ECC memory;
- 1M.2 (PCIe 3.0 x4) Slots;
- 3 Intel Ethernet Controllers i226-V, 1 Intel i219 Ethernet Port (supports Vpor function);
- 8 SATA 3.0 Ports;
- ATX 24-pin motherboard power + 4-pin CPU power ;
- 170*170 ITX form factor, 8-layer TG150 PCB;
USB Interface/Built-in Pin Header
- 1 USB 3.0 19-pin header
- 1 USB 2.0 built-in interface (for USB boot disk)
- 1 CPU FAN 4-pin (speed adjustable in BIOS)
- 2 SYS FAN 4-pin (speed adjustable in BIOS)
- 1 Power On/Off pin
- 1 Audio pin
- 1 set of Debug LEDs (CPU, Memory, VGA, BOOT)yihesz
Q&A:
1. What fans does the motherboard support?
A: It is compatible with 1151 CPU coolers. Coolers with a 4-hole baseplate are recommended. Coolers with four nuts are not recommended (overtightening the screws may damage the PCB).
2. What memory does the motherboard support?
A: It supports DDR4 desktop memory, up to 2*32GB, 2666MHz (backward compatible).
3. What power supplies does the motherboard support? What is their power consumption?
A: The motherboard requires a 24-pin + 4-pin power supply. There are no specific requirements for size or wattage (based on the overall system configuration). Motherboard power consumption is dynamic and affected by the environment, yihesz temperature, system, testing equipment, and power supply (conversion efficiency). (White, Bronze, Silver, Gold, Platinum, Titanium power supplies have different power consumption values depending on the motherboard). There are no absolute values; actual testing is recommended.
4: Does the motherboard support Wake-on-LAN, VT-d, power-on, and fan speed control?
A: Yes, it supports all of these and can be configured in the BIOS.
5. Is the motherboard new?
A: Yes, it is new.
6. Will the motherboard be tested before shipping?
A: Yes, the motherboards are packaged in boxes of 30. Each motherboard undergoes one test after leaving the production line and another individual test before shipping. Single-piece retail shipments will be packaged in custom reinforced boxes.
7. Is the empty pad on the 19-pin header of the motherboard due to improper machining? yihesz
A: The motherboard has three 2.5G Ethernet ports, and one is shared (if a 2.5G component is used, it's a 2.5G port; if a Vpro component is used, it's a gigabit port). Currently, the motherboard uses a VPOR component.
