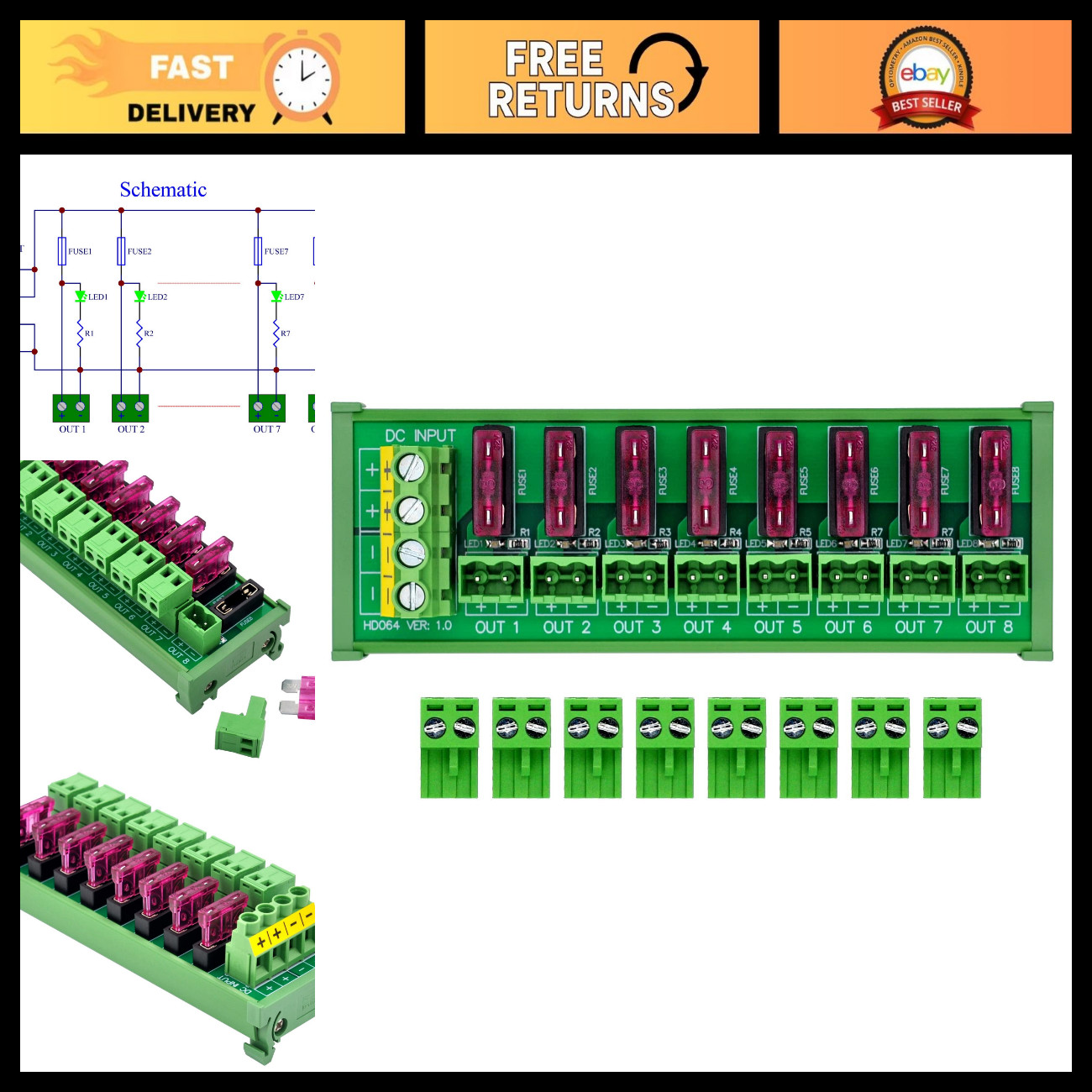

8 Channel DIN Rail Mount Terminal Block Power Distribution Fuse Module 5-32V
Price: US $55.09
Power Distribution Terminal Block
Experience reliable power management with our advanced Power Distribution Terminal Block, designed for efficiency and safety. This versatile device is perfect for various applications, ensuring optimal performance and durability.
Key Features:
Operating Voltage: DC 5 to 32V
Maximum Total Input/Output Current: 20 Amp
Input Specifications:
Maximum current: 20 Amp per position
Double positions (+ and -) for power supply expansion
Pin pitch: 7.62mm (0.3")
Wire size: 26 - 10 AWG
Stripping length: 8mm
Metric M3 slotted screw
Output Specifications:
8 position pluggable top wiring terminal blocks
Maximum current: 3 Amp per position (supports up to 10 Amp with fuse change)
Pin pitch: 5.08mm (0.2")
Wire size: 28 - 12 AWG
Stripping length: 7mm
Metric M2.5 slotted screw
Safety Features:
Pluggable fuse holder compatible with medium blade ATO / ATC fuses
Green LED indicator for each output channel; turns off when fuse is blown or removed
Durable Construction:
High-quality fireproof nylon material for DIN rail mount carrier (supports 35mm rail)
FR-4 fiberglass dual copper layers PCB for enhanced reliability
