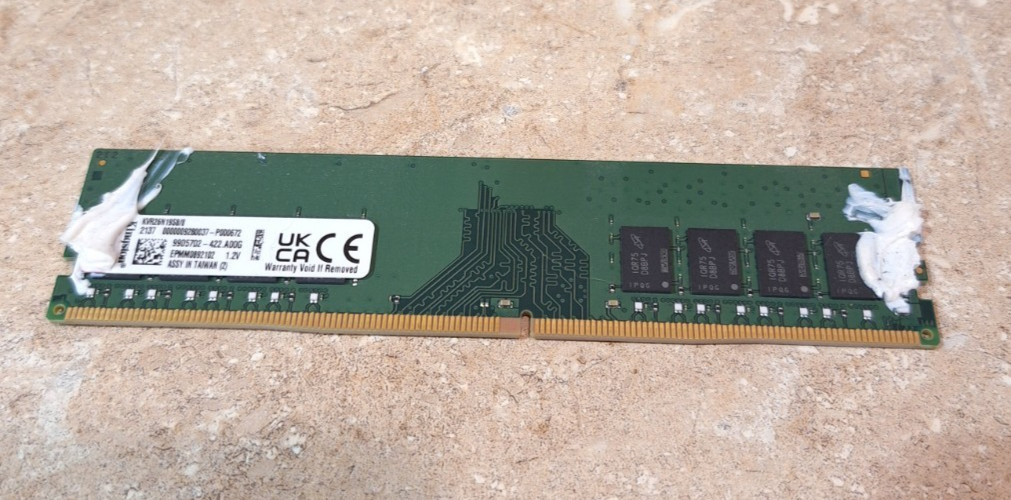

8GB Kingston Memory KVR26N19S8/8 ValueRAM DDR4 8 GB DIMM 288-pin RAM MemoryFREE SHIPPING !! WILL SHIP INTERNATIONALLY !! USED - has some silicon on it but can be removed, in great condition, 100% tested and working, passed MEMTEST86
ValueRAM's KVR26N19S8/8 is a 1G x 64-bit(8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8,memory module, based on eight 1G x 8-bit FBGA components. TheSPD is programmed to JEDEC standard latency DDR4-2666 timing of19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. Theelectrical and mechanical specifications are as follows:• Power Supply: VDD=1.2V Typical• VDDQ = 1.2V Typical• VPP - 2.5V Typical• VDDSPD=2.2V to 3.6V• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals• Low-power auto self refresh (LPASR)• Data bus inversion (DBI) for data bus• On-die VREFDQ generation and calibration• Single-rank• On-board I2 serial presence-detect (SPD) EEPROM• 16 internal banks; 4 groups of 4 banks each• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)• Selectable BC4 or BL8 on-the-fly (OTF)• Fly-by topology• Terminated control command and address bus• PCB: Height 1.23” (31.25mm)• RoHS Compliant and Halogen-FreeCL(IDD)Row Cycle Time (tRCmin)Refresh to Active/RefreshCommand Time (tRFCmin)Row Active Time (tRASmin)Maximum Operating PowerUL RatingOperating TemperatureStorage Temperature19 W*94 V - 00o C to +85o C-55o C to +100o C
