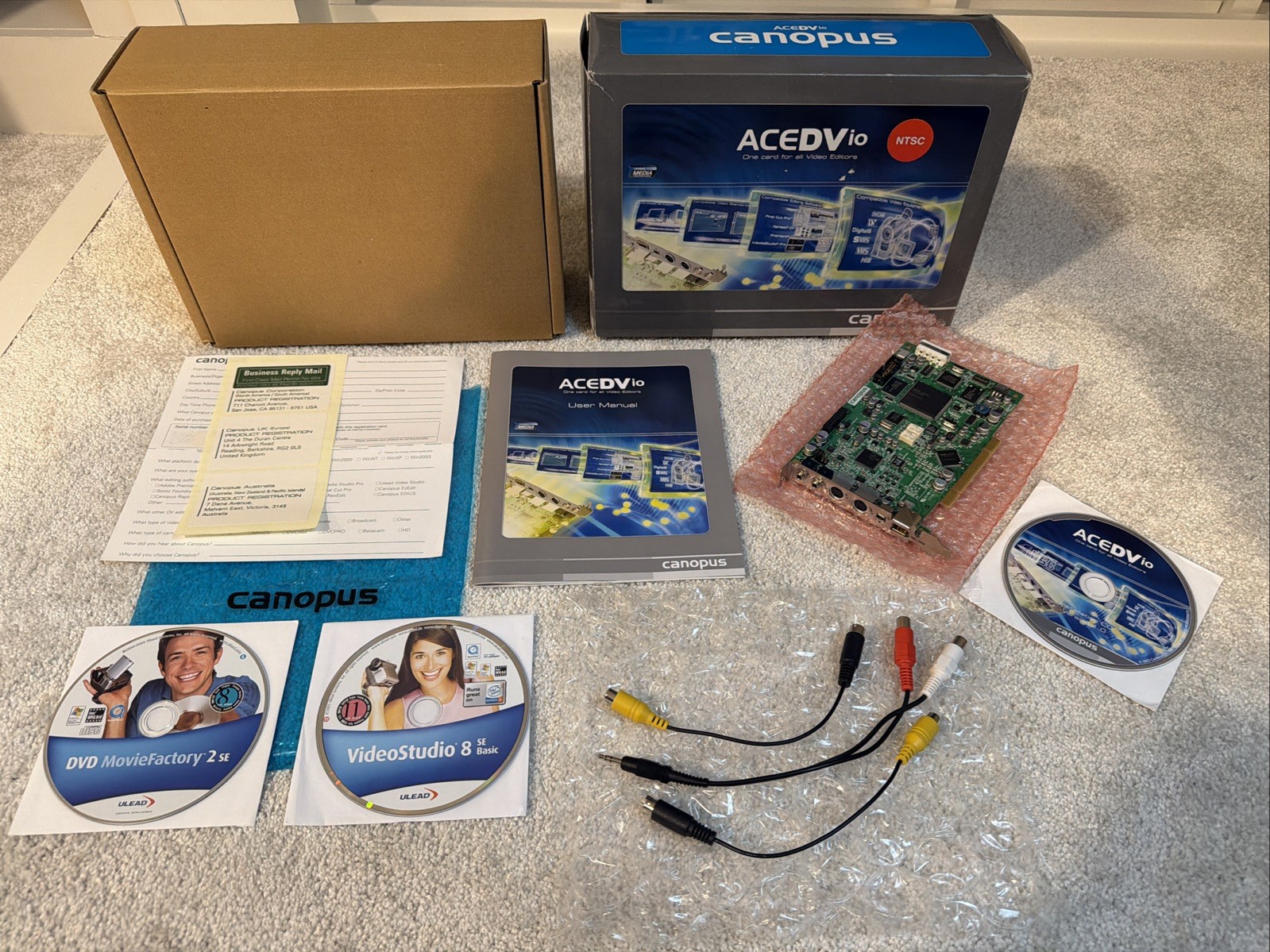

This card is the Canopus ACEDVIO (model U13-PC-211), also known as the Small Cyclone, a specialized video capture and conversion card. It was highly regarded in the early 2000s for its professional-grade video processing.

Core Capabilities:

Analog-to-Digital Conversion: It can take analog signals from sources like VHS players, Hi-8, and S-VHS and digitize them for editing on a computer.

Real-Time DV Capture: It features FireWire (IEEE 1394) ports, allowing for the direct transfer of digital video from DV and DVCAM cameras.

Audio/Video Synchronization: It uses Canopus' "Locked Audio" technology, which ensures that audio and video stay perfectly in sync, even during long captures.

Dual-Way Conversion: The card can also output digital files back to analog formats, making it possible to record edited video back onto a VCR or view it on an analog monitor.

High Compatibility: It is OHCI-compliant, meaning it works with most major video editing software like Adobe Premiere, Vegas, and Final Cut Pro.

Technical Details:

Interface: Connects to a standard PCI slot (32-bit) on older motherboards.

Inputs/Outputs: Typically features a breakout for S-Video, Composite (RCA), and 4-pin/6-pin FireWire ports.

Hardware Codec: Includes a dedicated NEC-based DV codec chip for high-quality, hardware-accelerated processing.

Product Details:

Brand: Canopus

Model Number: U13-PC-211

Device Type: PCI Video Capture / Acquisition Card

Function: It is designed for digital video editing and analog-digital conversion.

Form Factor: High Profile PCI card.

Key Components:

Interface: Features a gold-plated PCI connector for installation into a computer motherboard.

External Ports: Typically includes cinch ports and an S-VHS (S-Video) port for video and stereo audio input/output.

Onboard Chips: The board contains multiple processing chips, including components from NEC and Philips, to handle real-time video effects and filtering.
