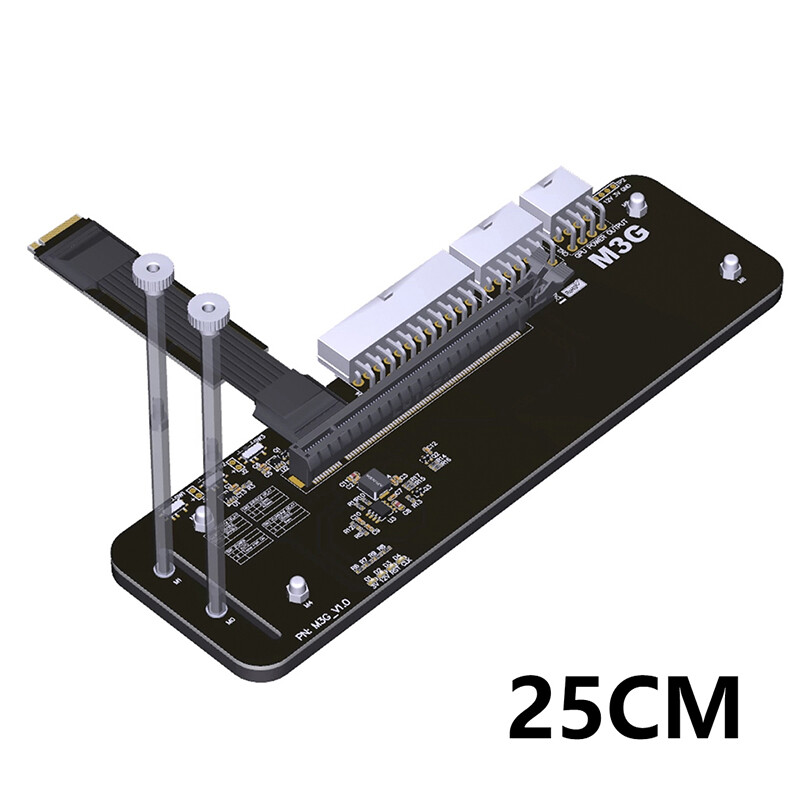

(ADT Link) R3G laptop graphics card external to M.2 nvme PCIe 3.0/4.0x4 docking station
Product model: R3G series products
Wire length: 25cm, 50cm
Motherboard compatibility: Notebook, ITX/STX motherboards, NUC， Only supports M.2 NVMe interface, does not support M.2 SATA interface, does not support M.2
Power Description: Supports standard ATX 500W and above power supply. The power supply needs to be prepared by the buyer themselves.
Product accessories, hexagonal copper pillars and related screws for fixing graphics cards, as well as a single 6P to double 8P graphics card power adapter cable.
What is the difference between models R43SG and R43SG-TU?
Is there any blocking?
completely covered by electromagnetic interference shielding of conductive polymers to prevent incident or outgoing emissions of electromagnetic frequencies, minimize interference and performance degradation, and reduce the weight of the extender.
Is it soft?
Support standard ATX power supply of 500W or above.
The CPU 4P power supply is located in the lower left corner, and the motherboard 24P power supply is located in the upper right corner. Please install it properly.
SW2, PERST # signal delay switch, with 1support it, please switch to 1.
paired with eGPU software for graphics card compatibility optimization. Currently, the software does not support it, please switch to 1.
causes a delay of approximately 2.2 seconds, inserting a 2.2u capacitor causes a delay of approximately 5 seconds, and so on.
by ADT R3G?
At present,normally as shown in the following figure.
past three years. It is necessary to install the latest version of the Nvidia official website driver. If a yellow exclamation mark appears, please
If the yellow exclamation mark (error code 43 or error code 12) still appears, please refer to the of ADT R3G is not on?
support the CLKREQ signal. If the CLKREQ signal light does not light up, you can turn off the PCIE power-saving function in the system or BIOS
Purchase precautions:
This product is an external graphics card adapter device, and the graphics card needs to be purchased separately.
What is the quality of the wire?
The wiring method for ATX power supply is shown in the following figure: (recommended for ATX power supply above 500W), plug the graphics card power cord of
J1, PERST # signalIs there any way to use it normally?
card driver is installed? The display adapter in the device manager has a yellow exclamation mark! How to solve it
equipment. When inserting the cable, first hold the device's socket and then plug it in to avoid forcefully disconnecting the socket pins. Bending and
2. The signal driving capabilities and other conditions of various motherboards and devices are not the same. Our store's test results do not guarantee
3. Graphics cards or motherboards are electronic devices that will age and oxidize over time, and connecting extension cords will only make them more
4. Unable to provide product installation technical guidance, please inquire with the external graphics card group on your own.
consistency with yours. As long as an extension cable is connected, there will be signal loss. For those who require perfection, please do not purchase.
system by yourself. If you cannot confirm, please do not purchase.
