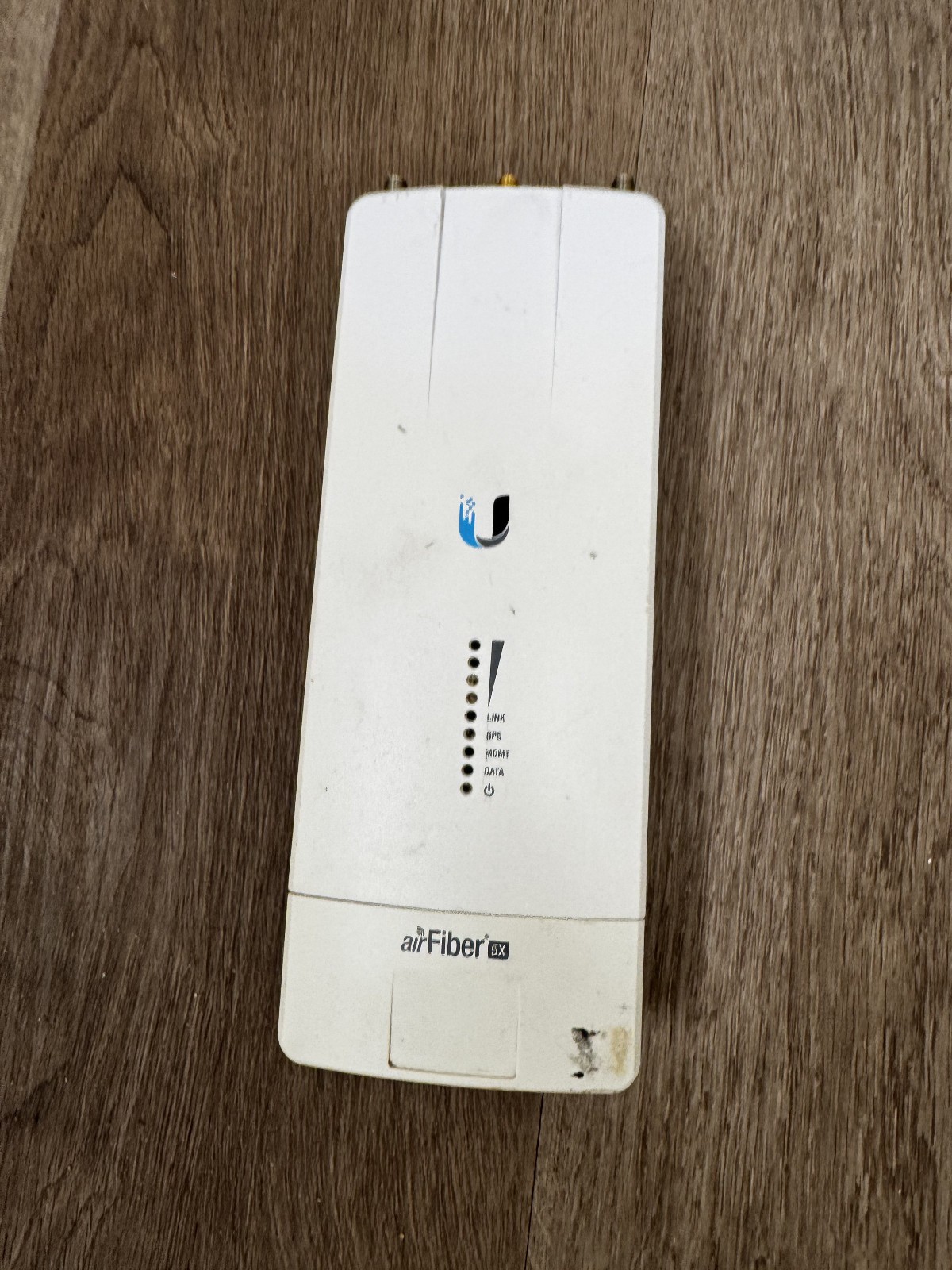

The AF-5X is a high-performance outdoor wireless backhaul radio designed for long-distance point-to-point links. It operates in the 5 GHz band and delivers 500+ Mbps real throughput with GPS synchronization and flexible channel-width configuration.
Key Features:
5 GHz carrier-class point-to-point wireless radio
500+ Mbps real throughput
Gigabit Ethernet data port
Separate 10/100 Ethernet management port
10/20/30/40/50 MHz selectable channel widths
GPS synchronization
Up to 1+ million packets per second
128-bit AES encryption
Master/Slave wireless operating modes
Passive PoE powered
Maximum TX power up to 26 dBm, depending on regulatory region
Two weatherproof RP-SMA RF connectors
External GPS antenna connection
Compatible with Ubiquiti airFiber X antennas and supported RocketDish configurations
Compact outdoor design
Operating temperature: -40°F to 131°F
Dimensions: 8.82 × 3.23 × 1.89 inches
Radio weight: approximately 0.77 lbs
This listing is for the original AF-5X model, not the AF-5XHD.
This is used professional wireless networking equipment and may show normal cosmetic signs of outdoor installation and use. Please review the listing photos for the condition of the actual unit.
We are an MSP/WISP. Units vary in outside yellowing condition, but all units have been checked for functionality.
