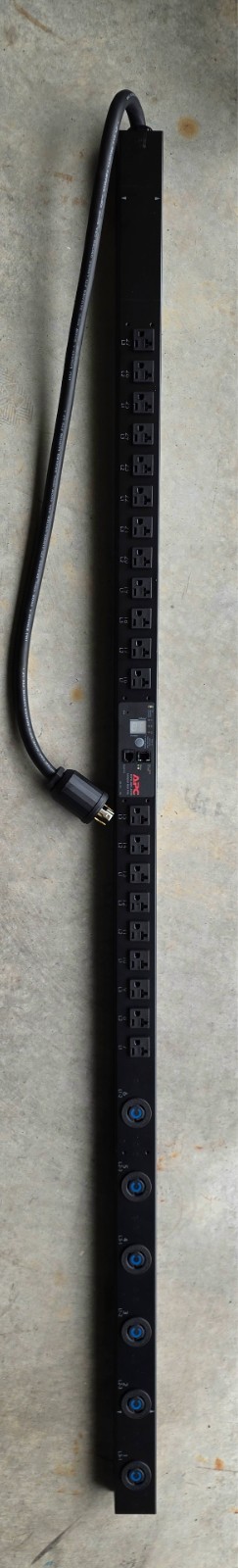

The APC AP7863 Metered Rack PDU is a high-quality power distribution panel designed for APC products, specifically compatible with 208V systems. This unit features passive cooling, surge protection, and remote monitoring capabilities, making it ideal for use in server rooms or data centers. With a maximum input current of 20 A and being rack mountable, it offers a reliable and efficient solution for power distribution and protection in a networking environment.

SKU: PDU-APC-AP7863 | Type: 0U vertical, metered power distribution unit for multi-voltage racks (120/208 V, 3-phase). The AP7863 delivers up to 5.7 kVA with a local digital meter for load visibility and a mixed-receptacle layout to power both 120 V and 208 V gear in the same cabinet.

• Mixed outlets: 21 × NEMA 5-20R (T-slot; accepts 5-15P/5-20P) + 6 × NEMA L6-20R for 208 V equipment.
• Input: 208 V 3-phase Wye, L21-20P locking plug, 3 ft (0.9 m) cord.
• Metered visibility: Front digital ammeter displays real-time load (per PDU/phase) to help prevent overloads.
• Zero-U vertical mount: Preserves rack U-space; includes toolless mounting hardware and brackets.
• Data center ready: UL/cUL listed, FCC Class A; 0–45 °C operating, 0–95% RH (non-condensing).

Technical Specifications — AP7863ParameterDetailPDU TypeMetered, Zero-U vertical (0U)Input208 V 3-phase (Wye), NEMA L21-20P; cord length 3 ft (0.9 m)CurrentInput current limit 20 A; line rated current 16 AOutput Voltage120 V and 208 VOutlets21 × NEMA 5-20R | 6 × NEMA L6-20R (total 27)Load Capacity5,700 VA (5.7 kW)Frequency50/60 HzDimensions (H × W × D)70.00 × 2.20 × 1.73 in (1778 × 56 × 44 mm)Net Weight12.02 lb (5.45 kg) | Ship wt. ~19.49 lb (8.84 kg)Included HardwareToolless mounting kit, rack brackets, installation guide, user manualCertificationsUL 60950-1, cUL, FCC Class A, ICES-003EnvironmentOperating: 32–113 °F (0–45 °C), 0–95% RH; Storage: −13–149 °F (−25–65 °C)
