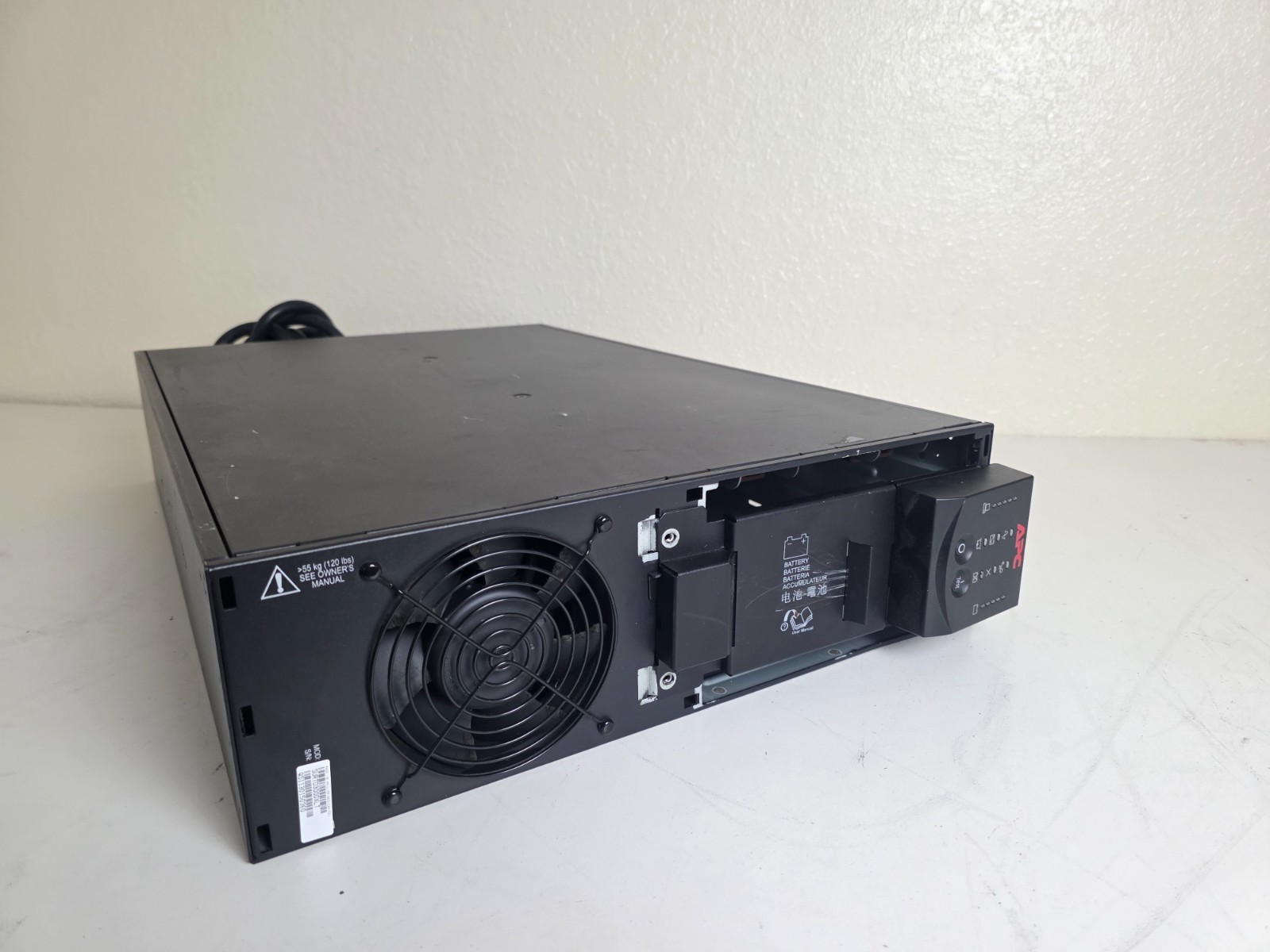

This APC Smart-UPS RT 3000VA On-Line UPS (Model SURTD3000XLT) is guaranteed to be in good working and physical condition with normal cosmetic wear.

It was tested with the following notes from our testing technician:

• Unit powers on successfully and passes self-test.
• Note: Battery pack, internal wiring, and front bezel are NOT included.

Features & Specs:

• Model: SURTD3000XLT
• Series: Smart-UPS RT 3000VA On-Line
• Topology: Double-Conversion Online
• Input/Output Voltage: 120V AC
• Power & Electrical Specifications
  • Capacity: 3000 VA / 2700 Watts
  • Topology: Double Conversion On-Line (Pure Sine Wave)
  • Input Voltage: 208V AC single phase (40–70 Hz auto-sensing)
  • Input Connection (Plug): NEMA L6-20P with a 10-foot cord
  • Output Voltage: 208V AC
  • Output Connections (Outlets): 2 x NEMA L6-20R and 1 x NEMA L6-30R
  • Surge Energy Rating: 340 Joules
  Battery & Runtime
  • Battery Type: Lead-Acid (User-replaceable cartridge APCRBC152)
  • Recharge Time: 3 hours typical
  • Backup/Run Time: Approx. 4 minutes at full load (2700W); over 10 minutes at half load
  Physical & Environmental Characteristics
  • Form Factor: Tower / Rack-mountable (support feet included)
  • Dimensions (H x W x D): 17.0" x 3.35" x 25.0" (432 x 85 x 635 mm)
  • Weight: 69.0 lbs (31.3 kg)
  • Color: Black
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  Management & Compliance
  • Interface Ports: USB, RJ-45 Serial, and SmartSlot
  • Included Software: PowerChute
  • Certifications: ENERGY STAR, UL 1778, FCC Part 15 Class A, RoHS APC SURTD3000XLT UPS Chassis

  Does Not Include:

  • Battery pack or internal battery wiring
  • Front Bezel
  • Power cords or accessories

  Condition Note: Tested and functional unit. Sold as chassis only without battery pack, internal wiring, or front bezel.
