Model: SYBT5

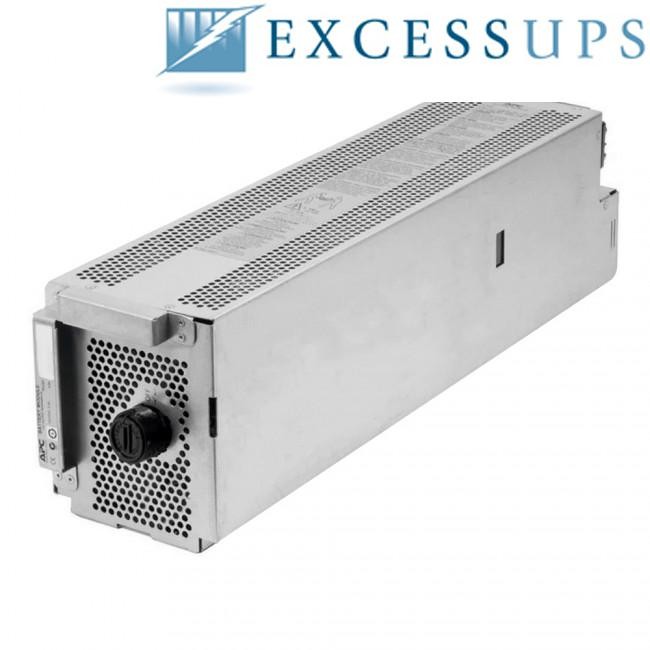

Model Description: APC Symmetra LX Battery Module SYBT5
Case Manufacturer: APC (system pull - refurbished)
Condition: Fresh new batteries installed, refurbished battery module, reset, clean case
Warranty: 1 Year Replacement Warranty
Includes: 1x SYBT5 - Plug and Play installation. No assembly of the battery pack is required
Compatibility: APC Symmetra LX UPS systems, APC Symmetra LX Extended Run Rack systems, Symmetra LX Power Array (120V configurations), compatible Symmetra LX modular UPS battery frames
Lifetime Expectancy: 3-5 Years
Description: APC SYBT5 Symmetra LX Battery Module is a hot-swappable replacement battery cartridge designed for APC Symmetra LX UPS systems, featuring a 120V sealed lead-acid battery configuration with 10 battery blocks per string, delivering reliable backup performance for critical power environments, fully refurbished with a clean enclosure and newly installed high-quality batteries to ensure optimal runtime and performance, built for plug-and-play installation with no assembly required, allowing quick and easy replacement in existing systems, ideal for maintaining uptime in enterprise and data center applications, backed by a 1-year replacement warranty
APC Symmetra LX 120V Battery Module SYBT5 - User Manual
SYBT5 - APC Symmetra PX Battery Module Specifications:Main:
Number of Rack Unit
0U
Number of Cables
1.0
Battery Type
Lead-Acid battery
Product Type
Battery module (power cartridge)
Installation Type
Plug-and-play hot-swappable battery cartridge
Replacement Type
Hot-swappable module
Maintenance
No assembly required
Batteries & Runtime:
Battery Placement
Internal Battery
Battery Blocks per String
10
Battery Slots Empty
0
Included Battery Modules
0
Device Mounting
Enclosed battery cartridge
Battery Voltage
120V
RBC Quantity
1
Runtime Support
Extended runtime via Symmetra LX system configuration
Physical:
Height
5.51 in (14 cm)
Width
8.27 in (21 cm)
Depth
21.50 in (54.6 cm)
Net Weight
64.15 lb(US) (29.1 kg)
Mounting Mode
Not rack-mountable
USB Compatible
No
Conformance:
Product Certifications
CSA
Standards
UL 1778
Environmental:
Ambient Air Temperature for Operation
32…104°F (0…40°C)
Operating Altitude
0...10000 ft
Relative Humidity
0…95%
Ambient Air Temperature for Storage
5…113°F (-15…45°C)
Storage Altitude
0…15000 ft (0.00…4572.00 m)
Storage Relative Humidity
0…95%
