Product Description

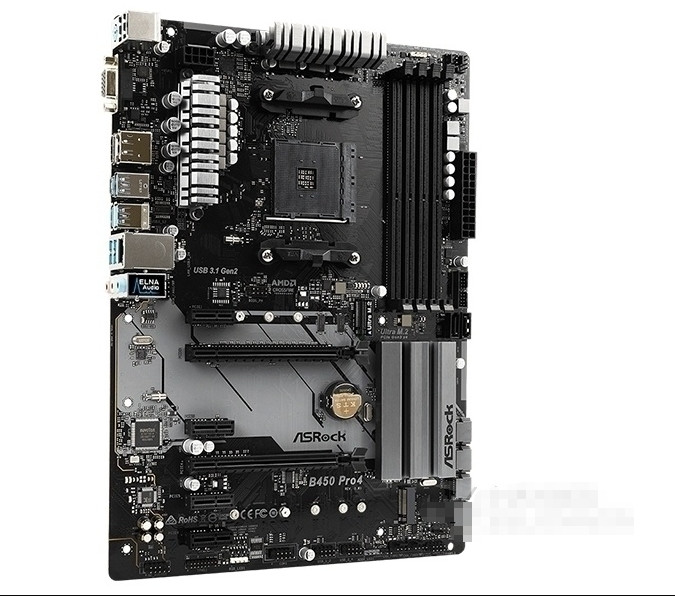

Model: ASRock B450 PRO4 Form Factor: ATX (305mm × 244mm)

CPU

• Socket: AMD AM4
• Supported CPUs: AMD Ryzen 2000 / 3000 / 4000 G-Series / 5000 / 5000 G-Series Desktop Processors
• 9-phase Digi Power VRM design
• Max CPU TDP: 105W

Chipset

• AMD B450 Promontory Chipset

Memory

• 4 × DDR4 DIMM slots, Max 64GB
• Dual Channel, ECC & Non-ECC Unbuffered memory
• Native: 2133 / 2400 / 2667 / 2933 MHz; OC up to DDR4 3200+ MHz
• AMD EXPO & XMP 2.0 memory profile support

Expansion Slots

• 2 × PCIe 3.0 x16 (AMD Quad CrossFireX support)
• 4 × PCIe 2.0 x1

Storage

• 6 × SATA3 6Gb/s ports
• 1 × Ultra M.2 (M-Key 2280): PCIe Gen3 x4 NVMe SSD
• 1 × M.2 Socket (PCIe Gen3 x2 & SATA3 SSD)
• Supports NVMe boot

Onboard Graphics (Only for Ryzen APU)

• 1 × D-Sub (VGA)
• 1 × HDMI
• 1 × DisplayPort 1.2

Audio

• 7.1 CH HD Audio, Realtek ALC892 Audio CODEC
• ELNA premium audio capacitors

Network

• 1 × Realtek RTL8111H Gigabit LAN (10/100/1000 Mbps)
• Wake-On-LAN, ESD protection, PXE boot support

USB

Rear I/O:

• 1 × USB 3.1 Gen2 Type-A
• 1 × USB 3.1 Gen2 Type-C
• 4 × USB 3.1 Gen1 Type-A
• 2 × USB2.0

Internal Headers:

• 1 × USB3.1 Gen1 header (2 ports)
• 1 × USB2.0 header (2 ports)

Rear I/O Panel

• 1 × PS/2 combo port (Keyboard/Mouse)
• 1 × D-Sub, 1 × HDMI, 1 × DisplayPort 1.2
• 1 × RJ45 Gigabit LAN
• 3 × Audio Jacks (7.1CH HD Audio)
• 1×USB3.1 Gen2 Type-A,1×USB3.1 Gen2 Type-C,4×USB3.1 Gen1,2×USB2.0

Power & Fan Headers

• 1 × 24-pin ATX main power
• 1 × 8-pin ATX 12V CPU power
• Multiple 4-pin PWM fan headers

BIOS & Features

• UEFI AMI BIOS, 128Mb Flash ROM
• ASRock Instant Flash
• Supports Windows 10 / Windows 11 64-bit
