Item description

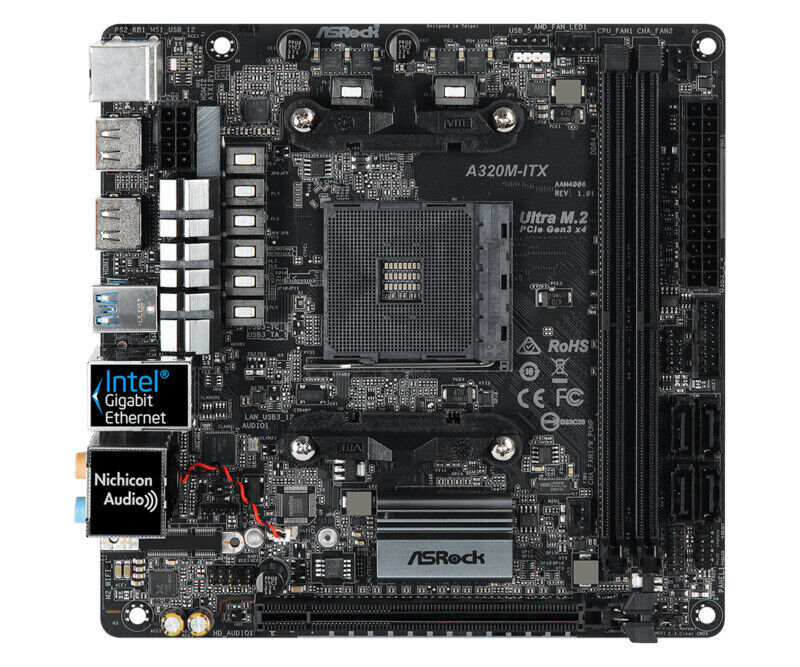

ASRock A320M-ITX Motherboard AMD A320 Socket AM4 D4 M.2 Mini-ITX HDMI for Ryzen
Exclusive features
ASRock Super Alloy
- Advanced Inductance
- Dual-N MOS
- Nichicon 12k Black Capacitor (Original Japanese High Quality High Conductive Solid Capacitor)
- Black Matte PCB
- High density moisture proof fiber circuit board
- 2 oz copper PCB board
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Protection (supports all USB, audio, network interfaces)
ASRock Instant Update & App Market
CPU
- Supports AMD AM4 socket A-series APUs (Bristol Ridge) and Ryzen processors (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)
- Digitally powered
Chipset
- AMD Promontory A320
RAM
- Dual channel DDR4 memory technology
- 2 x DDR4 memory slots
- AMD Ryzen series processors (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*
- AMD Ryzen series processors (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*
- AMD Ryzen series processors (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 (non-ECC), un-buffered memory*
- AMD Ryzen series processors (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & (non-ECC), un-buffered memory*
- AMD Ryzen series processors (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 (non-ECC), un-buffered memory*
- AMD 7th Generation A-series APUs support DDR4 2400 / 2133 (non-ECC), un-buffered memory*
- Maximum system memory capacity: 32GB**
- DIMM sockets feature 15µ gold plated headers*
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Support "Plug and Play"
- Compliant with ACPI 5.1, supports Wake Up Events
- Support jumper-free
- Support SMBIOS 2.3
- CPU, DRAM, PCH 1.05V, PROM 2.5V, voltage multi-function regulator
Onboard graphics card
- Integrated AMD Radeon™ HD Vega series graphics cores on Ryzen series APUs*
- Integrated AMD Radeon™ HD R-series graphics cores on A-series APUs*
- DirectX 12, Pixel Shader 5.0
- Shared memory defaults to 2GB. Supports up to 16GB of shared memory. **
- Supports 2 x HDMI 1.4, up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Supports HDMI 1.4 port auto-sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) (requires HDMI compatible monitor)
- Supports HDCP 1.4 via HDMI 1.4 port
- Supports 1080p Blu-ray Disc (BD) HD playback via HDMI 1.4 port
*Actual level of support depends on CPU
**To get up to 16GB of shared memory requires 32GB of system memory installed.
Sound effect
- 7.1 channel high definition audio with content protection function (Realtek ALC1220 audio codec)
- Support high quality Blu-ray sound
- Support anti-surge
- Nichicon Fine Gold Professional Audio Capacitor
- 120dB SNR D/A converter with differential amplifier
- Pure power
- Direct drive technology
- PCB isolation shield
- Automatic impedance detection for rear audio
- Layered routing of left and right channels
local area network
- Gigabit LAN 10/100/1000 Mb/s
- GigaLAN Intel® I211AT
- Support Wake-On-LAN function
- Support anti-lightning/anti-ESD static electricity
- Supports Energy Efficient Ethernet 802.3az
- Support PXE
Expansion slot
AMD Ryzen series processors (Matisse, Summit Ridge and Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)*
AMD 7th Generation A-Series APU / Raven Ridge Processors
- 1 x PCI Express 3.0 x16 slot (PCIE1: x8 mode)*
AMD Ryzen series processors (Picasso, Raven Ridge)
- 1 x PCI Express 3.0 x16 slot (PCIE1: x8 mode)*
AMD Athlon series processors
- 1 x PCI Express 3.0 x16 slot (PCIE1: x4 mode)*
*Support NVMe SSD boot
Storage
- 4 x SATA3 6.0 Gb/s ports, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and hot plug
- 1 x Super M.2 connector, supports M Key 2280 type M.2 SATA3 6.0 Gb/s and M.2 PCIe modules to Gen3 x4 (32 Gb/s) (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge ) or Gen3 x2 (16 Gb/s) (A-series APUs and Athlon-series APUs)*
*Support NVMe SSD boot
Onboard interface
- 1 x LPC header
- 1 x AMD Fan LED Header*
- 1 x CPU Fan Connector ((4-pin))**
- 1 x Chassis Fan Connector ((4-pin))***
- 1 x Chassis/Water Pump Fan Connector ((4-pin)) (Smart Fan Speed Control)***
- 1 x 24-pin ATX power connector
- 1 x 8-pin 12V Power Connector (High Density Power Connector)
- 1 x front panel audio jack
- 1 x AMD LED Fan USB Header
- 1 x USB 2.0 header (supports 2 USB 2.0 ports) (supports ESD protection)
- 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) (supports ESD protection)
*AMD Fan LED header can support up to 12V/3A (36W) and RGB LED strips up to 2.5 meters long.
**CPU fan connector supports up to 1A (12W) power supply.
***The case/water pump fan supports up to 1.5A (18W) water cooling fan.
I/O port on the rear panel
- 1 x PS/2 keyboard/mouse port
- 2 x HDMI ports
- 1 x Optical SPDIF digital audio output port
- 2 x USB 2.0 ports (supports ESD protection)
- 1 x USB 3.1 Gen1 Type A Connector (supports ESD protection)
- 1 x USB 3.1 Gen1 Type-C port (supports ESD protection)
- 2 x USB 3.1 Gen1 ports (supports ESD protection)
- 1 x RJ-45 network interface with indicator lights (action/connection indicator and speed indicator)
- HD Audio Jacks: Rear / Center / Bass / Line In / Front / Mic
Dimensions
- Mini-ITX Dimensions: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
Included
1 x motherboard.
2 x SATA II cables.
1 x I/O shield.
