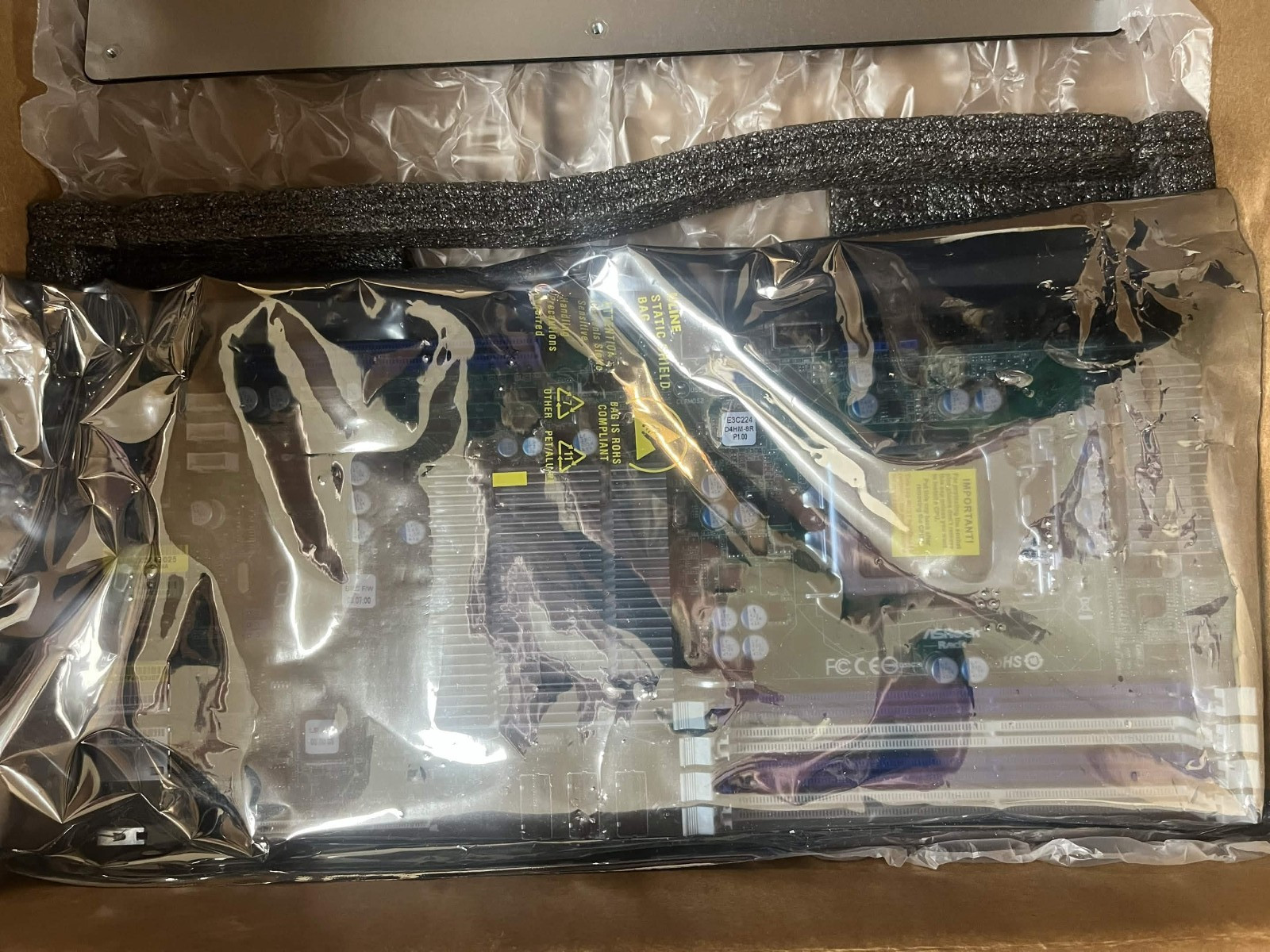

LGA 1150 Intel Socket Half-Width Server MotherboardFEATURES - Half-width, 13 x 5.96"
- Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i3/Pentium/Celeron Processors (Socket 1150)
- 4 x DIMM DDR3 1600/1333 ECC, max. 32GB
- 1 x PCIe 3.0 x16
- 4 x SATA3 from mini SAS connector by Intel C224 support RAID 0, 1, 5, 10
- 8 x SAS2 from two mini SAS connector by LSI2308
- 2 x Intel i210, support Dual GLAN
- ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
- 3 x USB 3.0 ports (2 via header + 1 rear)
- 3 x USB 2.0 ports (2 via header + 1 Type A)Motherboard Physical StatsForm FactorHalf WidthDimensions13 x 5.96" (33 x 15.1cm)Processor SystemCPU
- Supports New 4th and 4th Generation Intel® XeonE3-1200 v3 / Core™ i3/Pentium/Celeron Processors (Socket 1150)
- Supports Hyper-Threading Technology
SocketSingle Socket H3 (LGA 1150)ChipsetIntel® C224System MemoryCapacity- 4 x 240-pin DDR3 DIMM slots
- Support up to 32GB DDR3 ECC DIMM
Type- Dual Channel DDR3 Memory technology
- Supports DDR3 1600/1333 ECC DIMM
Voltage1.5V, 1.35VExpansion SlotPCIe 3.0 x 161 SlotStorageSATA ControllerIntel® C224: 4 x SATA3 6.0Gbps (from mini SAS connector). Supports RAID 0, 1, 5, 10 and Intel® Rapid StorageSAS ControllerLSI 2308: 8 x SAS2 6Gbps (from two mini SAS 8087 connector)EthernetInterfaceGigabit LAN 10 / 100 / 1000MbpsLAN Controller- 2 x Intel® i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
ManagementBMC ControllerASPEED AST2300: IPMI (Intelligent Platform Management Interface) 2.0 with iKVM supportIPMI Dedicated LAN1 x Realtek RTL8211E for dedicated management LANFeatures- Watch Dog
- 2 x RJ45 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
UID Button/UID LED1 x Button + 1 x LEDInternal ConnectorCOM Port Header1 (COM1)Front Lan LED Connector1Auxiliary Panel Header1 (include chassis intrusion, location button & LED, front LAN LED)IPMB Header1Buzzer1Fan Header5 x 4-pinATX Power1 (24-pin) + 1 (8-pin)USB 3.0 Header1 (each supports two USB 3.0)USB 2.0 Header1 (each supports two USB 2.0)Type A USB 2.0 Port1NMI Button1Speaker1Dr. Debug with LED1System BIOSBIOS Type64Mb AMI UEFI Legal BIOSBIOS Features- Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash
Hardware MonitorTemperature- CPU Temperature Sensing
- System Temperature Sensing
Fan- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
VoltageVoltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSBSupport OSOperating SystemsMicrosoft Windows- Server 2008 R2 (x64)
- Server 2012 (x64)
- Server 2012 R2 (x64)
Linux- RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64)
- CentOS 5.5 / 6.4 (x32 and x64)
- SUSE Enterprise Linux Server 11 SP1 (x32 and x64)
- FreeBSD 9.1 (x32 / x64)
- Fedora core 18 (x64)
- UBuntu 12.04 / 12.10 (x64)
Virtual- VMWare ESXi 5.5 (Marvell SE9172 has no driver can support temperature: 50 - 95°F (10 - 35°C)
Non-operating temperature: -40 - 158°F (-40 - 70°C)
|
|
