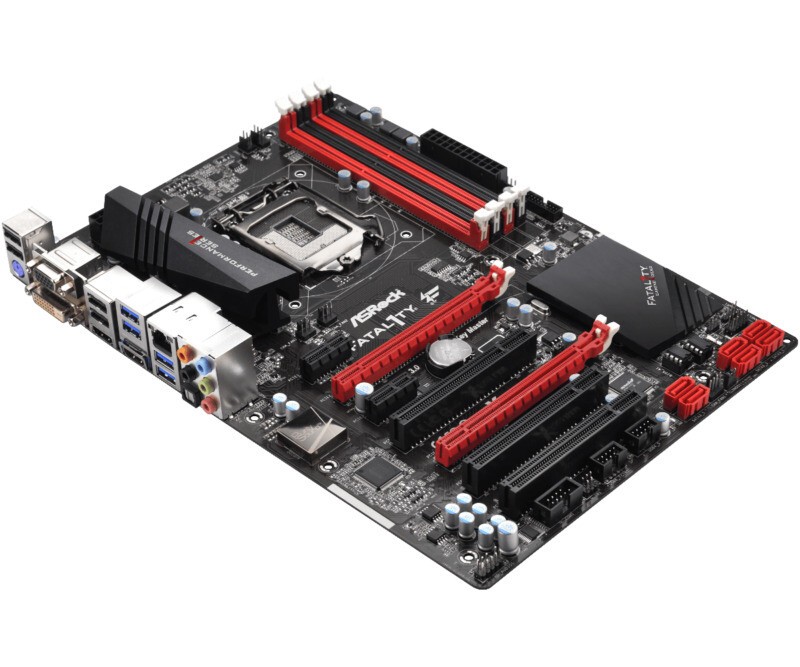

Description

2x sata cable(free gift).

1 xI/O back panel.

The above pictures are for reference only.

itemintroduction

CPU

- Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)

- Digi Power Design

- 8 Power Phase Design

- Supports Intel® Turbo Boost 2.0 Technology

Chipset

- Intel® H87

- Supports Intel® Small Business Advantage 2.0

Memory

- Dual Channel DDR3/DDR3L memory technology

- 4 x DDR3/DDR3L DIMM slots

- Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory

- Max. capacity of system memory: 32GB*

- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

- Distortion-Free Slot

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

- 2 x 64Mb AMI UEFI Legal BIOS with Multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)

- Supports Secure Backup UEFI Technology

- ACPI 1.1 Compliance Wake Up Events

- SMBIOS 2.3.1 Support

- CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment

Graphics

- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600

- Pixel Shader 5.0, DirectX 11.1

- Max. shared memory 512MB*

- Multi Graphics Output Options: D-Sub, DVI-D and HDMI

- Supports Triple Monitor

- Supports HDMI Technology with max. resolution up to 4K x 2K (4096x2304) @ 24Hz

- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)

- Supports HDCP function with DVI-D and HDMI ports

- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI ports

*The size of maximum shared memory may vary from different operating systems.

**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)

- Premium Blu-ray audio support

- Supports Purity Sound™

- 115dB SNR DAC with differential amplifier

- TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)

- Direct Drive Technology

- EMI shielding cover

- PCB isolate shielding

- Supports DTS Connect

LAN

- Gigabit LAN 10/100/1000 Mb/s

- Giga PHY Intel® I217V

- Supports Intel® Remote Wake Technology

- Supports Wake-On-LAN

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Slots

- 1 x PCI Express 3.0 x16 slot (PCIE2: x16 mode)

- 1 x PCI Express 2.0 x16 slot (PCIE4: x4 mode)

- 2 x PCI Express 2.0 x1 slots

- 3 x PCI slots

- Supports AMD Quad CrossFireX™ and CrossFireX™

*If PCIE1 or PCIE3 slot is occupied, PCIE4 slot will run at x2 mode.

Storage

- 6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 12 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug

Connector

- 1 x IR header

- 1 x COM Port header

- 1 x Power LED header

- 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)

- 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)

- 1 x Power Fan connector (3-pin)

- 1 x 24 pin ATX power connector

- 1 x 8 pin 12V power connector

- 1 x Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

- 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)

Rear Panel I/O

I/O Panel

- 1 x PS/2 Mouse/Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI-Out Port

- 1 x HDMI-In Port

- 1 x Optical SPDIF Out Port

- 3 x USB 2.0 Ports

- 1 x Fatal1ty Mouse Port (USB 2.0)

- 4 x USB 3.1 Gen1 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Form Factor

- ATX Form Factor

- ASRock DuraCap (2.5 x longer life time) (100% Japan made high quality conductive polymer capacitors)

OS

- Microsoft® Windows® 10 64-bit / 8 / 8 64-bit / 7 / 7 64-bit doing our best to ensure items quality and our service.
